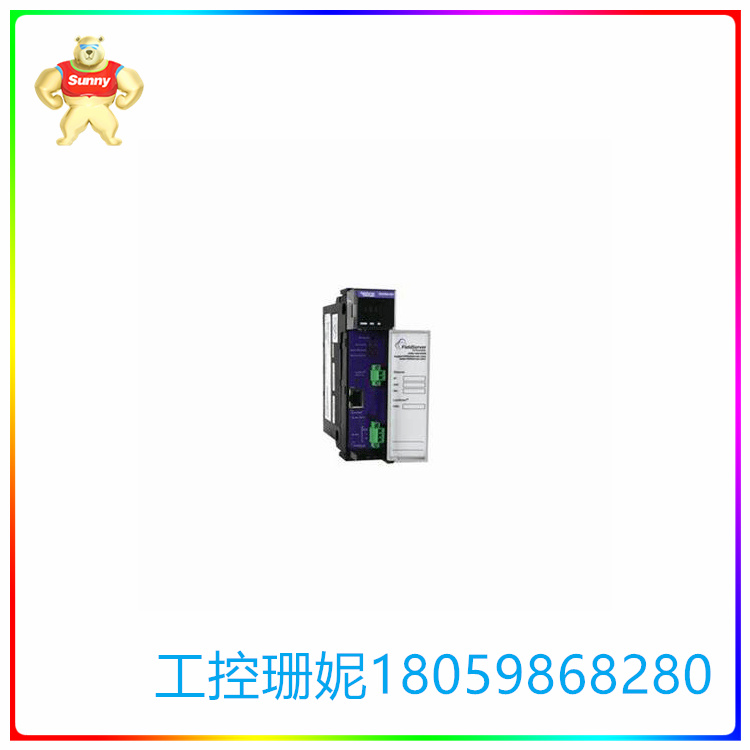

PROSOFT PS56-BAS-019 通信接口

【产品详情】

槽位服务器ControlLogix Metesys N2通信接口

模块

·可从各种通信模块中选择

ControlLogix®平台

·Prosoft®通信模块采用Allen-Bradley®

授权背板技术

·使用现有Studio 5000®集成到您的系统中

(以前的RSLogix™5000)编程软件

SlotServer ControlLogix Metasys

N2通过JCI通信接口允许Allen Bradley

ControlLogix平台在ControlLogix CPU和江森自控Metasys N2之间传递数据

网络。Metasys N2 SlotServer可以配置为使能Metasys Slave或使能Metasys Master

Metasys Master设备(如NCM, N-30, NAE或NIE)之间的信息交换

从设备，如UNT, VMA, DX9100, VAV或AHU

SlotServer模块的物理配置是插入标准的ControlLogix机架

为1756平台使用标准的RSLogix消息块读取，以允许有效的传输

大数据块。具体配置数据包含在“configuration”CSV文件中

下载到模块。

SlotServer是一种灵活的通信模块，可以配置为广域网通信

广泛的FieldServer技术协议库中发现的一系列协议。的

SlotServer被ControlLogix识别为输入/输出模块，并具有访问处理器的权限

用于处理器和模块之间数据传输的存储器。

Metasys N2

FieldServer Technologies多年来一直是Metasys网关的领导者，并取得了成功

将Metasys N2与各种楼宇自动化和过程控制相连接。

将相同的接口技术用于SlotServer以提供ControlLogix

通信接口，可以作为主设备或从设备连接到各种Metasys N2设备。SlotServer for

Metasys N2还具有广泛的内存基础，使其能够接口到3000个地址。

SlotServers也可用于其他楼宇自动化控制协议和最常见的火灾报警控制面板协议。为

有关具体协议的信息，请参阅具体协议的数据表。

请联系ProSoft Technology了解更多关于SlotServer的信息，以及可满足您特定需求的特定协议。

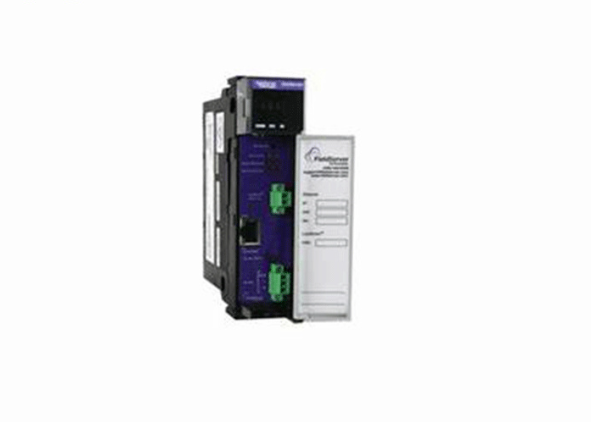

PROSOFT PS56-BAS-019 通信接口

【英文介绍】

Slot Server ControlLogix Metesys N2 Communication Interface

Module

· Choose from various communication modules for the

ControlLogix® platform

· Prosoft® communication module use Allen-Bradley®

licensed backplane technology

· Integrate into your system using existing Studio 5000®

(formerly RSLogix™ 5000) programming software

The SlotServer ControlLogix Metasys

N2 by JCI Communications Interface allows an Allen Bradley

ControlLogix platform to pass data between a ControlLogix CPU and Johnson Controls Metasys N2

networks.  The Metasys N2 SlotServer can be configured as a Metasys Slave or Master enabling

exchange of information between Metasys Master devices such as NCM, N-30, NAE or NIE) or

Metasys Slave devices such as UNT, VMA, DX9100, VAV or AHU

Physically configured to plug into a standard ControlLogix rack, the SlotServer Module is configured

for the 1756 platform using standard RSLogix message block reads to allow for efficient transfer of

large blocks of data.  Specific configuration data is contained in the Configuration CSV file

downloaded to the module.

SlotServer is a flexible communications module that can be configured to communicate to a wide

range of protocols found in the extensive FieldServer Technologies library of protocols.  The

SlotServer is recognized as an input/output module by ControlLogix and has access to processor

memory for data transfer between processor and module.

Metasys N2

FieldServer Technologies has been a leader in Metasys Gateways for many years, successfully

interfacing Metasys N2 to a wide variety of building automation and process controls.

This same interface technology is put to use with the SlotServer to provide a ControlLogix

Communications Interface that can interface to a wide variety of Metasys N2 devices as a Master or a Slave device.  The SlotServer for

Metasys N2 also has an extensive memory base enabling it to interface to 3000 addresses.

SlotServers are also available for other building automation control protocols and most common fire alarm control panel protocols.  For

information about the specific protocol, please refer to the datasheet for that specific protocol.

Contact ProSoft Technology to learn more about the SlotServer and the specific protocols available to meet your specific needs.
