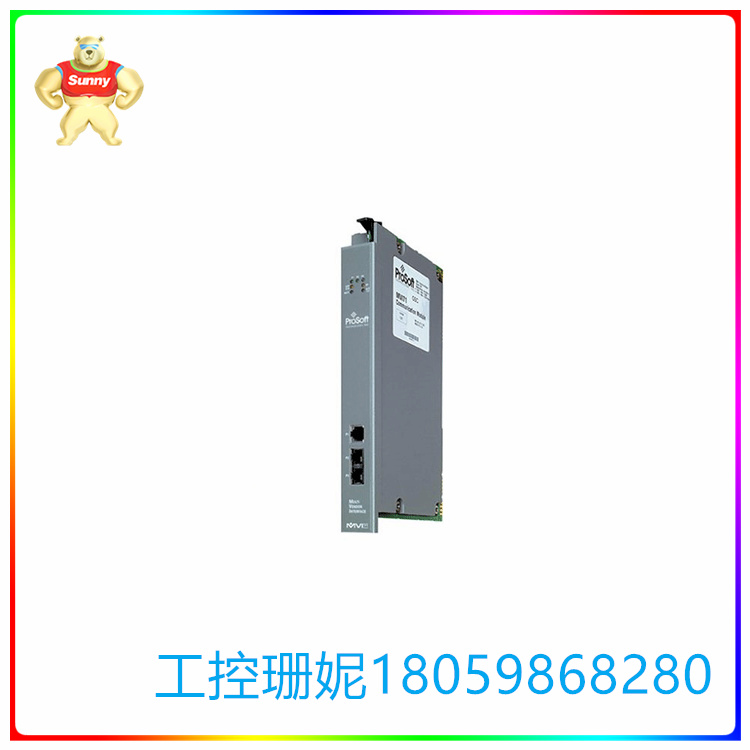

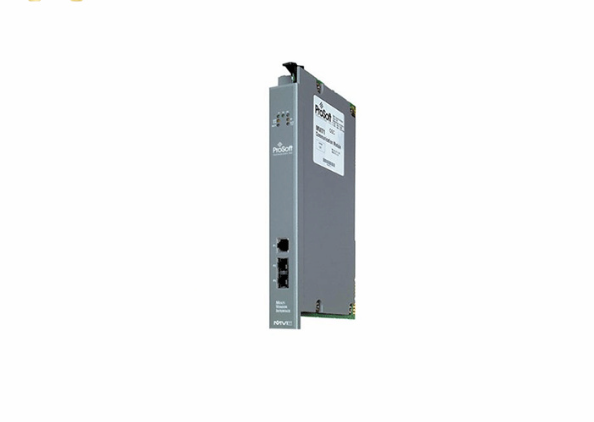

ProSoft MVI71-DFCM 通信接口模块 数据集中器
【产品详情】
通信接口模块
MVI71-DFCM
MVI71-DFCM模块是许多人的理想解决方案需要DF1协议连接的应用程序添加到PLC平台。MVI71-DFCM模块可以可以在许多工业部门和以下部门找到
应用程序:
•外部设备数据集中器
•SCADA系统管道和海上平台
•食品加工
•矿业
•纸浆和纸张
主/从沟通模块
MVI71-DFCM
MVI71 DF1主从通信模块为PLC背板兼容模块,允许罗克韦尔自动化PLC I/O兼容处理器来接口容易与DF1协议兼容的设备和主机。通常支持该协议的设备包括罗克韦尔自动化plc和电源监测设备,以及其他几个三分之一市场上的派对设备。
特点和优点
MVI71-DFCM主从通信
模块允许罗克韦尔自动化PLC I/O兼容处理器可以轻松地与其他DF1协议接口兼容的设备。兼容的设备不仅包括罗克韦尔自动化plc(都支持DF1)协议),但也有各种各样的终端设备。该模块有两个串口支持DF1协议,每个端口用户可配置作为一个主人或奴隶。模块间的数据传输PLC处理器与DF1是异步的网络,使用模块的内部数据库在处理器和DF1之间交换数据网络。
通用规范
•单槽- 1771背板兼容
•模块被识别为输入/输出
模块,可以访问处理器内存处理器和模块之间的数据传输
•梯形逻辑用于数据之间的传输模块和处理器。包括示例梯子文件。
•从配置文本中获取配置数据
ProSoft MVI71-DFCM 通信接口模块 数据集中器
【英文介绍】
Communication interface module
MVI71-DFCM
The MVI71-DFCM module is the ideal solution for many people who need the DF1 protocol to add applications to the PLC platform. The MVI71-DFCM module can be found in many industrial sectors and the following sectors
Application program:
• External device data concentrator
SCADA system pipelines and offshore platforms
• Food processing
• Mining
• Pulp and paper
Master/slave communication module
MVI71-DFCM
The MVI71 DF1 master-slave communication module is a PLC backplane compatible module that allows Rockwell Automation PLC I/O compatible processors to interface with devices and hosts that are easily compatible with the DF1 protocol. Devices that typically support the protocol include Rockwell Automation PLCS and power monitoring equipment, as well as several other party equipment on the third of the market.
Features and advantages
MVI71-DFCM Master/slave communication
The module allows Rockwell Automation PLC I/O compatible processors to easily interface compatible devices with other DF1 protocols. Compatible devices include not only Rockwell Automation plc(which both support the DF1 protocol), but also a wide variety of end devices. The module has two serial ports that support the DF1 protocol, and the user can configure each port as a master or slave. The PLC processor and DF1 are asynchronous networks that use the module's internal database to exchange data between the processor and DF1.
General specification
• Single slot - 1771 backplane compatible
• Modules are identified as input/output
Modules that can access processor memory transfer data between processors and modules
• Ladder logic is used for data transfer between modules and processors. Includes sample ladder files.
• Obtain the configuration data from the configuration text
