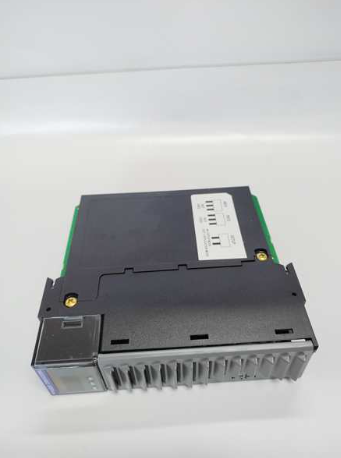

MVI56E-MNETXT  增强型通信模块 以太网端口

【产品详情】

MVI56E Modbus TCP/IP 客户端/服务器增强型通信模块允许罗克韦尔自动化 ControlLogix 处理器轻松与 Modicon 可编程自动化控制器 （PAC） 和各种兼容 Modbus TCP/IP 的仪器和设备连接。

MVI56E 增强功能包括通过模块的以太网端口进行本地和远程配置和诊断、用于桥接罗克韦尔自动化 ControlNet 和 EtherNetIP 网络的 CIPconnect 技术，以及用于访问模块文档和示例程序文件的板载 Web 服务器。

MVI56E-MNET 和 MVI56E-MNETXT 在功能上相同。MVI56E-MNET专为标准过程应用而设计。MVI56E-MNETXT 专为 Logix-XT 控制平台而设计，使其能够在极端环境、更高的工作温度下运行，并具有保形涂层以保护其免受恶劣或腐蚀性条件的影响。

特点和优势

向后兼容性

升级早期的MVI56-MNET模块，无需更改现有的梯形图逻辑程序或模块配置

增强的功能和灵活性，而不会产生昂贵的重新编程成本

适用于极端环境（仅限MVI56E-MNETXT）

符合 EN60079-0 和 EN60079-15 标准，适用于腐蚀性和极端温度环境

可在 -25° 至 70° C（-13° 至 158° F）的极端温度下工作

保形涂层可防止腐蚀性或腐蚀性环境因素

RSLogix 5000 集成

模块通信集成在 RSLogix 5000 中，使用示例附加指令 （AOI） 或示例梯形逻辑文件

图形用户界面软件

ProSoft Configuration Builder 软件 （PCB） 使用高速以太网端口提供在线或离线配置和诊断

支持 CIPconnect，允许使用罗克韦尔自动化 1756-ENxT 和 1756-CNB 网络接口模块跨多个桥接的 EtherNet/IP 和 ControlNet 网络进行远程配置和数字访问

支持 Web 的以太网端口，带发现服务

模块以太网端口提供了一个 Web 服务器，用于本地访问文档、模块状态和固件更新软件

ProSoft Discovery Service，一个软件实用程序，用于在网络上定位 MVI56E 模块并分配临时 IP 地址以便于配置

MVI56E-MNETXT  增强型通信模块 以太网端口

【英文介绍】

The MVI56E Modbus TCP/IP client/Server Enhanced communication module allows Rockwell Automation ControlLogix processors to easily connect with Modicon Programmable Automation Controllers (PACs) and a wide range of Modbus TCP/IP compatible instruments and devices.

MVI56E enhancements include local and remote configuration and diagnostics via the module's Ethernet port, CIPconnect technology for bridging Rockwell Automation ControlNet and EtherNetIP networks, and an onboard Web server for accessing module documentation and sample program files.

The MVI56E-MNET and MVI56E-MNETXT are functionally identical. MVI56E-MNET is designed for standard process applications. The MVI56E-MNETXT is designed for Logix-XT control platforms, enabling them to operate in extreme environments, at higher operating temperatures, and with conformance coatings to protect them from harsh or corrosive conditions.

Characteristics and advantages

Backward compatibility

Upgrade earlier MVI56-MNET modules without changing existing ladder logic programs or module configurations

Enhanced functionality and flexibility without costly reprogramming costs

Suitable for extreme environments (MVI56E-MNETXT only)

In accordance with EN60079-0 and EN60079-15, suitable for corrosive and extreme temperature environments

It can operate in extreme temperatures from -25° to 70° C (-13° to 158° F)

Conformal coatings protect against corrosive or corrosive environmental factors

RSLogix 5000 integration

Module communication is integrated in RSLogix 5000, using Sample Additional Instructions (AOI) or sample ladder logic files

Graphical user interface software

ProSoft Configuration Builder software (PCB) provides online or offline configuration and diagnostics using high-speed Ethernet ports

CIPconnect support allows remote configuration and digital access across multiple bridge EtherNet/IP and ControlNet networks using Rockwell Automation 1756-ENxT and 1756-CNB network interface modules

Web-based Ethernet port with discovery service

The module Ethernet port provides a Web server for local access to documentation, module status, and firmware update software

ProSoft Discovery Service, a software utility for locating MVI56E modules on the network and assigning temporary IP addresses for easy configuration

MVI56E-MNETXT  增强型通信模块 以太网端口
