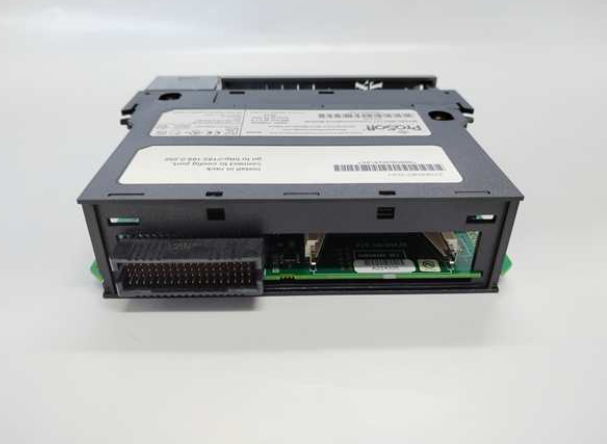

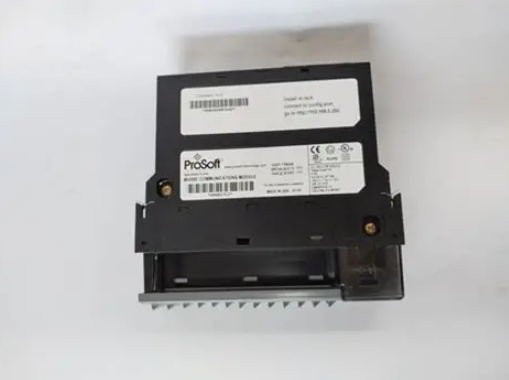

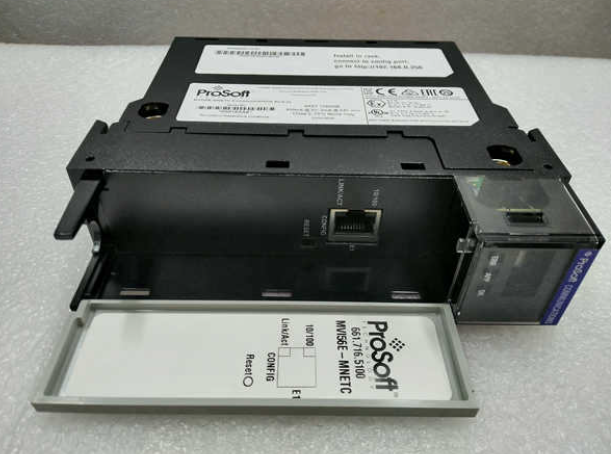

MVI56E-MNETCXT 控制多台服务器 以太网端口

【产品详情】

多客户机模块

在Modbus TCP/IP上控制多台服务器时提高了性能

网络，支持多达30个客户端。它还支持多达20个服务器

连接提供了与其他DCS和SCADA通信的能力

系统。客户机和服务器功能可以同时运行，从而允许

该模块作为一个强大的数据集中器运行。

MVI56E-MNETC和mvi56e - mnetext功能相同。的

MVI56E-MNETC专为标准工艺应用而设计。MVI56EMNETCXT专为Logix-XT™控制平台设计，使其能够运行

在极端环境下。它可以承受更高的工作温度，并且具有

保形涂层保护其免受恶劣或腐蚀性条件的影响。

MVI56E增强包括配置和管理

模块的以太网端口，以及CIPconnect®桥接技术

ControlNet™和以太网/IP™网络。

通用规范

·向后兼容以前的MVI56-MNETC版本

·支持单槽位1756 ControlLogix背板

10/ 100mbps自动交叉检测以太网配置和应用端口

用户可定义的模块数据内存映射多达10,000个16位寄存器

•cipconnect支持的网络配置和诊断监控使用

ControlLogix 1756-ENxT和1756-CNB模块

·支持ProSoft Configuration Builder (PCB)软件，基于windows

图形用户界面提供简单的产品和网络配置

数据传输使用阶梯逻辑和附加指令(AOI)样本

模块与处理器之间

4个字符，字母数字，滚动LED显示状态和诊断数据

简单的英语-没有神秘的错误或警报代码破译

·ProSoft Discovery Service (PDS)软件用于定位模块上的位置

网络和分配临时IP地址

·个性模块-使用的非易失性工业级Compact Flash (CF)卡

存储网络和模块配置以便于灾难恢复，允许

通过传输CF卡快速现场更换产品

MVI56E-MNETCXT 控制多台服务器 以太网端口

【英文介绍】

The multi-client module

improves performance when controlling multiple servers on a Modbus TCP/IP

network, by supporting up to 30 Clients.  It also supports up to 20 server

connections providing the ability to communicate with other DCS and SCADA

systems.  Both client and server functionality can run simultaneously, allowing

the module to operate as a powerful data concentrator.

The MVI56E-MNETC and MVI56E-MNETCXT are functionally the same.  The

MVI56E-MNETC is designed for standard process applications.  The MVI56EMNETCXT is designed for the Logix-XT™ control platform, allowing it to operate

in extreme environments.  It tolerates higher operating temperatures, and has a

conformal coating to protect it from harsh or caustic conditions.

MVI56E enhancements include configuration and management through the

module’s Ethernet port, and CIPconnect® technology for bridging though

ControlNet™ and EtherNet/IP™ networks.

General Specifications

 Backward compatible with previous MVI56-MNETC versions

 Single-slot 1756 ControlLogix backplane compatible

 10/100 Mbps auto crossover detection Ethernet configuration and application port

 User-definable module data memory mapping of up to 10,000 16-bit registers

 CIPconnect-enabled network configuration and diagnostics monitoring using

ControlLogix 1756-ENxT and 1756-CNB modules

 ProSoft Configuration Builder (PCB) software supported, a Windows-based

graphical user interface providing simple product and network configuration

 Sample ladder logic and Add-On Instructions (AOI) are used for data transfer

between module and processor

 4-character, alpha-numeric, scrolling LED display of status and diagnostics data in

plain English – no cryptic error or alarm codes to decipher

 ProSoft Discovery Service (PDS) software used to locate the module on the

network and assign temporary IP address

 Personality Module - a non-volatile industrial-grade Compact Flash (CF) card used

to store network and module configuration for easy disaster recovery, allowing

quick in-the-field product replacement by transferring the CF card
