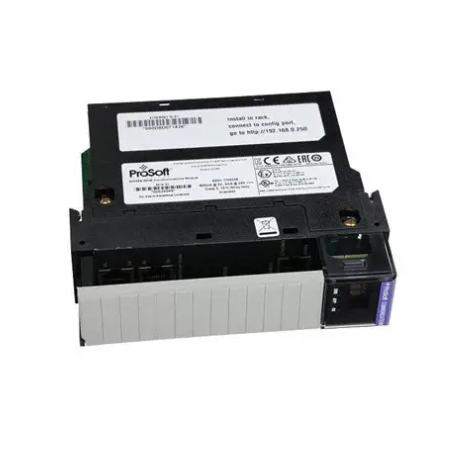

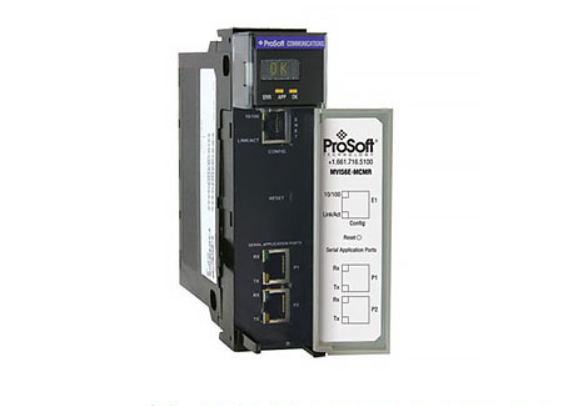

MVI56E-FLN 控制网络增强通信模块 非易失性紧凑型闪存
【产品详情】
MVI56E-FLN FA 控制网络增强型通信模块是一种单插槽解决方案,允许兼容 ControlLogix 的处理器轻松与其他 FL-net 协议设备连接。该模块经过认证,可与 JEMA(日本电气制造商协会)定义的标准 FA 控制网络的 FL-net 2.00 版 (OPCN-2) 一起使用。
MVI56E-FLN 模块充当 FL-net 网络和 ControlLogix 背板之间的网关。来自 ControlLogix 处理器的数据传输与 FL-net 网络上的操作是异步的。
MVI56E-FLN模块接受命令来控制和监控存储在其数据库中的数据。该数据通过背板在模块和 ControlLogix 处理器之间传递,用于自动化和控制应用。
特点和优势
RSLogix 5000 集成
模块配置和通信集成在 RSLogix 5000 中
无需额外的编程或配置软件
个性模块
集成了非易失性紧凑型闪存,用于存储模块的设置和网络配置数据(或个性)。
只需更换个性模块(用于灾难恢复)即可恢复模块,无需使用 PC 或重新配置。
内置 Web 服务器的以太网端口
模块以太网端口提供内置 Web 服务器,用于访问模块状态和更新模块固件。
可通过以太网端口访问本地和远程诊断
规格
一般规格
单插槽,兼容 1756 背板
该模块显示为 ControlLogix® (CLX) 处理器的输入/输出模块
梯形图逻辑用于模块和处理器之间的数据传输(CD 中包含示例梯形图文件)
可安装在本地或远程 CLX 机架中
功能规格 MVI56E-FLN
消息传输命令函数
日志数据读取服务(服务器功能)
日志数据清除服务(服务器功能)
网络参数读取(服务器功能)
返回消息(服务器功能)
配置文件读取(服务器功能)
网络管理表:根据 FL-net 2.00 版规范
自有节点管理表:根据 FL-net 2.00 版规范
参与节点管理表:根据 FL-net 2.00 版规范
最多 249 个用户数据节点
发现服务:允许 ProSoft Configuration Builder(或单独的实用程序)查找和显示位于网络上的产品,这些产品具有关键产品属性,如名称、序列号和 IP 地址。
LED 显示屏:LED 为模块、背板通信和网络状况提供详细、简单的英文诊断和错误信息。
无主令牌控制方法。
以太网 UDP/IP 上的 FA 链路协议
循环数据传输:支持虚拟内存区域 1(512 字)和区域 2(8192 字)。循环数据映射到模块 I/O 区域。
可配置的映射功能:优化来自网络的输入数据映射
可配置的最小帧间隔时间(0 到 50,每个单元等于 100 ms)
可配置令牌看门狗时间(1 ms 至 255 ms)
MVI56E-FLN 控制网络增强通信模块 非易失性紧凑型闪存
【英文介绍】
The MVI56E-FLN FA Control Network Enhanced Communication Module is a single-slot solution that allows ControlloGIx-compatible processors to easily connect with other FL-net protocol devices. The module is certified for use with FL-net Version 2.00 (OPCN-2) of the standard FA control network defined by JEMA (Japan Electrical Manufacturers Association).
The MVI56E-FLN module acts as a gateway between the FL-net network and the ControlLogix backplane. Data transfer from the ControlLogix processor is asynchronous with operations on the FL-net network.
The MVI56E-FLN module receives commands to control and monitor the data stored in its database. This data is passed between the module and the ControlLogix processor via a backplane for automation and control applications.
Characteristics and advantages
RSLogix 5000 integration
Module configuration and communication are integrated in RSLogix 5000
No additional programming or configuration software is required
Personality module
Integrated non-volatile compact flash memory for storing the module's Settings and network configuration data (or personality).
The module can be recovered by simply replacing the personality module (for disaster recovery) without the use of a PC or reconfiguration.
Ethernet port for the built-in Web server
The module Ethernet port provides a built-in Web server for accessing module status and updating module firmware.
Access to local and remote diagnostics via Ethernet ports
specification
General specification
Single slot, compatible with 1756 backplane
This module appears as an input/output module for the ControlLogix® (CLX) processor
Ladder diagram logic for data transfer between modules and processors (sample ladder diagram files are included in the CD)
Can be installed in local or remote CLX racks
Function Specification MVI56E-FLN
Message transfer command function
Log data reading service (server function)
Log Data Cleanup Service (Server function)
Network parameter reading (server function)
Return message (server function)
Configuration file reading (server function)
Network management table: According to FL-net version 2.00 specification
Own node management table: According to FL-net version 2.00 specification
Participating node management table: According to FL-net version 2.00 specification
Up to 249 user data nodes
Discovery Service: Allows ProSoft Configuration Builder (or a separate utility) to find and display products located on a network that have key product attributes such as name, serial number, and IP address.
LED Display: leds provide detailed, simple diagnostics and error information in English for module, backplane communication and network status.
No master token control method.
Ethernet FA Link protocol over UDP/IP
Cyclic data transfer: Supports virtual memory region 1 (512 words) and Region 2 (8192 words). The loop data is mapped to the module I/O region.
Configurable mapping capabilities: Optimize the mapping of input data from the network
Configurable minimum frame interval time (0 to 50, equal to 100 ms per cell)
Configurable token watchdog time (1 ms to 255 ms)
