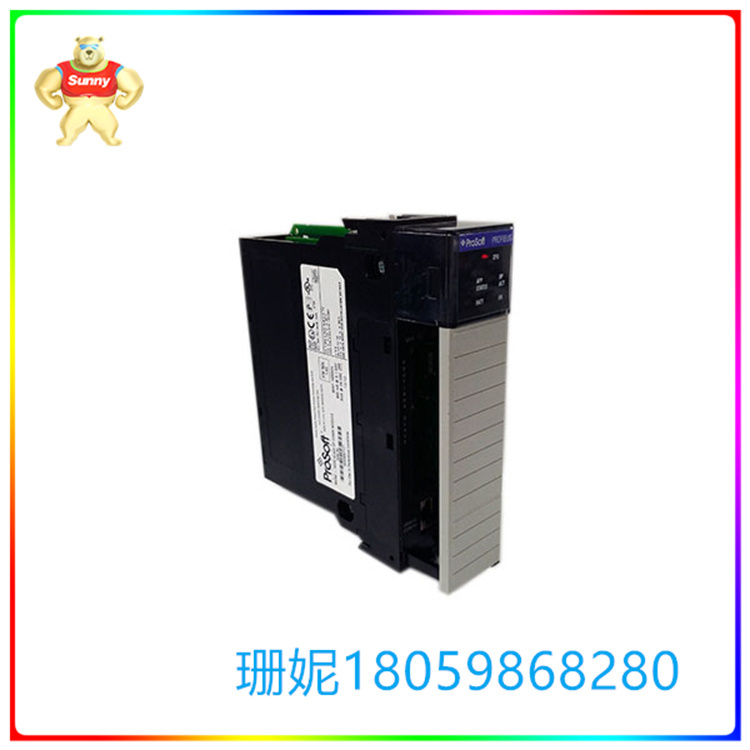

MVI56E-DNPNET 以太网模块

【产品详情】

MVI56E-DNPNET 是由 Allen-Bradley 制造的 DNP3 以太网模块。ProSoft MVI56E-DNPNET 以太网模块是 ProSoft DNP3 以太网模块系列的一部分。ProSoft MVI56E-DNPNET 以太网模块在背板电流负载的 5 V 直流电压下具有 800 mA、最大 20,000 个模拟输入、5,000 个最大模拟输出、30 G 操作冲击、1000 个计数器、1 个插槽、8000 个二进制输入和 8000 个二进制输出。附加指令设计用于在 ProSoft MVI56E-DNPNET 以太网模块和处理器之间传输数据。

如果用户在远程机架中安装 ProSoft MVI56E-DNPNET 以太网模块，并且希望将设置引脚保持跳线状态。用户检查跳线的正确位置后，建议将 ProSoft MVI56E-DNPNET 以太网模块插入 ControlLogix 机箱。为了防止未知设备尝试连接到 ProSoft MVI56E-DNPNET 以太网模块，用户可以提供可以访问以太网模块的专有 IP 地址列表。ProSoft MVI56E-DNPNET 以太网模块在 ProSoft MVI56E-DNPNET 以太网模块正面的 LED 状态指示灯中提供有关故障排除和诊断的信息，这些指示灯提供有关以太网模块状态的信息。ProSoft MVI56E-DNPNET 以太网模块中的状态数据可以通过以太网端口在 ProSoft Configuration Builder 中查看。

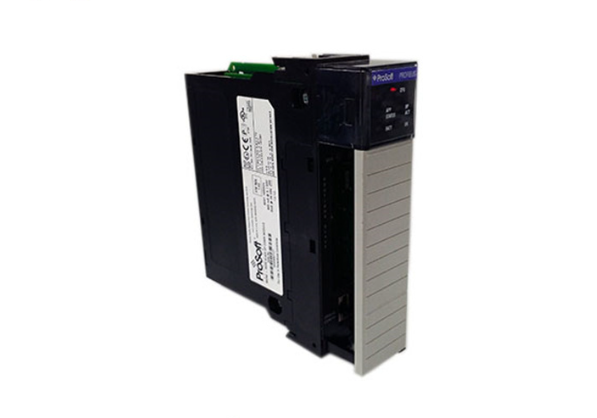

MVI56E-DNPNET 以太网模块

【英文介绍】

The MVI56E-DNPNET is a DNP3 Ethernet module manufactured by Allen-Bradley. The ProSoft MVI56E-DNPNET Ethernet module is part of the ProSoft DNP3 Ethernet module family. The ProSoft MVI56E-DNPNET Ethernet module has 800 mA, up to 20,000 analog inputs, 5,000 maximum analog outputs, 30 G operating shock, 1000 counters, 1 slot, 8000 at 5 V DC for backplane current load Binary input and 8000 binary output. Additional instructions are designed to transfer data between the ProSoft MVI56E-DNPNET Ethernet module and the processor.

If the user is installing the ProSoft MVI56E-DNPNET Ethernet module in a remote rack and wants to leave the setup pin in the jumper state. After you check the correct position of the jumper, you are advised to insert the ProSoft MVI56E-DNPNET Ethernet module into the ControlLogix chassis. To prevent unknown devices from attempting to connect to the ProSoft MVI56E-DNPNET Ethernet module, users can provide a list of proprietary IP addresses that can access the Ethernet module. The ProSoft MVI56E-DNPNET Ethernet module provides information about troubleshooting and diagnosis in the LED status indicators on the front of the ProSoft MVI56E-DNPNET Ethernet module, which provide information about the status of the Ethernet module. The status data in the ProSoft MVI56E-DNPNET Ethernet module can be viewed in ProSoft Configuration Builder via the Ethernet port.

MVI56E-DNPNET 以太网模块
