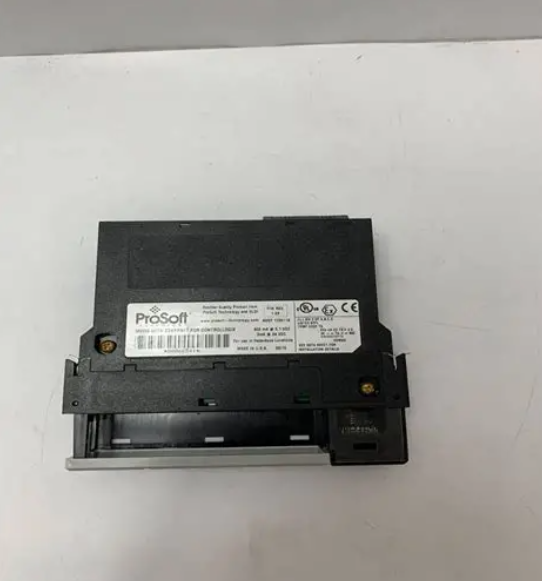

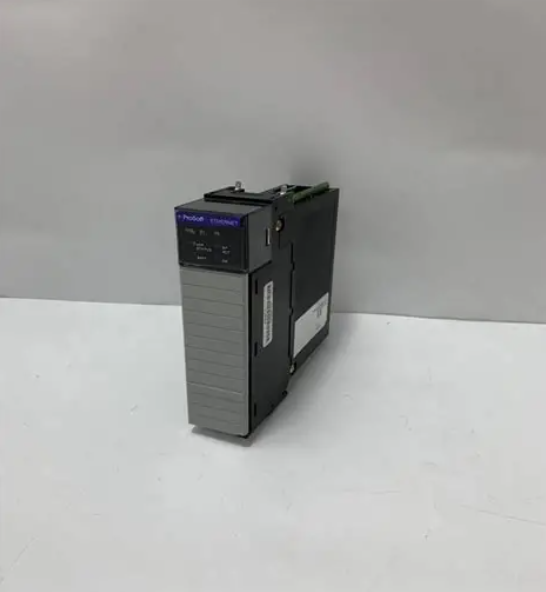

MVI56E-AFC 增强型液体和气体流量计算机

【产品详情】

ProSoft Technology 的 MVI56E-AFC 计算机是用于罗克韦尔自动化 ControlLogix 平台的机箱内流量计算机。它允许水、石油和天然气的分配测量和贸易交接。在ControlLogix平台进行现场自动化的情况下，MVI56E-AFC计算机无需使用独立的流量计算机或单独的RTU来测量石油和天然气应用。该计算机可以优化资源、减少资本支出和减少运营支出。MVI56E-AFC 计算机提供的测量符合 AGA、GPA、ISO 和 API 标准等标准。MVI56E-AFC 计算机发货中包含的物品包括 RJ-45 到 DB-9 公头电缆和 DB-9 母头到 DB-9 母头零调制解调器电缆。

MVI56E-AFC 计算机包括 2 个带有 R-45 接口的集成串行端口，可支持 RS-232、RS-485 和 RS-422（跳线可选）通信。串行端口与机架背板具有 500 伏额定光隔离。这些端口支持握手控制，并提供无线电、调制解调器和多点支持。该模块还包括一个带有 RJ-45 接口的 10/100 Mbps 以太网端口和用于显示链路状态和活动的 LED。以太网端口支持自动交叉。MVI56E-AFC 计算机的电源要求是在 24 伏直流电下 3 毫安的电流和 800 伏直流电下的 5 毫安电流。模块上的 LED 指示灯显示模块状态、串行活动、应用状态和背板传输状态。MVI56E-AFC 计算机的工作温度范围为 32 至 140 华氏度。该模块的存储温度范围为 -40 至 185 华氏度。工作冲击等级为 30 G，而非工作冲击等级为 50 G。

MVI56E-AFC 增强型液体和气体流量计算机

【英文介绍】

ProSoft Technology's MVI56E-AFC computer is an in-case traffic computer for the Rockwell Automation ControlLogix platform. It allows distribution of water, oil and gas measurements and trade transfers. In the case of field automation with the ControlLogix platform, the MVI56E-AFC computer does not need to use a separate flow computer or a separate RTU to measure oil and gas applications. The computer can optimize resources, reduce capital expenditures, and reduce operating expenses. The measurements provided by the MVI56E-AFC computer comply with standards such as AGA, GPA, ISO and API standards. Items included in the shipment of the MVI56E-AFC computer include RJ-45 to DB-9 male head cable and DB-9 female to DB-9 female null modem cable.

The MVI56E-AFC computer includes two integrated serial ports with R-45 interfaces to support RS-232, RS-485, and RS-422 (jumper optional) communication. The serial port has 500 volt rated optical isolation from the rack backplane. These ports support handshake control and provide radio, modem, and multipoint support. The module also includes a 10/100 Mbps Ethernet port with an RJ-45 interface and leds for displaying link status and activity. Ethernet ports support automatic crossover. The power requirements for the MVI56E-AFC computer are 3 mA at 24 volts DC and 5 MA at 800 volts DC. LED indicators on the module show module status, serial activity, application status, and backplane transmission status. The MVI56E-AFC computer operates in a temperature range of 32 to 140 degrees Fahrenheit. The module has a storage temperature range of -40 to 185 degrees Fahrenheit. The work impact rating is 30 G, while the non-work impact rating is 50 G.

MVI56E-AFC 增强型液体和气体流量计算机
