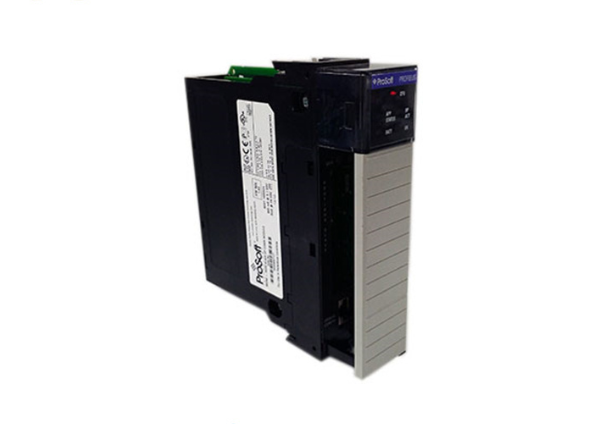

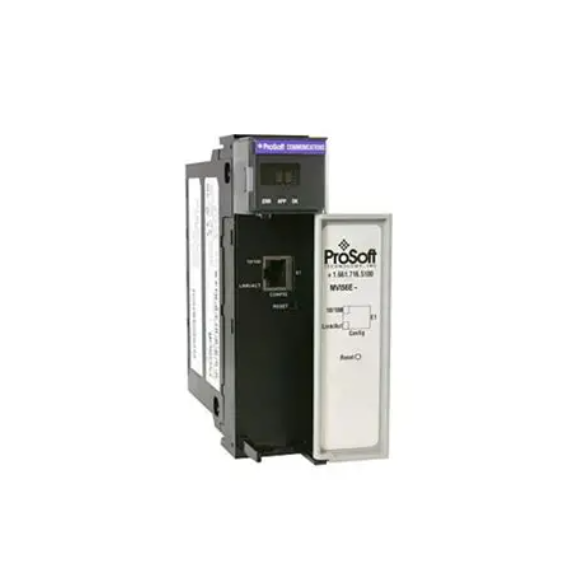

MVI56E-61850S 服务器通信模块

【产品详情】

系统需求

MVI56E-61850S模块对硬件和软件的最低要求如下

组件:

罗克韦尔自动化®ControlLogix®

带有处理器(固件版本10或更高)

MVI56E61850S模块的兼容限压电源和机架中的一个空闲插槽。该模块需要800 mA的可用5 VDC和3 mA的可用电压

24vdc电源。

罗克韦尔自动化RSLogix™5000编程软件

o附加指令需要版本16或更高

罗克韦尔自动化RSLinx®

通讯软件版本2.51及以上

·ProSoft Configuration Builder (PCB)(内含)

ProSoft Discovery Service (PDS)(包含在PCB中)

Pentium®

II 450mhz最低。建议使用Pentium III 733 MHz(或更高)

支持的操作系统:

o Microsoft Windows®Vista

o Microsoft Windows XP Professional with Service Pack 1或2

o Microsoft Windows 7 Professional(32或64位)

o Microsoft Windows 2000 Professional(含Service Pack 1、2或3)

o Microsoft Windows Server 2003

*最小内存128mb，建议配置256m

* 100mb空闲硬盘空间(可根据应用需求选择)

256色VGA图形适配器，800 x 600最小分辨率(真彩色1024768

推荐)

·DVD光驱

安装模块到机架

确保已安装并配置好ControlLogix处理器和电源。

安装MVI56E-61850S模块前。参考您的罗克韦尔自动化产品

安装说明文档。

警告:在安装此设备或任何其他电子设备时，您必须遵守所有安全说明。失败

不遵守安全规程可能会导致硬件或数据损坏，甚至严重的人身伤害或死亡

人员。请参阅您计划连接的每个设备的文档，以验证其适当的安全性

在安装或维修设备之前，有相应的程序。

检查过跳线的位置后，将MVI56E-61850S插入

ControlLogix底盘。使用罗克韦尔自动化推荐的相同技术来

拆卸和安装ControlLogix模块。

您可以在机箱供电时安装或拆卸ControlLogix系统组件

系统正在运行。但是，请注意以下警告。

MVI56E-61850S 服务器通信模块

【英文介绍】

System Requirements

The MVI56E-61850S module requires the following minimum hardware and software

components:

 Rockwell Automation® ControlLogix®

processor (firmware version 10 or higher) with

compatible limited voltage power supply and one free slot in the rack for the MVI56E61850S module.  The module requires 800 mA of available 5 VDC and 3 mA of available

24 VDC power.

 Rockwell Automation RSLogix™ 5000 programming software

o Version 16 or higher required for Add-On Instruction

 Rockwell Automation RSLinx®

communication software version 2.51 or higher

 ProSoft Configuration Builder (PCB) (included)

 ProSoft Discovery Service (PDS) (included in PCB)

 Pentium®

II 450 MHz minimum.  Pentium III 733 MHz (or better) recommended

 Supported operating systems:

o Microsoft Windows® Vista

o Microsoft Windows XP Professional with Service Pack 1 or 2

o Microsoft Windows 7 Professional (32 or 64-bit)

o Microsoft Windows 2000 Professional with Service Pack 1, 2, or 3

o Microsoft Windows Server 2003

 128 MB of RAM minimum, 256 MB of RAM recommended

 100 MB of free hard disk space (or more based on application requirements)

 256-color VGA graphics adapter, 800 x 600 minimum resolution (True Color 1024  768

recommended)

 DVD drive

Installing the Module in the Rack

Make sure your ControlLogix processor and power supply are installed and configured,

before installing the MVI56E-61850S module.  Refer to your Rockwell Automation product

documentation for installation instructions.

Warning: You must follow all safety instructions when installing this or any other electronic devices.  Failure to

follow safety procedures could result in damage to hardware or data, or even serious injury or death to

personnel.  Refer to the documentation for each device you plan to connect to verify that suitable safety

procedures are in place before installing or servicing the device.

After you have checked the placement of the jumpers, insert the MVI56E-61850S into the

ControlLogix chassis.  Use the same technique recommended by Rockwell Automation to

remove and install ControlLogix modules.

You can install or remove ControlLogix system components while chassis power is applied

and the system is operating.  However, please note the following warning.

MVI56E-61850S 服务器通信模块
