MVI56-PDPMV1 主站通信模块 兼容模块

【产品详情】

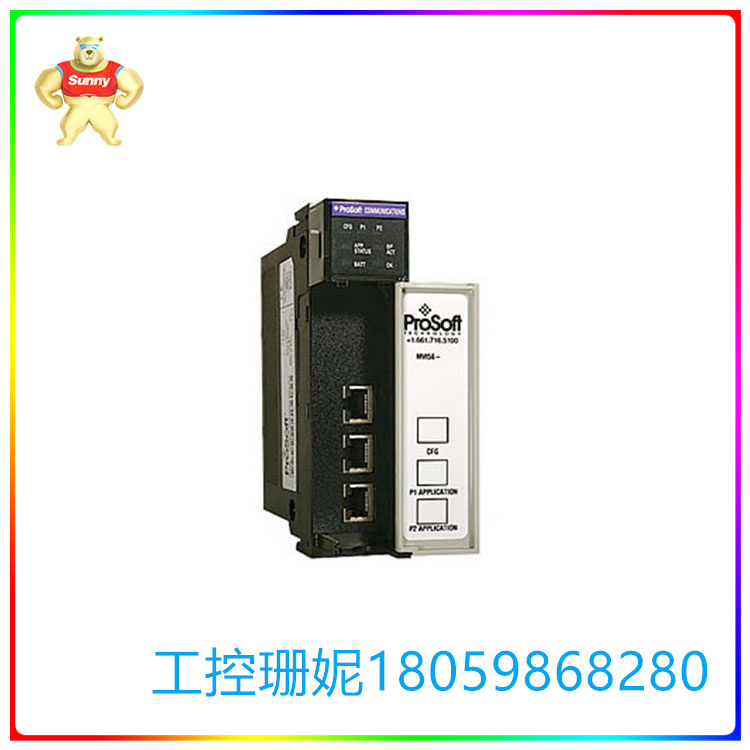

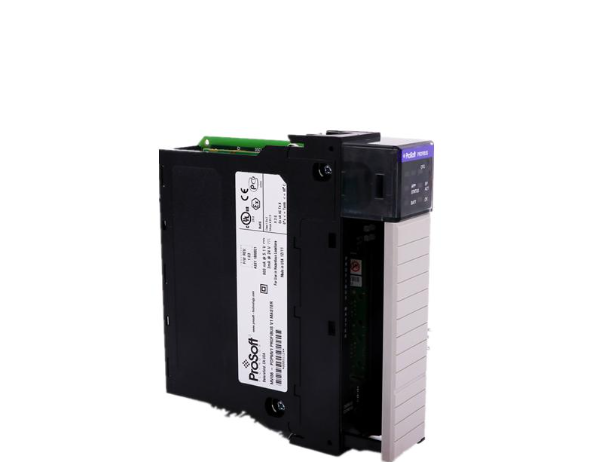

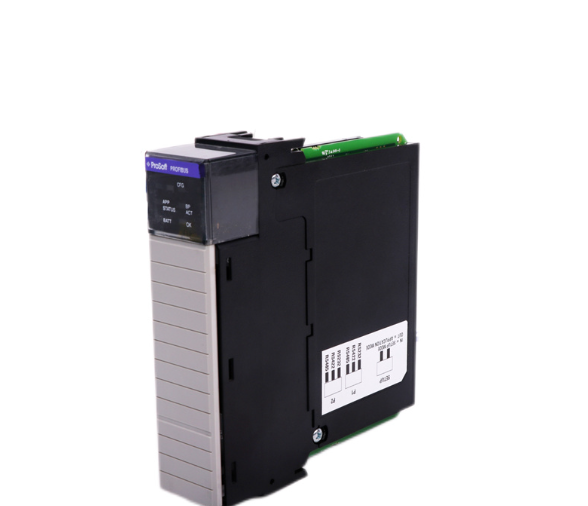

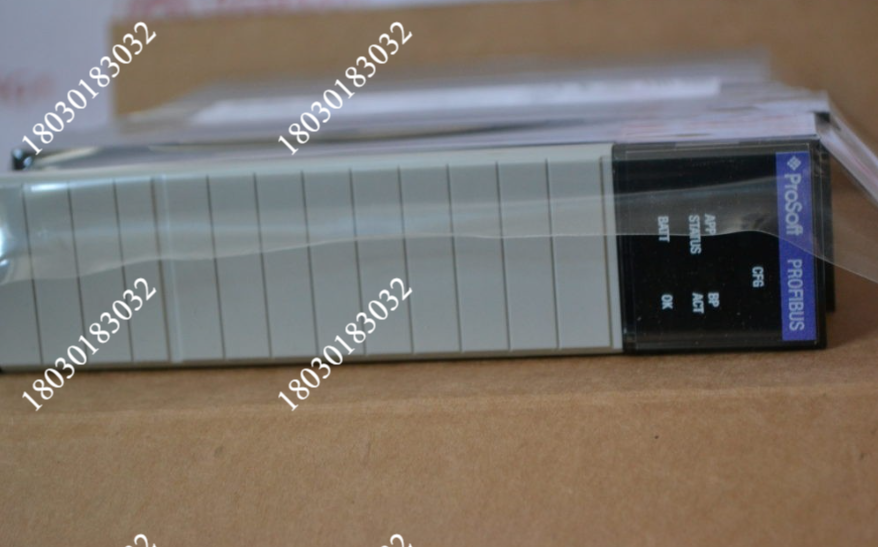

MVI56-PDPMV1 是一款Profibus DP V1主站通信模块。该模块与 encompass 合作伙伴公司 Prosoft Technology 制造的 ControlLogix 平台一起使用。它是一个单插槽模块，带有一 （1） 个 RS485 光隔离 PROFIBUS 接口，支持 DP V1。它最多可连接125个从站设备，与PROFIBUS中继器兼容。它具有 LED 状态指示灯和一 （1） 个调试/配置端口。

MVI56-PDPMV1 是 ControlLogix 平台兼容模块。该模块是 Profibus DP V1 兼容模块，用作 Profibus 网络中的主设备。该模块由 Prosoft Technology 开发，Prosoft Technology 是罗克韦尔自动化的合作伙伴公司，负责开发 Allen-Bradley PLC 兼容模块。

MVI56-PDPMV1 具有一 （1） 个光隔离的 RS485 端口，支持 PROFIBUS DP 版本 1 协议。该端口最多可连接125个PROFIBUS从站设备，该端口也与PPROFIBUS中继器兼容。该模块能够配置多达 1536 个循环字节和 1536 字节的输出，并支持扩展诊断数据。

MVI56-PDPMV1 支持的其他功能包括报警处理、同步和冻结命令、支持 PROFIDrive 3.1 版参数读写操作、组播和广播报文。

MVI56-PDPMV1 具有嵌入式 LED 状态指示灯，用于描述模块的运行状态。这些 LED 指示灯包括 Ready、Run、Error 和 Token 指示灯。

MVI56-PDPMV1 PROFIBUS 通信模块安装在 1756 ControlLogix 机箱上。它占用机箱的单个插槽，并从背板汲取 800 mA @ 5VDC 和 3 mA @ 24VDC 的电流。它的工作温度为 0°C 至 60°C（32°F 至 140°F），存储温度为 -40°C 至 85°C（-40°F 至 185°F）。该模块必须安装在适当的外壳中，在 5 Hz 至 10 Hz 范围内振动不超过 150 g，冲击在 30 g 且相对湿度为 5% 至 95%，无冷凝。

MVI56-PDPMV1 模块是单插槽模块，适合兼容 1756 背板。当连接到处理器时，它被识别为输入/输出模块。

此外，模块在处理器内存中移动，以便在处理器和模块之间传输数据。通常，该模块用作PROFIBUS网络扫描仪，PROFIBUS设备的数据传输调解器，以及通过背板传输处理器数据存储器。

MVI56-PDPMV1 模块的环境条件包括 0 至 60 摄氏度（32 至 140 华氏度）的工作温度范围、-40 至 85 摄氏度（-40 至 185 华氏度）、10 至 150 赫兹的 5G 抗振性、30G 的抗冲击性（不工作时为 50G）和 5% 至 95% 的相对环境湿度（非冷凝）。

MVI56-PDPMV1 主站通信模块 兼容模块

【英文介绍】

MVI56-PDPMV1 is a Profibus DP V1 master station communication module. The module is used in conjunction with the ControlLogix platform manufactured by encompass partner company Prosoft Technology. It is a single slot module with one (1) RS485 optical isolated PROFIBUS interface, supporting DP V1. It can connect up to 125 slave devices and is compatible with PROFIBUS Repeaters. It has an LED status indicator and one (1) debug/configuration port.

The MVI56-PDPMV1 is a ControlLogix platform compatible module. This module is a Profibus DP V1 compatible module and is used as the main device in the Profibus network. The module was developed by Prosoft Technology, a Rockwell Automation partner company responsible for developing the Allen-Bradley PLC-compatible module.

The MVI56-PDPMV1 has one (1) optically isolated RS485 port and supports the PROFIBUS DP Version 1 protocol. Up to 125 PROFIBUS slave devices can be connected to this port, which is also compatible with PPROFIBUS Repeaters. The module is capable of configuring up to 1536 cycle bytes and 1536 bytes of output, and supports extended diagnostic data.

Additional features supported by MVI56-PDPMV1 include alarm handling, sync and freeze commands, support for PROFIDrive version 3.1 parameter read and write operations, multicast and broadcast messages.

The MVI56-PDPMV1 has an embedded LED status indicator to describe the operating status of the module. These LED indicators include Ready, Run, Error, and Token indicators.

The MVI56-PDPMV1 PROFIBUS communication module is installed in the 1756 ControlLogix chassis. It occupies a single slot in the chassis and draws 800 mA@5VDC and 3 mA@24VDC of current from the backplane. It operates at 0°C to 60°C (32°F to 140°F) and stores at -40°C to 85°C (-40°F to 185°F). The module must be installed in a suitable housing with vibration of not more than 150 g in the range of 5 Hz to 10 Hz, shock at 30 g and relative humidity of 5 to 95 percent without condensation.

The MVI56-PDPMV1 module is a single slot module suitable for compatibility with the 1756 backplane. When connected to a processor, it is recognized as an input/output module.

In addition, modules move around in processor memory to transfer data between the processor and the module. Typically, the module is used as a PROFIBUS network scanner, a data transfer mediator for PROFIBUS devices, and a processor data memory transmitted through the backplane.

The environmental conditions of the MVI56-PDPMV1 module include an operating temperature range of 0 to 60 degrees Celsius (32 to 140 degrees Fahrenheit), -40 to 85 degrees Celsius (-40 to 185 degrees Fahrenheit), 5G vibration resistance of 10 to 150 Hertz, and 30G impact resistance (when not operating) 50G) and 5% to 95% relative ambient humidity (non-condensing).
