MVI56-MNETR 接口模块 通过网络进行通信

【产品详情】

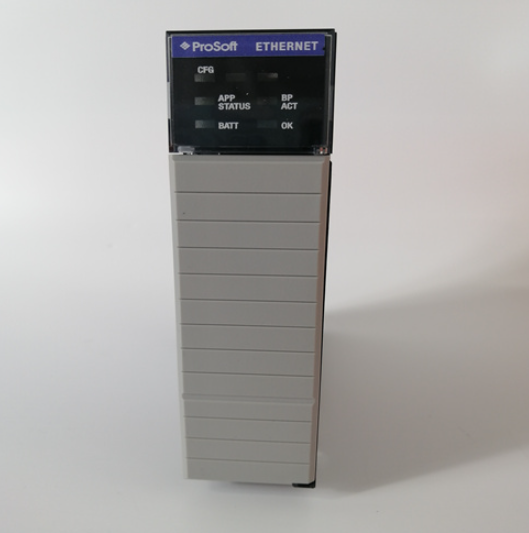

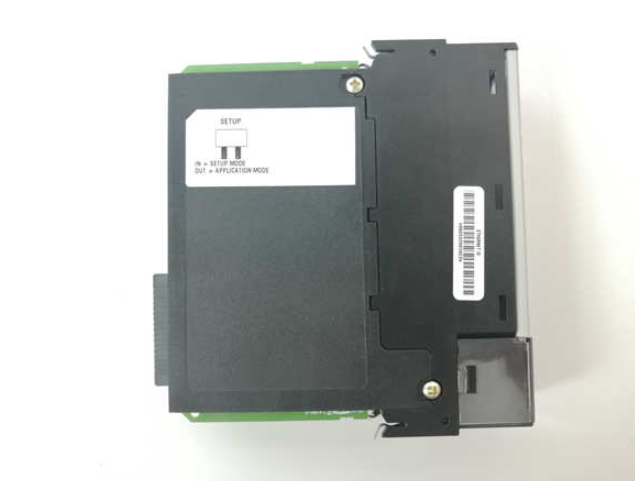

MVI56-MNETR 模块是 ControlLogix 和 Modbus TCP/IP 接口模块。它由 Allen-Bradley 和 ProSoft Technology 制造。它可以在其内存中映射多达 5000 个寄存器。

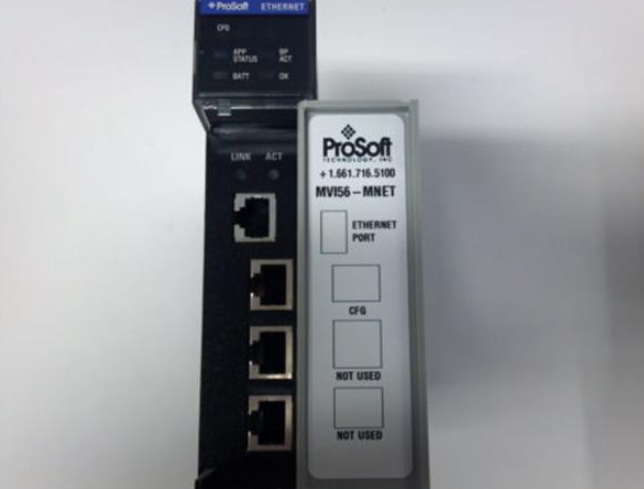

MVI56-MNETR模块是Modbus TCP/IP接口模块，减少了数据块。它由 Allen-Bradley 和 ProSoft Technology 制造。Modbus 是一种广泛使用的工业协议，用于客户端和服务器设备之间通过网络进行通信。它允许 Allen-Bradley/Rockwell Automation ControlLogix 处理器与 Modbus 兼容设备连接，包括 Modicon 可编程自动化控制器和其他设备。它配备了减小的 I/O 图像块大小，可在模块和 ControlLogix 处理器之间传输数据。它有助于使用过程网络控制远程机架应用。MVI56-MNETR 模块在 5 伏直流电下由 800 毫安电流供电，在 24 伏直流电下由 3 毫安电流供电。通信模块配有 10/100 Base-T 连接器、RJ 45 连接器和 LED 指示灯。LED 指示灯显示不同的状态，包括电池状态、进程状态和应用状态。

Allen-Bradley 和 ProSoft Technology MVI56-MNETR 模块设计用于在 I 类 2 区额定工业环境中工作。它通过了 ATEX、cULus、RoHS 和 CE 标准认证。在非冷凝湿度的环境中，工作温度应在 0 到 60 摄氏度之间。MVI56-MNETR模块带有一个插槽，与背板兼容。它也可以被识别为输入/输出模块，它可以访问处理器内存，以便在处理器和模块之间传输数据。通信模块使用梯形逻辑在模块和处理器之间传输数据。MVI56-MNETR 模块支持在 ControlLogix 处理器控制器标签之间存储和传输多达 5000 个寄存器。该模块最多支持 10 台 Modbus TCP/IP 网络服务器和 10 台 MNET 网络服务器。

MVI56-MNETR 接口模块 通过网络进行通信

【英文介绍】

The MVI56-MNETR module is a ControlLogix and Modbus TCP/IP interface module. It was manufactured by Allen-Bradley and ProSoft Technology. It can map up to 5000 registers in its memory.

The MVI56-MNETR module is a Modbus TCP/IP interface module with reduced data blocks. It was manufactured by Allen-Bradley and ProSoft Technology. Modbus is a widely used industrial protocol for communication between client and server devices over a network. It allows Allen-Bradley/Rockwell Automation ControlLogix processors to connect with Modbus compatible devices, including Modicon programmable automation controllers and others. It is equipped with a reduced I/O image block size to transfer data between the module and the ControlLogix processor. It helps to control remote rack applications using process networks. The MVI56-MNETR module is powered by 800 mA at 5 volts DC and 3 mA at 24 volts DC. Communication modules are equipped with 10/100 Base-T connectors, RJ 45 connectors and LED indicators. LED indicators show different states, including battery status, process status, and application status.

Allen-Bradley and ProSoft Technology MVI56-MNETR modules are designed to operate in Class I Zone 2 rated industrial environments. It is certified to ATEX, cULus, RoHS and CE standards. In an environment with non-condensing humidity, the operating temperature should be between 0 and 60 degrees Celsius. The MVI56-MNETR module has one slot and is compatible with the backplane. It can also be recognized as an input/output module, which has access to processor memory in order to transfer data between the processor and the module. The communication module uses ladder logic to transfer data between the module and the processor. The MVI56-MNETR module supports the storage and transfer of up to 5000 registers between the ControlLogix processor controller labels. The module supports up to 10 Modbus TCP/IP network servers and 10 MNET network servers.

MVI56-MNETR 接口模块 通过网络进行通信
