MVI56-MNET 通信模块 驱动程序和功能

【产品详情】

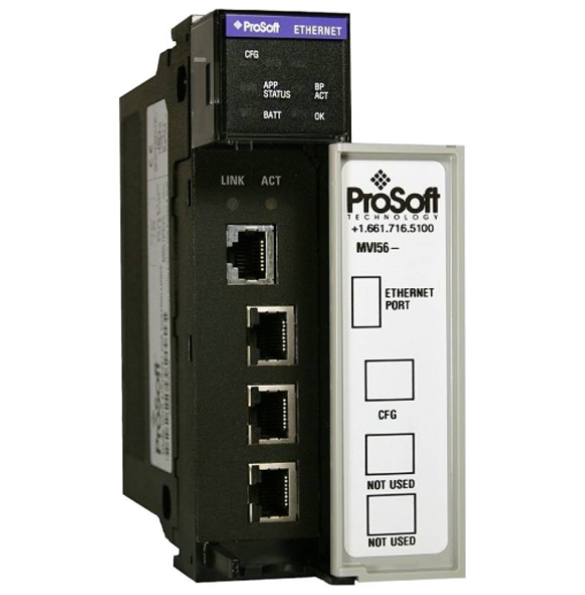

MVI56-MNET 模块是由 Allen-Bradley 和 Prosoft Technology 制造的 Modbus 通信模块。它使用 Modbus TCP/IP 协议和 ControlLogix 网络，可用于各种应用。它带有服务器和客户端驱动程序和功能。此通用模块可以使用服务端口 5 支持与多达 502 个 mbap 客户端的连接，使用服务端口 5 支持与 2000 个 MNET 客户端的连接。此模块变体上的客户端可以轻松地将消息发送到多个服务器。MVI56-MNET 模块与 Allen-Bradley ControlLogix 处理器兼容。通信模块配备一个 RJ 45 串行配置端口和一个 Modbus 以太网端口。Modbus 以太网端口允许 MNET 客户端变体轻松与 ControlLogix 处理器接口进行通信。

Allen-Bradley 和 Prosoft Technology MVI56-MNET 通信模块的背板电流负载为 800 毫安（5 伏直流）和 3 毫安（24 伏直流）。模块正面带有一个 LED 指示灯，用于显示电池状态、应用状态和模块状态。正面有一个显示屏，显示模块、版本、IP 地址、应用程序端口设置和错误信息。此显示屏是一个 4 个字符的滚动字母数字显示。MVI56-MNET模块向后兼容所有以前版本的MNET模块。它具有 10/100 Mbps 自动交叉检测、以太网配置和应用端口。该模块带有用户可定义的模块数据存储器映射，一次最多可用于 5000 个 16 位寄存器。

MVI56-MNET 通信模块 驱动程序和功能

【英文介绍】

The MVI56-MNET module is a Modbus communication module manufactured by Allen-Bradley and Prosoft Technology. It uses the Modbus TCP/IP protocol and ControlLogix network and can be used for a variety of applications. It comes with server and client drivers and functions. This universal module can support connections to up to 502 mbap clients using service port 5 and 2000 MNET clients using service port 5. Clients on this variant of the module can easily send messages to multiple servers. The MVI56-MNET module is compatible with Allen-Bradley ControlLogix processors. The communication module is equipped with an RJ 45 serial configuration port and a Modbus Ethernet port. The Modbus Ethernet port allows the MNET client variant to easily communicate with the ControlLogix processor interface.

The backplane current loads for Allen-Bradley and Prosoft Technology MVI56-MNET communication modules are 800 mA (5 V DC) and 3 MA (24 V DC). There is an LED indicator on the front of the module to display the battery status, application status and module status. There is a display on the front that shows the module, version, IP address, application port Settings, and error messages. The display is a 4-character scrolling alphanumeric display. The MVI56-MNET module is backward compatible with all previous versions of MNET modules. It features 10/100 Mbps automatic cross detection, Ethernet configuration, and application ports. The module comes with a user-definable module data memory map that can be used for up to 5,000 16-bit registers at a time.
