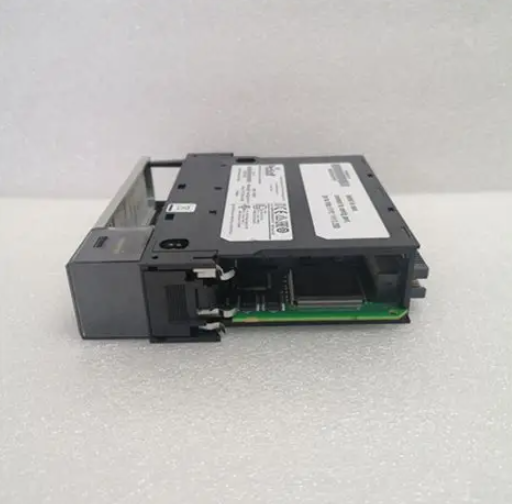

MVI56-GEC 以太网接口模块 串行模块连接

【产品详情】

MVI56-GEC 是 ProSoft 通用以太网接口模块。该模块在 3 伏直流电下的电流消耗为 24 毫安，背板在 800 伏直流电下的电流消耗为 5 毫安。MVI56-GEC 具有 LED 指示灯，可协助监控和故障排除功能。MVI56-GEC 上的应用端口是使用 RJ45 连接器的以太网端口。该端口具有链路和活动 LED 指示灯。此外，应用端口（PRT1、PRT2）支持完整的硬件握手。MVI45-GEC 通用接口模块上的第二个 RJ56 端口（从顶部开始）是调试/配置端口 （CFG），不支持硬件握手。

MVI1-GEC 上的 P2 和 P56 端口用于将模块与串行模块连接。MVI56-GEC ASCII 接口模块的主要用途是使使用 TCP/IP 协议和 ControlLogix 处理器的 ASCII 设备连接变得容易。要连接的设备可能具有以太网功能，也可能是使用瘦服务器的以太网连接的一部分。MVI56-GEC 在输入/输出机架中占据一个插槽，无论是远程还是本地。为了增强接口模块和ControlLogix处理器之间的数据传输，MVI56-GEC采用了专有的背板技术。

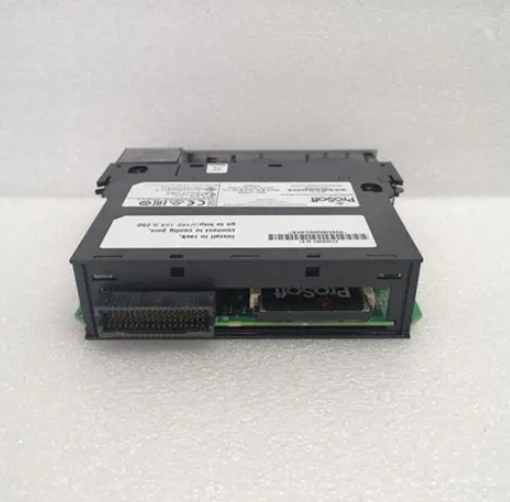

MVI56-GEC 以太网接口模块 串行模块连接

【英文介绍】

The MVI56-GEC is a ProSoft universal Ethernet interface module. The module has a current consumption of 24 mah at 3 volts DC, and the backplane has a current consumption of 5 mah at 800 volts DC. The MVI56-GEC features LED indicators to assist with monitoring and troubleshooting functions. The application ports on the MVI56-GEC are Ethernet ports using RJ45 connectors. This port has a link and active LED indicator. In addition, application ports (PRT1, PRT2) support full hardware handshakes. The second RJ56 port on the MVI45-GEC universal interface module (from the top) is the Debug/Configuration port (CFG) and does not support hardware handshakes.

The P2 and P56 ports on the MVI1-GEC are used to connect the module to the serial module. The main purpose of the MVI56-GEC ASCII interface module is to make it easy to connect ASCII devices using the TCP/IP protocol and ControlLogix processors. The device to be connected may have Ethernet capabilities or may be part of an Ethernet connection using a thin server. The MVI56-GEC occupies a slot in the input/output rack, whether remote or local. To enhance data transfer between the interface module and the ControlLogix processor, the MVI56-GEC uses proprietary backplane technology.

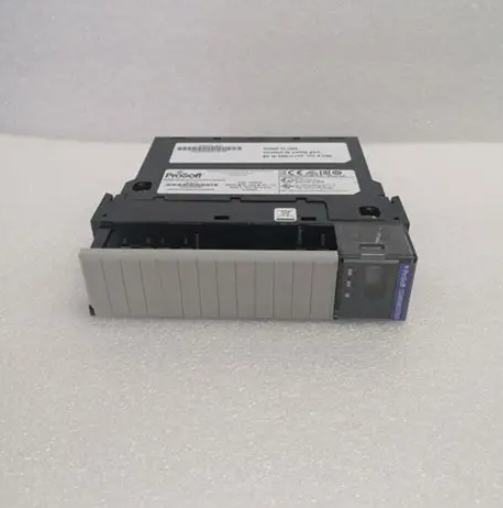

MVI56-GEC 以太网接口模块 串行模块连接
