MVI56-DFCMR 网络接口模块 具有减少数据块

【产品详情】

ProSoft MVI56-DFCMR DF1 主/从网络接口模块具有减少的数据块，具有 1 个插槽和梯形逻辑数据传输。该模块具有本地或远程机架类型，每个主端口有 100 个命令。

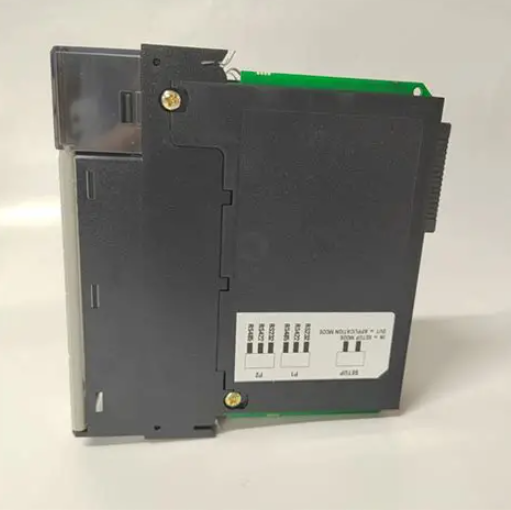

Prosoft Technology MVI56-DFCMR 是一款具有减少数据块的 DF1 接口模块。该模块旨在使用一个小型 I/O 数据区域，用于与 ControlLogix 处理器之间的数据传输。从模块的正面可以看到三个端口。第一个用于调试和配置过程，它被指定为 CFG。另外两个（PRT1 和 PRT2）是应用端口，提供完整的硬件握手控制，此外，它们还适用于无线电、调制解调器和多点活动。这些端口中的每一个都可以由用户配置为主端口或从端口。MVI56-DFCMR 是一款单插槽主/从通信模块，其特点是减少了数据块。

该通信模块是 ControlLogix 背板兼容模块，可从 0 伏直流供电背板获取 8.5 安培电流。它为 ControlLogix PLC 提供接口功能，以便与 DF1 协议兼容设备和主机交换数据。DF1 协议通常由 Allen-Bradley PLC、电源监控设备以及市场上可用的第三方设备使用。Prosoft MVI56-DFCMR 专门用于支持以太网或 ControlNet 应用，该模块位于远程机架中。在该接口模块和处理器之间传输数据需要梯形逻辑编程。当您订购此模块时，它将随附 RS232 零调制解调器电缆、RJ45 到 DB9 公头适配器电缆和两个 1454-9F 适配器，用于 DB9 母头到螺丝端子连接。此外，还附带了一张 CD，其中包含此接口模块的文档、示例程序和实用程序。

MVI56-DFCMR 网络接口模块 具有减少数据块

【英文介绍】

The ProSoft MVI56-DFCMR DF1 Master/Slave network interface module has a reduced data block with 1 slot and ladder logic for data transfer. The module is available in either local or remote rack types with 100 commands per master port.

Prosoft Technology MVI56-DFCMR is a DF1 interface module with reduced data blocks. The module is designed to use a small I/O data area for data transfer between the ControlLogix processor. Three ports are visible from the front of the module. The first is for the debugging and configuration process and is specified as CFG. The other two (PRT1 and PRT2) are application ports that provide complete hardware handshake control, in addition, they are suitable for radio, modem and multipoint activity. Each of these ports can be configured as a master or slave port by the user. The MVI56-DFCMR is a single-slot master/slave communication module that features reduced data blocks.

The communication module is ControlLogix backplane compatible and can draw 8.5 amps of current from the 0 volt DC backplane. It provides interface functions for ControlLogix PLC to exchange data with DF1 protocol compatible devices and hosts. The DF1 protocol is commonly used by Allen-Bradley PLC, power monitoring equipment, and third-party equipment available in the market. Specifically designed to support Ethernet or ControlNet applications, the Prosoft MVI56-DFCMR module is located in a remote rack. The transfer of data between this interface module and the processor requires ladder logic programming. When you order this module, it comes with an RS232 null modem cable, RJ45 to DB9 male adapter cable, and two 1454-9F adapters for DB9 female to screw terminal connections. It also comes with a CD containing documentation, sample programs, and utilities for this interface module.
