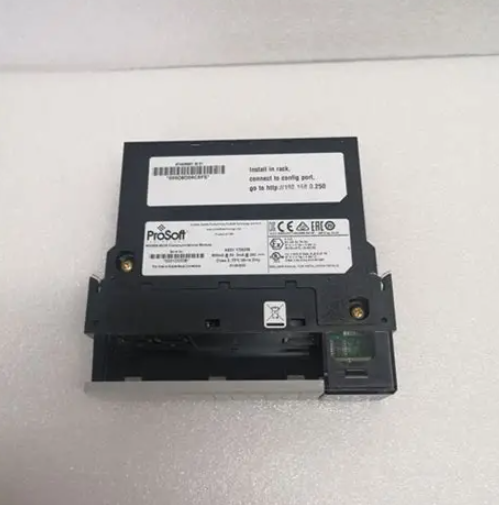

MVI56-DFCM 串行通信模块 网络接口模块设备

【产品详情】

Allen-Bradley/Rockwell Automation MVI56-DFCM 模块是 ControlLogix 系列通信模块。它是一个串行通信模块，支持全双工和半双工设置以及主从通信。它随附一个适配器和 2 根用于安装的电缆。MVI56-DFCM 串行通信模块的一根电缆是 RS-232 零调制解调器电缆，另一根是 RJ-45 到 DB9 适配器电缆。

MVI56-DFCM 从站通信网络接口模块由 inRAx 制造，是一种网络接口模块设备，允许 ControlLogix 系统上的 DF1 端口向处理器添加 DF1 半双工和全双工主站和从站功能，以便与支持 DF1 协议的 SCADA 和现场设备连接。MVI56-DFCM 可以支持罗克韦尔自动化设备以及其他使用 DF1 协议的制造商设备。MVI56-DFCM 支持大多数终端设备以及 Modicon PLC。MVI56-DFCM 接口模块具有 2 个串行端口，支持 DF1，可更轻松地与 PC 和其他设备连接，从而实现各种操作，如状态检查、监控、配置和故障排除。用于此目的的串行电缆在出厂时随模块一起提供。

MVI56-DFCM 的额定电流范围为 3 至 800 mA，通信额定值范围为 110 至 115200 波特。MVI56-DFCM 的额定电压范围为 5 至 24 伏直流电。MVI56-DFCM 模块的工作温度范围在 32 到 140 华氏度之间波动。MVI56-DFCM 的预配置驱动器设置可以从 PC 下载并安装在模块上。设备的配置是通过最终用户可定制的梯形图获得的。输入和输出数据块可以单独监控并映射到模块数据存储器上，以实现最大的灵活性和效率。MVI56-DFCM 具有本地和远程机架选项以及可配置的 I/O 背板。对于模块和处理器之间的数据传输，MVI56-DFCM 使用梯形逻辑。MVI56-DFCM与背板兼容。

MVI56-DFCM 串行通信模块 网络接口模块设备

【英文介绍】

The Allen-Bradley/Rockwell Automation MVI56-DFCM module is a ControlLogix series communication module. It is a serial communication module that supports full duplex and half duplex Settings as well as master-slave communication. It comes with an adapter and 2 cables for installation. One cable of the MVI56-DFCM serial communication module is an RS-232 null modem cable and the other is an RJ-45 to DB9 adapter cable.

The MVI56-DFCM slave communication network interface module, manufactured by inRAx, is a network interface module device that allows the DF1 port on the ControlLogix system to add DF1 half-duplex and full-duplex master and slave functions to the processor. To connect with SCADA and field devices that support the DF1 protocol. The MVI56-DFCM can support Rockwell Automation equipment as well as equipment from other manufacturers using the DF1 protocol. The MVI56-DFCM supports most terminal devices as well as Modicon PLCS. The MVI56-DFCM interface module has 2 serial ports and supports DF1, making it easier to connect to PCS and other devices for various operations such as status checking, monitoring, configuration, and troubleshooting. A serial cable for this purpose is supplied with the module at the factory.

The MVI56-DFCM has a current rating range of 3 to 800 mA and a communication rating range of 110 to 115,200 baud. The MVI56-DFCM has a rated voltage range of 5 to 24 volts DC. The operating temperature range of the MVI56-DFCM module fluctuates between 32 and 140 degrees Fahrenheit. The pre-configured drive Settings for the MVI56-DFCM can be downloaded from the PC and installed on the module. The configuration of the device is obtained through a ladder diagram that can be customized by the end user. Input and output data blocks can be individually monitored and mapped onto the module data memory for maximum flexibility and efficiency. The MVI56-DFCM has local and remote rack options and a configurable I/O backplane. For data transfer between modules and processors, the MVI56-DFCM uses ladder logic. MVI56-DFCM is compatible with the backplane.

MVI56-DFCM 串行通信模块 网络接口模块设备
