MVI56-AFC 气体流量计算机模块 串行通信

【产品详情】

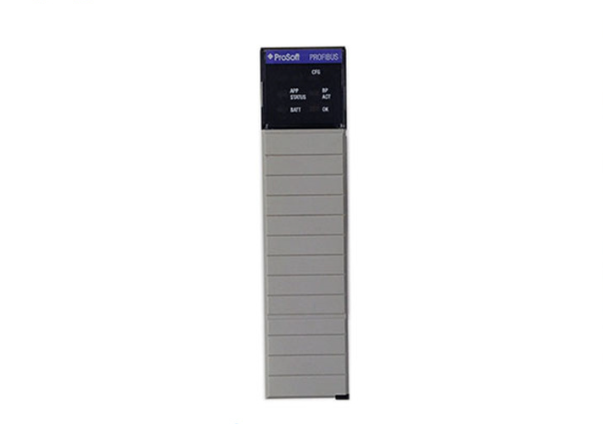

ProSoft MVI56-AFC 气体和液体流量计算机具有 1 个插槽和梯形逻辑数据传输。该模块具有本地或远程机架类型和最小 128 MB RAM。

Prosoft Technology 的 MVI56-AFC 液体和气体流量计算机模块和带有 RJ45/DB-9M 的 inRAx® 带有随附的电缆接口和仅 RS-232 串行通信，是被控制系统的强大补充。与 MVI56 系列的其他设备一样，该模块旨在与 ControlLogix 系统一起使用，以便准确、精确地测量碳氢化合物气体或液体。流量计算机的主要目的是计算流速，并获得指定液体/气体的总体积、质量和产生的热能的完整报告。ControlLogix 存储器用于通过背板传输计算结果，以供应用梯形图程序使用。MVI56-AFC 的背板额定电流在 800 伏直流电下为 5 毫安，在 3 伏直流时为 24 毫安，它具有用于模块、背板传输和应用状态的 LED 指示灯，以及用于串行活动的指示灯。MVI56-AFC 的功能包括三个可配置的 Modbus 端口、可自定义的 Modbus 数据映射、16 M 运行、仪表证明、可审计性和数据安全性。

MVI56-AFC 模块与单插槽/1756 背板兼容，并被预期的处理器识别为输入/输出模块。除此之外，该模块还包括一个示例梯形逻辑文件，用于在模块和处理器之间传输数据。模块的 Modbus 可用于下载正确配置所需的数据。此外，模块的配置数据可以通过用户定义的梯形图进行传递。该系列的每个模块都配有用于每个端口的 RJ45/DB-9M 电缆和一根 6 英尺的 RS-232 配置电缆，它们符合 ANSI/ISA 12.12.01 I 类/2 分区、CSA/cUL（C22.2 编号 213-1987）、CSA CB （IEC61010）、ATEX EN60079-0（3 类）、EN60079-15 等标准进行标准化。该模块的工作温度范围在 0 到 60 摄氏度（32 到 140 华氏度）之间，而存储温度范围在 -40 到 85 摄氏度（-40 到 185 华氏度）之间。该模块还具有抗冲击和抗振动功能，可以承受 5% 至 95% 的非冷凝湿度水平。

MVI56-AFC 气体流量计算机模块 串行通信

【英文介绍】

The ProSoft MVI56-AFC gas and liquid flow computer has 1 slot and ladder logic for data transfer. The module has a local or remote rack type and a minimum of 128 MB RAM.

Prosoft Technology's MVI56-AFC liquid and gas flow computer module and inRAx® with RJ45/DB-9M with included cable interface and RS-232 serial communication only are powerful additions to the controlled system. Like other devices in the MVI56 series, the module is designed to be used with the ControlLogix system for accurate and precise measurement of hydrocarbon gases or liquids. The main purpose of the flow computer is to calculate the flow rate and obtain a complete report of the total volume, mass and heat energy generated by the specified liquid/gas. The ControlLogix memory is used to transmit calculation results through the backplane for use by ladder diagram programs. The MVI56-AFC's backplane is rated at 5 mah at 800 volts DC and 24 mah at 3 volts DC, and it features LED indicators for module, backplane transmission and application status, as well as indicators for serial activity. The MVI56-AFC features include three configurable Modbus ports, customizable Modbus data mapping, 16 M operation, meter proof, auditability, and data security.

The MVI56-AFC module is compatible with the single socket /1756 backplane and is recognized as an input/output module by the intended processor. In addition to this, the module also includes a sample ladder logic file for transferring data between the module and the processor. The module's Modbus can be used to download the data needed for proper configuration. In addition, the configuration data of the module can be passed through the user-defined ladder diagram. Each module in the series comes with an RJ45/DB-9M cable for each port and a 6-foot RS-232 configuration cable, They are standardized according to ANSI/ISA 12.12.01 Class I/ 2 zoning, CSA/cUL (C22.2 No. 213-1987), CSA CB (IEC61010), ATEX EN60079-0 (Class 3), EN60079-15 and other standards. The module operates in a temperature range of 0 to 60 degrees Celsius (32 to 140 degrees Fahrenheit), while the storage temperature ranges from -40 to 85 degrees Celsius (-40 to 185 degrees Fahrenheit). The module is also shock and vibration resistant and can withstand non-condensing humidity levels from 5% to 95%.
