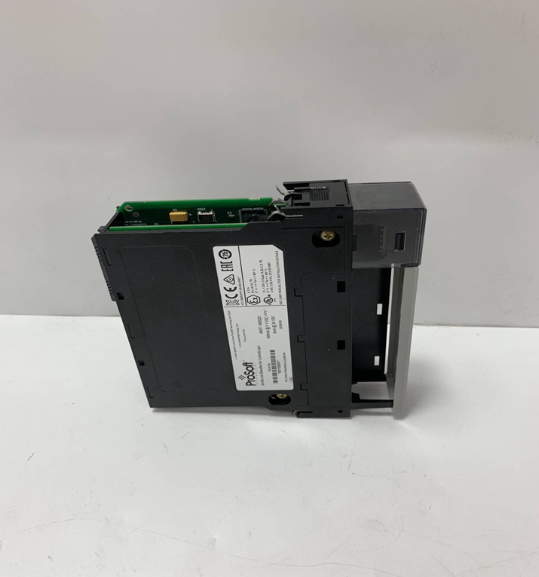

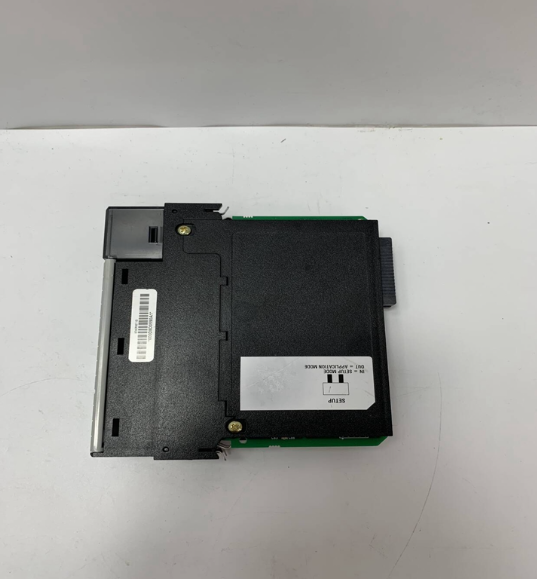

MVI56-ADMNET 以太网通信模块 以太网协议兼容

【产品详情】

MVI56应用开发以太网通信模块允许

ControlLogix处理器接口容易与以太网协议兼容

设备和主机。

ADMNET解决方案是一个功能强大的模块，设计了客户端和

服务器的支持。这种广泛的支持使模块能够作为数据发挥作用

集合的子主机，或者作为HMI主机的一个远程的强大的从属。

该模块的应用可以在大多数行业中找到，尤其是

制造业，石油和天然气，电力和食品加工。

MVI56-ADMNET模块是一个单槽位、背板兼容的解决方案

用于ControlLogix平台。它支持两个完全隔离的串行端口和

一个以太网端口，允许许多现场设备集成到

ControlLogix平台，自定义用户编写的“C”代码和各种api

提供以太网，串行和背板通信。

通用规范

·单槽- 1756背板兼容

该模块被识别为输入/输出模块，允许处理器和模块之间的数据传输。

梯子逻辑用于模块和处理器之间的数据传输。包括示例梯子文件。

配置数据从下载到模块的配置文本文件中获取。包括样例配置文件

•本地机架或远端机架

'C'可编程以太网

ADMNET API是MVI56-ADM API Suite的一个组件。ADMNET API提供了一个简单的模块级接口

可在MVI56系列成员之间移动。这在开发实现以太网协议的应用程序时非常有用

秤一种特殊的装置，如秤或条形码阅读器应用程序开发完成后，可以在任何MVI56上使用

家庭模块。

ADMNET模块的应用程序可以使用工业标准的DOS编程工具和适当的API来开发

组件。

开发环境

操作系统:通用软件DOS 6-XL

兼容编译器(16位DOS目标)

o Digital Mars c++ V8.49(内含)

o Borland c++ V5.02

SDK包括

·ADM API LIB(库)文件

·ADM API头文件

完整的API文档

映像文件创建实用程序

图像文件下载实用程序

DigitalMars 'C'编译器

通用软件DOS 6-XL

•示例代码文件

MVI56-ADMNET 以太网通信模块 以太网协议兼容

【英文介绍】

The MVI56 Application Development Ethernet Communication Module allows

ControlLogix processors to interface easily with Ethernet protocol compatible

devices and hosts.

The ADMNET solution is a powerful module designed with both Client and

server support.  This broad support enables the module to function as a data

collection submaster, or to be a powerful slave as a remote off an HMI host.

Applications for the module are found in most industries, especially

Manufacturing, Oil and Gas, Electrical Power and Food Processing.

The MVI56-ADMNET module is a single-slot, backplane compatible solution

for the ControlLogix platform.  It supports two fully isolated serial ports and

one Ethernet port, allowing the many field devices to be integrated into the

ControlLogix platform with custom user-written 'C' code and various APIs

supplied for Ethernet, serial and backplane communication.

General Specifications

 Single Slot - 1756 backplane compatible

 The module is recognized as an Input/Output module, allowing for data transfer between processor and module.

 Ladder Logic is used for data transfer between module and processor.  Sample ladder file included.

 Configuration data obtained from configuration text file downloaded to module.  Sample configuration file included

 Local or remote rack

'C' Programmable over Ethernet

The ADMNET API is one component of the MVI56-ADM API Suite.  The ADMNET API provides a simple module-level interface that is

portable between members of the MVI56 Family.  This is useful when developing an application that implements an Ethernet protocol for

a particular device, such as a scale or bar code reader.  After an application has been developed, it can be used on any of the MVI56

family modules.

Applications for the ADMNET module may be developed using industry-standard DOS programming tools and the appropriate API

components.

Development Environment

 Operating system: General software DOS 6-XL

 Compatible compiler (16-bit DOS target)

o Digital Mars C++ V8.49 (included)

o Borland C++ V5.02

SDK Includes

 ADM API LIB (library) File

 ADM API Header File

 Complete API Documentation

 Image file creation utility

 Image file download utility

 DigitalMars 'C' compiler

 General software DOS 6-XL

 Example Code Files
