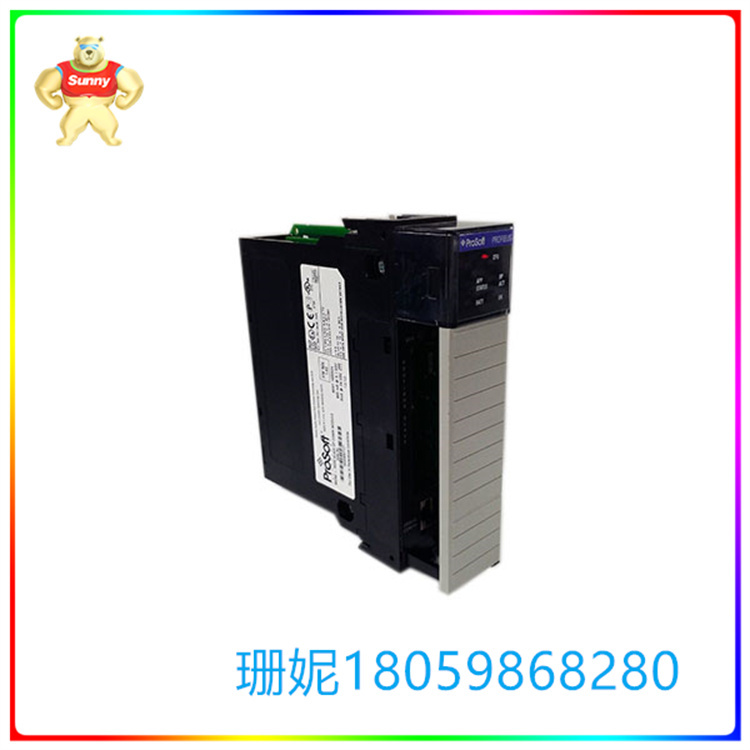

PROSOFT MVI56-101S 梯形逻辑数据传输

【产品详情】

描述：ProSoft MVI56-101M 主网络接口模块具有 1 个插槽和梯形逻辑数据传输。该模块具有本地或远程机架类型和 2 个独立的主端口。

MVI56 IEC 60870-5-101从网接口模块是为ControlLogix平台增加IEC 60870-5-101协议接口连通性的最快、最简单的方法。该模块具有两个功能强大且高度可配置的IEC 60870-5-101从端口，允许将支持IEC协议的许多SCADA和现场设备集成到ControlLogix平台中。MVI56-101S设计用于解决使用IEC 60870-5-101协议的主机系统必须与ControlLogix处理器通信的应用。IEC协议的功能与DNP 3.0协议非常相似，后者具有时间戳和异常真实报告(TRBE)功能。这些特性使MVI56-101S模块无需轮询即可向处理器发送报告，在关键情况下提供实时数据传输。

MVI56-101S Edition 2模块是向ControlLogix平台添加IEC 60870-5-101协议接口支持的最佳方式。该模块具有两个功能强大且高度可配置的IEC 60870-5-101从串口，允许使用此IEC协议的许多SCADA和现场设备集成到ControlLogix平台中。

该模块作为IEC 60870-5-101遥控网络和罗克韦尔自动化ControlLogix背板之间的输入/输出模块。来自ControlLogix处理器的数据传输与网络上的操作是异步的。模块中一个5000字的寄存器空间在处理器和远程控制网络之间交换数据。

PROSOFT MVI56-101S 梯形逻辑数据传输

【英文介绍】

The MVI56 IEC 60870-5-101 Slave Network Interface Module is the fastest and easiest way to add IEC 60870-5-101 protocol interface connectivity for the ControlLogix platform.  The module has two powerful and highly configurable IEC 60870-5-101 Slave ports, allowing the many SCADA and field devices supporting the IEC protocol to be integrated into the ControlLogix platform.  The MVI56-101S is designed to address applications where a host system using the IEC 60870-5-101 protocol must communicate with a ControlLogix processor.  Functionality of the IEC protocol is very similar to the DNP 3.0 protocol which features time stamping and True Report by Exception (TRBE).  These features allow the MVI56-101S module to send a report to the processor without being polled, providing real time data transmission in critical situations.

The MVI56-101S Edition 2 module is the best way to add IEC 60870-5-101 protocol interface support to the ControlLogix platform.  This module has two powerful and highly-configurable IEC 60870-5-101 Slave serial ports, allowing many SCADA and field devices using this IEC protocol to be integrated into the ControlLogix platform.

The module acts as an input/output module between the IEC 60870-5-101 telecontrol network and the Rockwell Automation ControlLogix backplane.  The data transfer from the ControlLogix processor is asynchronous from the actions on the network.  A 5000-word register space in the module exchanges data between the processor and the telecontrol network.

PROSOFT MVI56-101S 梯形逻辑数据传输
