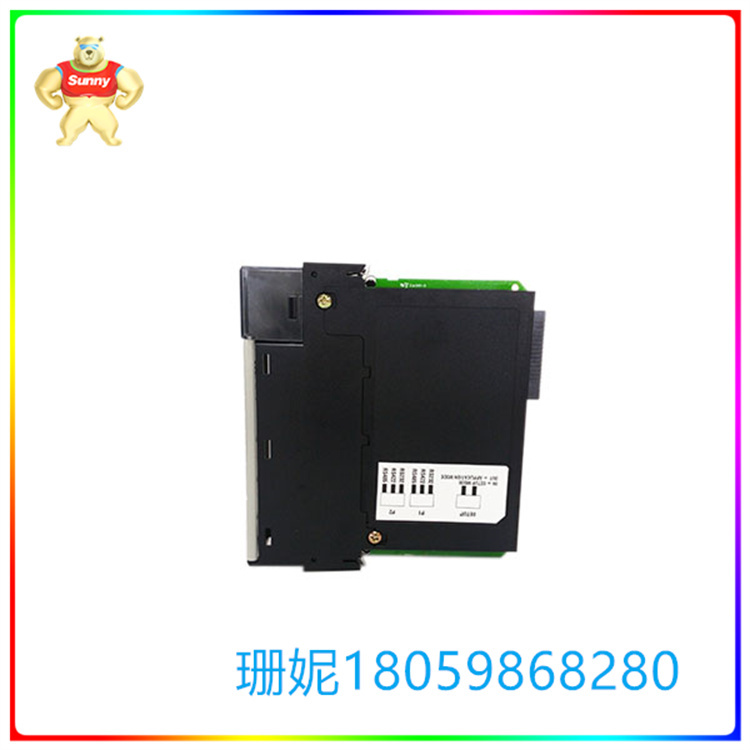

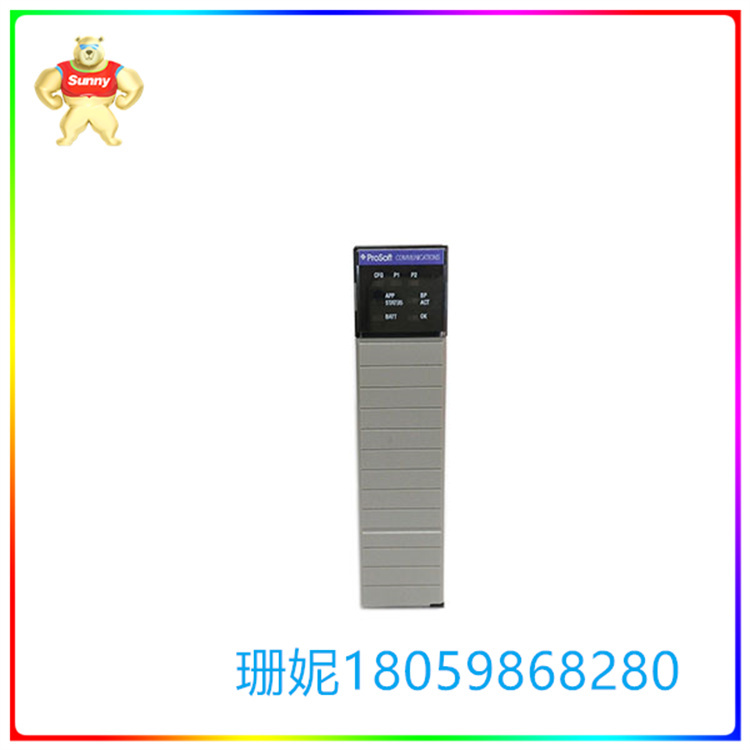

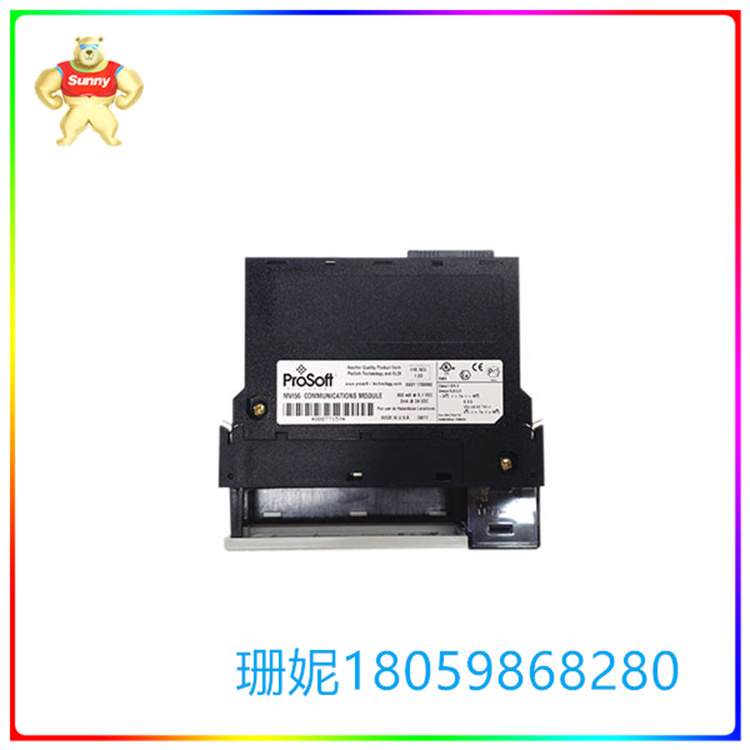

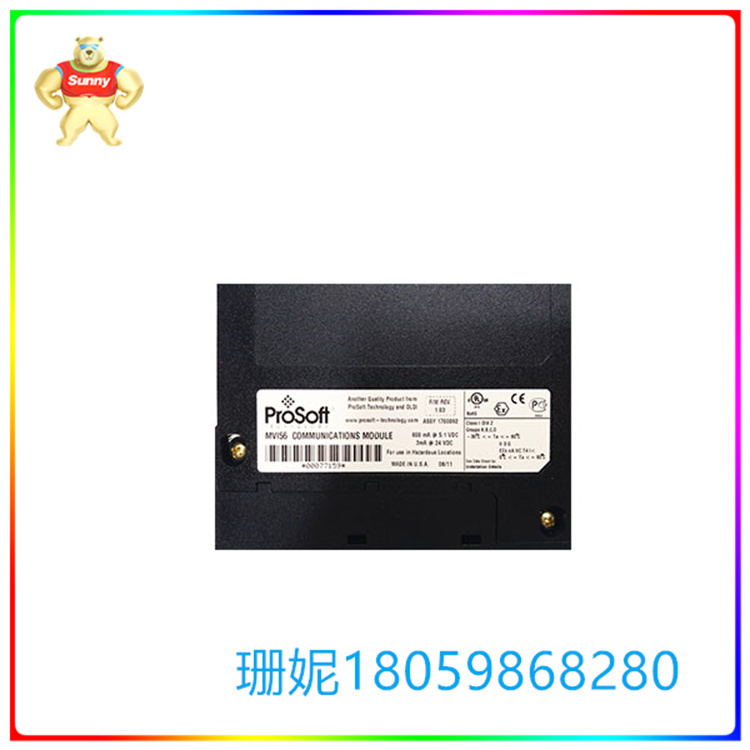

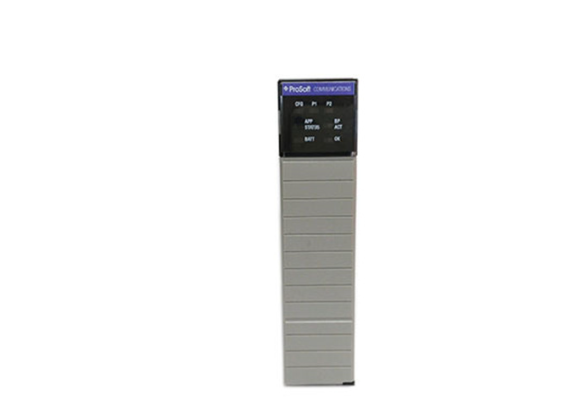

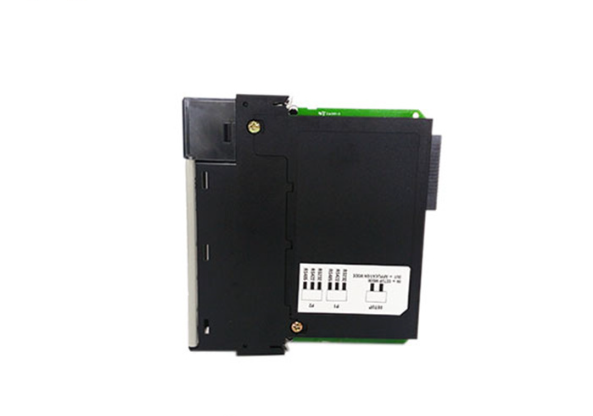

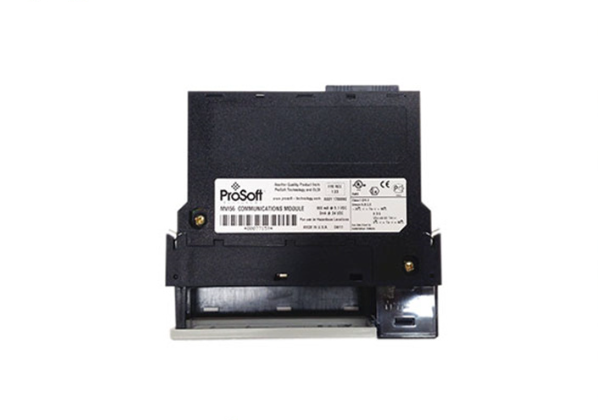

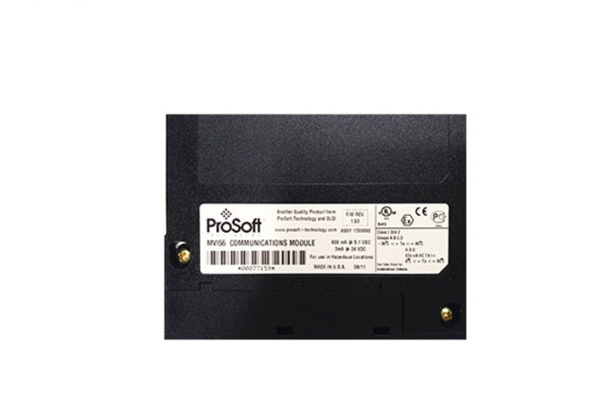

MVI56-MCM Modbus 主站/从站通信模块

【产品详情】

使用 MVI56E 增强型 Modbus 主站/从站通信模块，罗克韦尔自动化® ControlLogix® 处理器可以轻松连接采用 RTU/ASCII 串行通信协议的设备。

MVI56E-MCM 和 MVI56E-MCMXT 作为 ControlLogix 背板上的输入/输出模块，使得 Modbus 数据对于处理器来说就像是 I/O 数据。与处理器进行的数据传输与 Modbus 网络上的通信异步。模块具备两个可独立配置的串行端口，可运行在相同或不同的 Modbus 网络中。每个端口都可配置为 Modbus 主站或从站，共享同一个由用户控制的 10000 字数据库。

两个模块在功能上完全相同。MVI56E-MCM 用于标准过程应用项目。MVI56E-MCMXT 用于 Logix-XT™ 控制平台，可工作在极端环境中。它能耐受更高的工作温度，并且具备在严苛或腐蚀条件下提供保护的敷形涂层。

规格

向后兼容早期的 MVI56-MCM 版本

单插槽 - 与 1756 ControlLogix® 背板兼容

具备 10/100 MB 以太网端口，可通过自动电缆交叉检测功能进行网络配置和诊断

最多可映射 10000 个 16 位寄存器的用户自定义模块数据存储区

使用 ControlLogix 1756-ENxT 模块和 EtherNet/IP® 直通通信方式，对支持 CIPconnect® 的网络进行诊断和监视

使用梯形图逻辑样例或用户自定义指令 (AOI) 在模块和处理器之间进行数据传输以及进行模块配置

4 字符滚动式字母数字 LED 显示屏，以简明的英文显示状态和诊断数据

ProSoft 恢复服务 (PDS) 软件用于在网络上查找模块，分配临时 IP 地址，以便对模块进行访问

功能规格

MVI56E-MCM 在本地或远程机架上运行 (对于数据包较小的远程机架应用项目，请参见 MVI56E-MCMR 产品)

支持 CIPconnect®，可使用 1756-ENxT 模块以 EtherNet/IP 直通通信方式进行模块和网络配置

支持用于浮点数据处理的 Enron 版 Modbus 协议

4 位 LED 显示屏，提供英文状态和诊断信息

PCB 软件附带了强大的 Modbus 网络分析器

使用 MSG 指令通过消息传送 (非预定) 支持特殊功能 (命令控制、事件命令、状态等)

在用户数据存储区中提供错误代码、网络错误计数器和端口状态数据

MVI56-MCM Modbus 主站/从站通信模块

【英文介绍】

With the MVI56E Enhanced Modbus master/Slave communication module, Rockwell Automation ® ControlLogix® processors can easily connect devices using the RTU/ASCII serial communication protocol.

The MVI56E-MCM and MVI56E-MCMXT act as input/output modules on the ControlLogix backplane, making Modbus data look like I/O data to the processor. The data transfer with the processor is asynchronous with the communication on the Modbus network. The module has two independently configurable serial ports that can operate in the same or different Modbus networks. Each port can be configured as a Modbus master or slave, sharing the same user-controlled 10,000-word database.

The two modules are functionally identical. The MVI56E-MCM is used for standard process application projects. The MVI56E-MCMXT is used in the Logix-XT™ control platform to operate in extreme environments. It withstands higher operating temperatures and has a form coating that provides protection under harsh or corrosive conditions.

specification

Backwards compatible with earlier versions of MVI56-MCM

Single slot - Compatible with the 1756 ControlLogix® backplane

10/100 MB Ethernet port for network configuration and diagnostics with automatic cable cross detection

User-defined module data stores that map up to 10,000 16-bit registers

Use the ControlLogix 1756-ENxT module and EtherNet/IP® through communication to diagnose and monitor networks that support CIPconnect®

Data transfer between modules and processors and module configuration using ladder logic samples or user-defined instructions (AOI)

4-character rolling alphanumeric LED display displays status and diagnostic data in plain English

ProSoft Recovery Service (PDS) software is used to find modules on the network, assign temporary IP addresses, and allow access to the modules

Functional specification

MVI56E-MCM runs on local or remote racks (for remote rack applications with smaller packets, see MVI56E-MCMR products)

CIPconnect® support for module and network configuration using the 1756-ENxT module with EtherNet/IP pass-through communication

Support for Enron's Modbus protocol for floating-point data processing

4-digit LED display with English status and diagnostic information

The PCB software comes with a powerful Modbus network analyzer

Support for special functions (command control, event commands, status, etc.) via message delivery (non-scheduled) using MSG instructions

Provides error codes, network error counters, and port status data in the user data store
