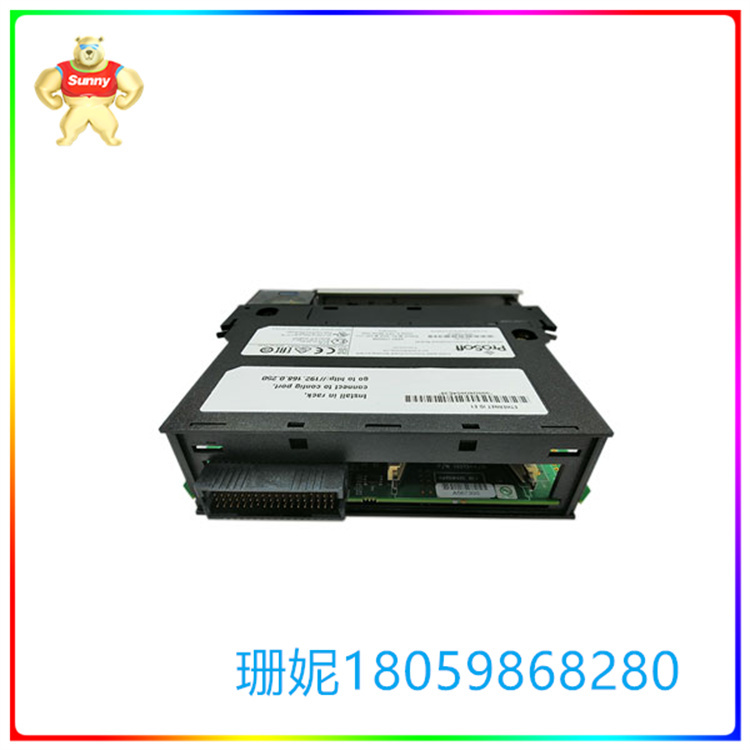

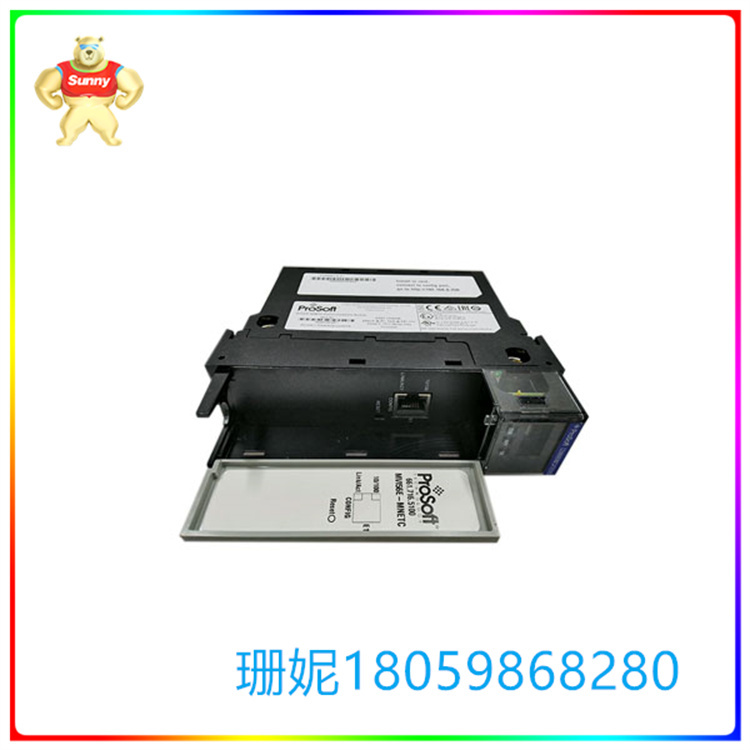

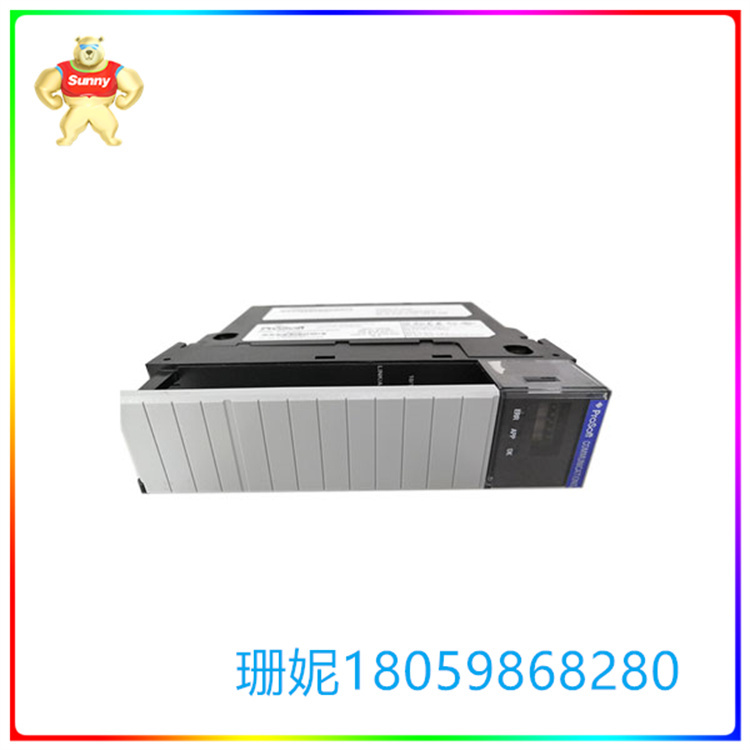

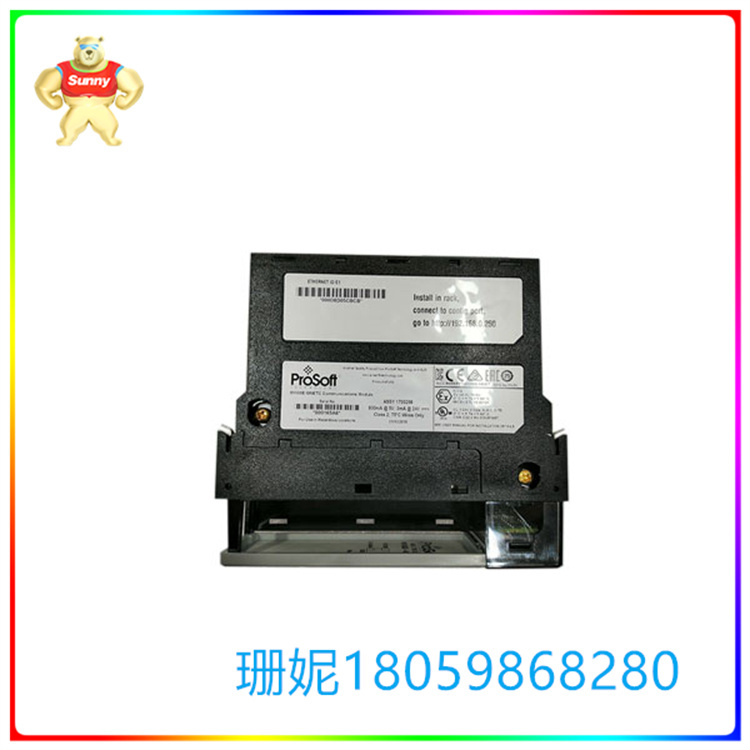

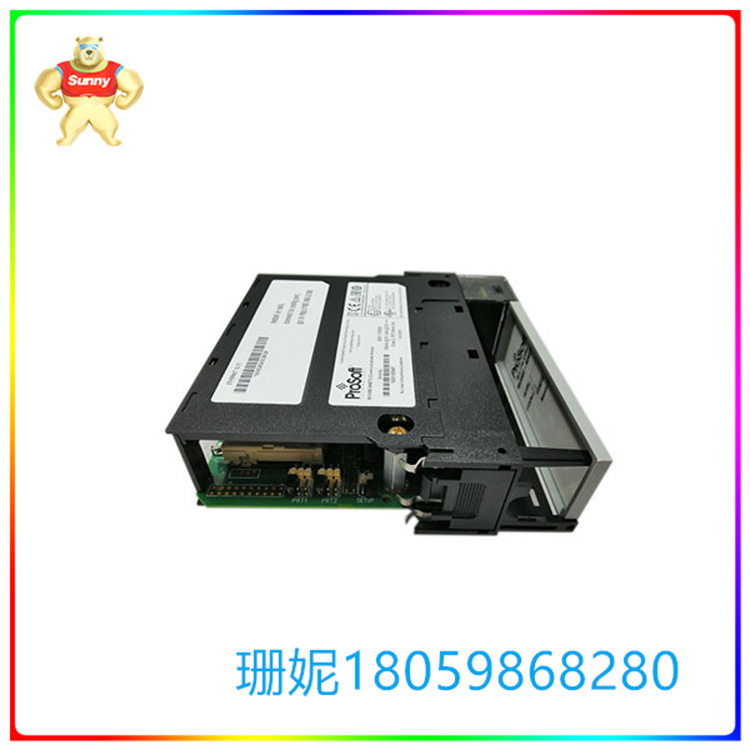

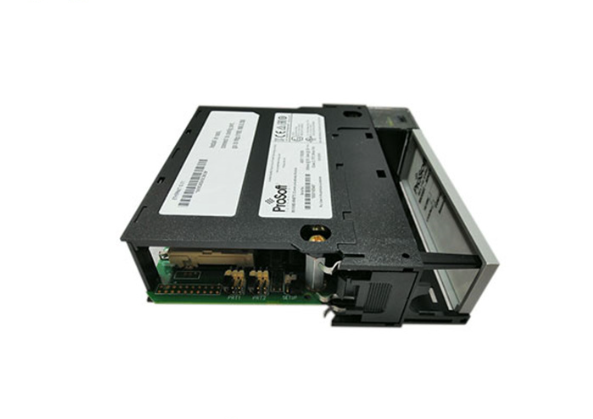

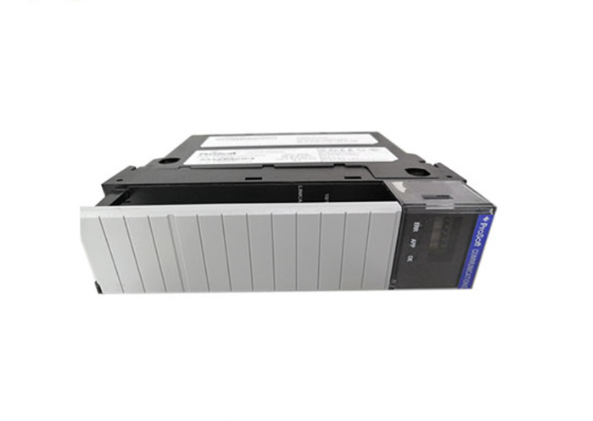

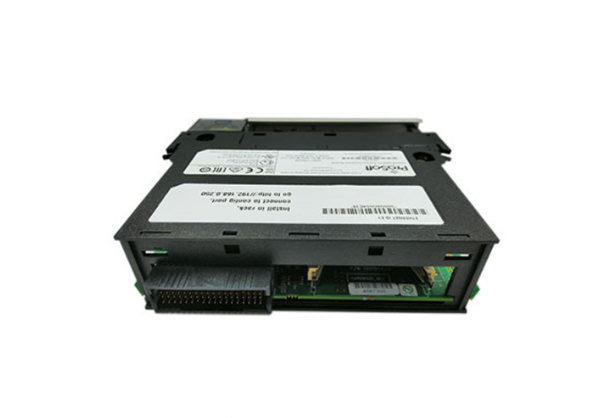

MVI56E-MNETC 增强型网络接口模块 以太网通信端口

【产品详情】

MVI56E-MNETC是ProSoft technology Modbus TCP/IP多客户端/服务器增强型网络接口模块。该模块与ControlLogix平台特别兼容。具体来说，它可以与固件版本10或更高版本的ControlLogix处理器一起使用。该模块占用ControlLogix机箱的单个插槽，可用5v直流电源的耗电量为800mA，可用24v直流电源的耗电量为3 mA。

MVI56E-MNETC使用RSLogix 5000编程软件进行配置。如果与Add-On指令(AOI)一起使用，则需要版本16或更高版本，如果与提供的样本梯形程序一起使用，则版本15或更低版本。除RSLogix 5000软件外，MVI56E-MNETC还要求使用RSLinx classic软件版本2.51或更高版本。此外，它需要ProSoft Configuration Builder(PCB)来向模块输入配置。

MVI56E-MNETC支持多达30个MODBUS客户端和20个MODBUS服务器。该模块保证在多服务器架构中表现出增强的响应，在服务器突然离线的情况下最小化对其他服务器的影响，并通过提供集成数据访问来支持人机界面(HMI)、监控和数据采集(SCADA)以及分布式控制系统(DCS)。

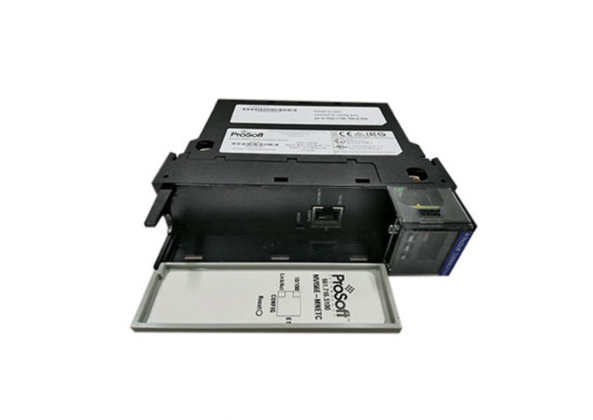

MVI56E-MNETC配有一个以太网通信端口，支持10/100 Mbps传输速率，能够检测自动交叉电缆的使用。它向后兼容以前的MVI56E-MNETC版本，并发布了支持自定义数据映射的10，000字、16位整数。该模块还支持使用工业级CompactFlash卡进行灾难恢复和快速更换。这个CF卡也被称为个性模块。

MVI56E-MNETC设计的背板电流负载在5伏DC下为800毫安，在24伏DC下为3毫安。TCP/IP模块的工作和存储温度分别为0至60摄氏度(32至140华氏度)和-25至70摄氏度(-13至158华氏度)。Modbus TCP/IP模块在服务端口502 (MBAP)上支持多达10个连接，在服务端口2000(封装)上支持多达10个独立服务器。在主服务器中，通过同时与几个服务器通信的能力，支持30个客户端与多达16个命令的连接。MVI56E-MNETC通过服务器、客户端、梯形逻辑和控制器标签提供错误代码、计数器和模块状态。这种Modbus TCP/IP非常灵活，可以与旧版本的Modbus和单槽1756 ControlLogix背板兼容。

MVI56E-MNETC 增强型网络接口模块 以太网通信端口

【英文介绍】

MVI56E-MNETC is a ProSoft technology Modbus TCP/IP multi-client/server enhanced network interface module. This module is particularly compatible with the ControlLogix platform. Specifically, it can be used with ControlLogix processors with firmware version 10 or later. This module occupies a single slot in the ControlLogix chassis and consumes 800mA from 5v DC power and 3 mA from 24v DC power.

MVI56E-MNETC is configured using the RSLogix 5000 programming software. Version 16 or later is required if used with the Add-On Instruction (AOI), and version 15 or lower if used with the provided sample ladder program. In addition to the RSLogix 5000 software, the MVI56E-MNETC also requires RSLinx classic software version 2.51 or later. In addition, it requires a ProSoft Configuration Builder(PCB) to input the configuration to the module.

The MVI56E-MNETC supports up to 30 MODBUS clients and 20 MODBUS servers. The module guarantees enhanced response in multi-server architectures, minimizes impact on other servers in the event of a server suddenly going offline, and supports Human machine interfaces (HMI), supervisory control and data acquisition (SCADA), and distributed control systems (DCS) by providing integrated data access.

The MVI56E-MNETC is equipped with an Ethernet communication port that supports 10/100 Mbps transfer rates and is capable of detecting the use of automatic crossover cables. It is backward-compatible with previous versions of MVI56E-MNETC and has released 10,000-word, 16-bit integers that support custom data mapping. The module also supports disaster recovery and quick replacement using industrial-grade CompactFlash cards. This CF card is also known as the personality module.

The MVI56E-MNETC is designed with a backplane current load of 800 mah at 5 volt DC and 3 mah at 24 volt DC. TCP/IP modules operate and store at temperatures of 0 to 60 degrees Celsius (32 to 140 degrees Fahrenheit) and -25 to 70 degrees Celsius (-13 to 158 degrees Fahrenheit), respectively. The Modbus TCP/IP module supports up to 10 connections on service port 502 (MBAP) and up to 10 independent servers on service port 2000(package). In the master server, 30 clients with up to 16 commands are supported through the ability to communicate with several servers simultaneously. MVI56E-MNETC provides error codes, counters, and module status through server, client, ladder logic, and controller labels. This Modbus TCP/IP is very flexible and compatible with older versions of Modbus and the single-slot 1756 ControlLogix backplane.
