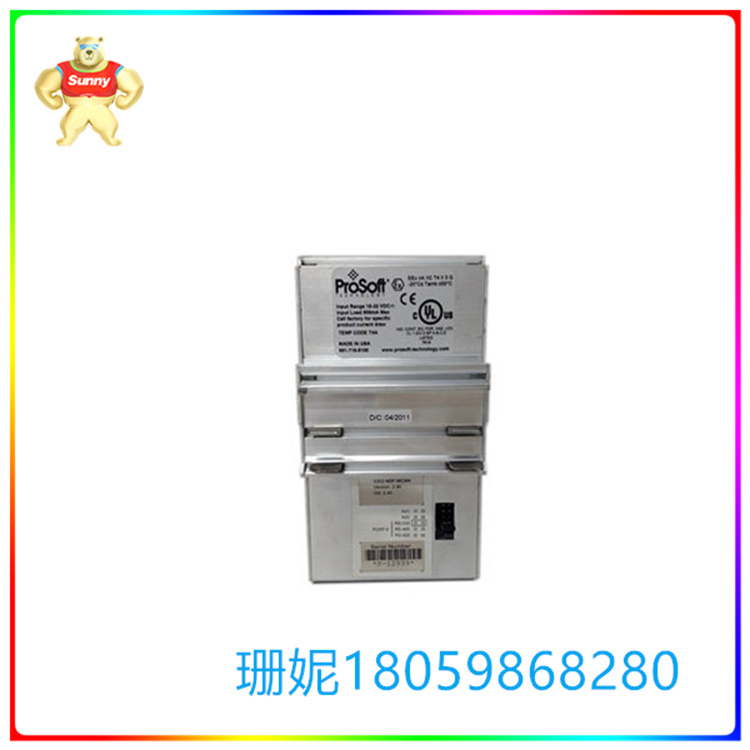

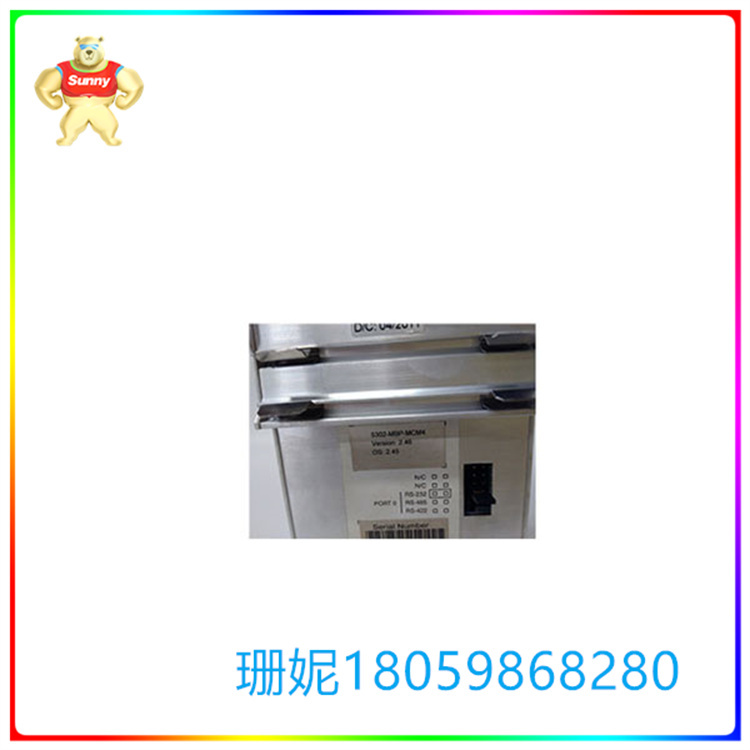

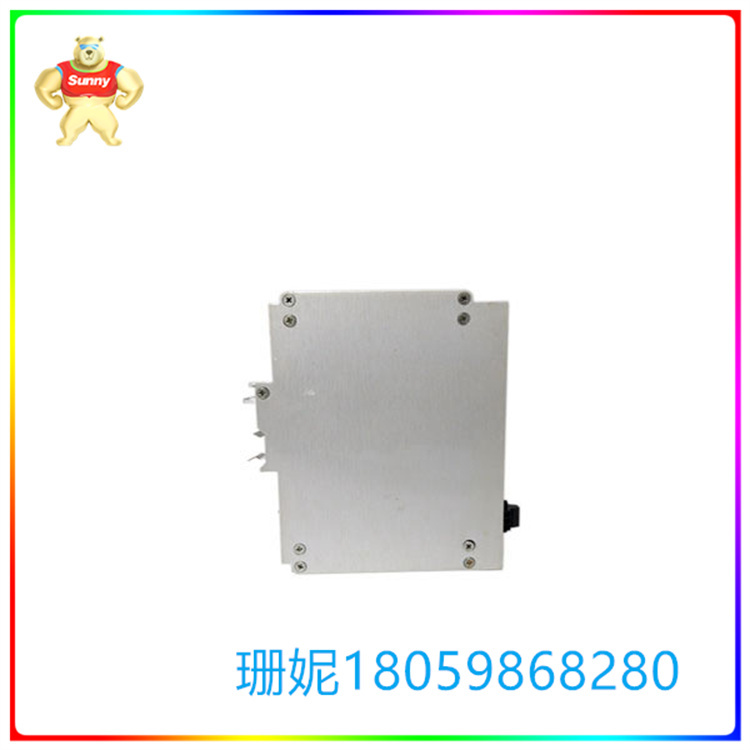

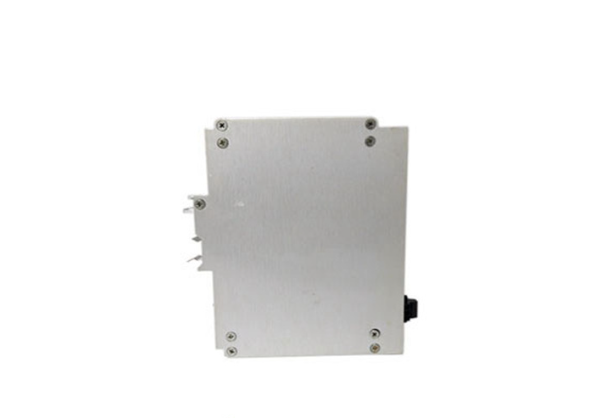

5302-MBP-MCM4 主/从网关 4 端口
【产品详情】
部件号 5302-MBP-MCM4
型号:Modbus Plus 到 Modbus 主/从网关 4 端口
品牌: PROSOFT
概述
ProLinx Modbus Plus to Modbus Master/Slave Gateway 在 Modbus Plus 网络上的设备与 Modbus 设备之间建立了强大的连接。这款独立的 DIN 导轨安装协议网关提供一个 Modbus Plus 端口和多达四个支持 Modbus 的串行端口。 Modbus Plus 协议驱动程序支持 DB9 母 Modbus Plus 端口上协议的主站和从站实现。Modbus Plus端口是完全可配置的。 Modbus 协议驱动程序支持协议的主站和从站实现。所有Modbus串行端口均可单独配置,提供非常强大且灵活的主机或设备接口解决方案。
特点与优势 应用 MBP-MCM 模块是许多应用的理想解决方案,在这些应用中,Modbus Plus 连接可用于将 Modbus 设备集成到系统中。Modbus Plus 网关是一个功能强大的模块,同时支持客户端和服务器,可轻松连接到罗克韦尔自动化 PLC(CLX、SLC、PLC、CPLX 和类似设备)。结合Modbus设备支持,该模块为当今工业市场上使用的许多ASCII设备提供了非常强大的接口。该模块的应用在大多数行业中都有应用,特别是制造业、石油和天然气、电力和食品加工。 规格 内部数据库 ProLinx 模块包含一个内部数据库,该数据库由应用数据、状态信息和配置信息区域组成。 内部数据库在模块上的所有端口之间共享,并用作将信息从一个网络上的设备传递到另一个网络上的一个或多个设备的管道。 应用程序数据区域 数据区域用于通过协议驱动程序存储和检索数据以及协议之间的数据交换。该数据库用作向远程设备写入命令的源,并保存从远程设备收集的数据。配置文件中定义的命令(存储在配置数据区域中)控制在数据库中处理数据的方式。 状态数据区域 此区域用于存储每个端口的错误代码、计数器和端口状态信息。 配置数据区域 此区域包含模块配置信息,如端口配置、网络信息和命令配置。
5302-MBP-MCM4 主/从网关 4 端口
【英文介绍】
Part No. 532-MBP-MCM4
Model: Port 4 from Modbus Plus to Modbus Master/slave gateway
Brand: PROSOFT
summarize
ProLinx Modbus Plus to Modbus Master/Slave Gateway Establishes a strong connection between devices on the Modbus Plus network and Modbus devices. This standalone DIN rail mounting protocol gateway offers one Modbus Plus port and up to four Modbus-enabled serial ports. The Modbus Plus protocol driver supports master and slave implementations of the protocol on the DB9 female Modbus Plus port. The Modbus Plus port is fully configurable. The Modbus protocol driver supports both master and slave implementations of the protocol. All Modbus serial ports can be configured individually to provide a very powerful and flexible host or device interface solution.
The MBP-MCM module is the ideal solution for many applications where the Modbus Plus connection can be used to integrate Modbus devices into the system. The Modbus Plus Gateway is a powerful module that supports both clients and servers and easily connects to Rockwell Automation PLCS (CLX, SLC, PLC, CPLX and similar devices). Combined with Modbus device support, this module provides a very powerful interface to many ASCII devices used in the industrial market today. Applications of this module have applications in most industries, especially manufacturing, oil and gas, power and food processing. Specifications Internal database The ProLinx module contains an internal database consisting of application data, status information, and configuration information areas. The internal database is shared between all ports on the module and is used as a conduit to pass information from devices on one network to one or more devices on another network. Application data areas Data areas are used to store and retrieve data through protocol drivers and for data exchange between protocols. The database is used as a source for writing commands to remote devices and holding data collected from remote devices. The commands defined in the configuration file (stored in the configuration data area) control how data is processed in the database. Status Data area This area is used to store error codes, counters, and port status information for each port. Configuration Data area This area contains module configuration information, such as port configuration, network information, and command configuration.
