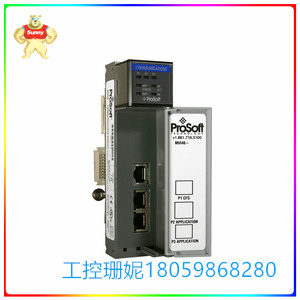

MVI46-MNET TCP客户端/服务器模块 采用 RJ45 端口的形式

☆型号：MVI46-MNET TCP客户端/服务器模块 采用 RJ45 端口的形式

【产品详情】

MVI46-MNET是一个MODBUS TCP客户端/服务器模块。该模块由 Allen-Bradley encompass 合作伙伴公司 ProSoft Technology 制造。该模块主要用于实现与 SLC 5/02 M0/M1 或更新处理器的 MODBUS TCP I/P 连接。它支持客户端和服务器功能，具有支持用户可自定义数据映射的可配置内存，该模块可用于与通过同一网络连接的任何支持 MODBUS TCP 的设备进行通信，并进一步支持与人机界面 （HMI） 系统、监控和数据采集 （SCADA） 系统以及分布式控制系统 （DCS） 的集成。

MVI46-MNET 提供一 （1） 个配置端口，采用 RJ45 端口的形式，支持 RS232 标准，无需握手。它还具有一 （1） 个 RJ45 以太网端口，用作模块的应用端口。它支持 10/100 Mbps 传输速率，带有专用链路和活动 LED 指示灯。它具有 1500 V rms 的电气隔离（在 50 Hz，持续 60 秒）。

MVI46-MNET适用于各种工业应用，如食品加工、石化、纸浆和造纸、汽车制造、水和废水、石油和天然气以及电力和电力工业应用。它带有一个 5000 字寄存器，通过 M0/M1 数据文件传输与 SLC 500 处理器之间的寄存器。

MVI46-MNET 占用 1746 背板的单个插槽，耗电量为 800 mA @ 5.1 VDC，工作温度为 32° F 至 140° F（0° C 至 60° C），存储温度为 -40° F 至 185° F（-40° C 至 85° C），相对湿度为

5% 至 95%（无冷凝）。

☆型号：MVI46-MNET TCP客户端/服务器模块 采用 RJ45 端口的形式

【英文介绍】

MVI46-MNET is a MODBUS TCP client/server module. The module was manufactured by Allen-Bradley encompass partner company ProSoft Technology. This module is mainly used to implement the MODBUS TCP I/P connection with SLC 5/02 M0/M1 or newer processors. It supports both client and server functions, has configurable memory for user-customizable data mapping, and the module can be used to communicate with any MODBUS TCP enabled device connected over the same network. It further supports integration with human machine interface (HMI) systems, supervisory control and Data acquisition (SCADA) systems, and distributed control systems (DCS).

The MVI46-MNET offers one (1) configuration port in the form of an RJ45 port that supports the RS232 standard and does not require a handshake. It also has one (1) RJ45 Ethernet port that serves as an application port for the module. It supports 10/100 Mbps transfer rates with dedicated links and active LED indicators. It has electrical isolation of 1500 V rms (at 50 Hz, lasting 60 seconds).

The MVI46-MNET is suitable for a variety of industrial applications such as food processing, petrochemicals, pulp and paper, automotive manufacturing, water and wastewater, oil and gas, and power and power industry applications. It comes with a 5000-word register, which is transferred between the SLC 500 processor and the M0/M1 data file.

The MVI46-MNET occupies a single slot in the 1746 backplane, consumes 800 mA@ 5.1VDC, and operates at 32° F to 140° F (0° C to 60° C). The storage temperature is -40° F to 185° F (-40° C to 85° C) and the relative humidity is

5% to 95% (no condensation).
