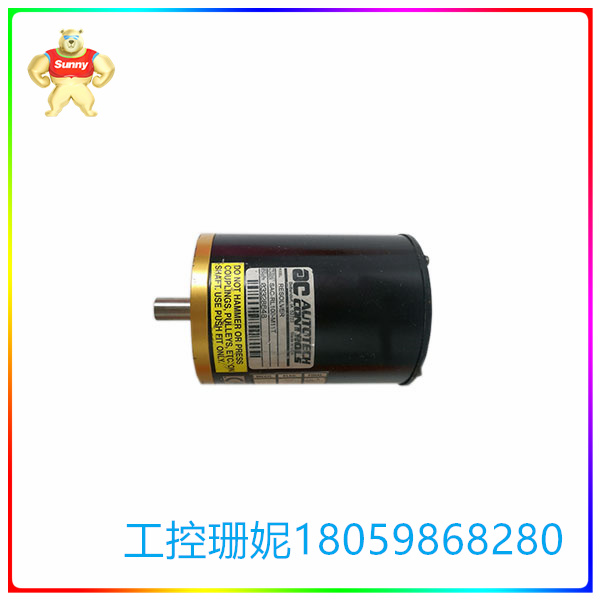

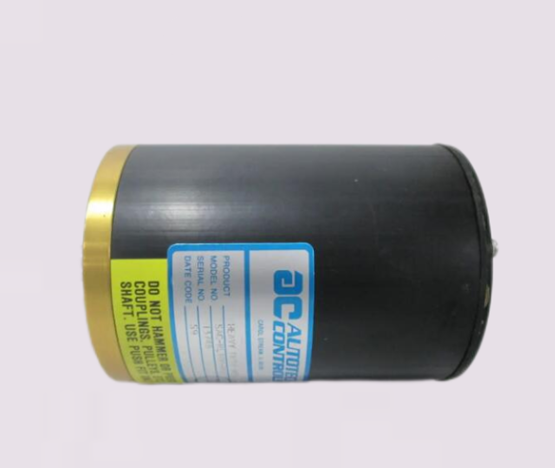

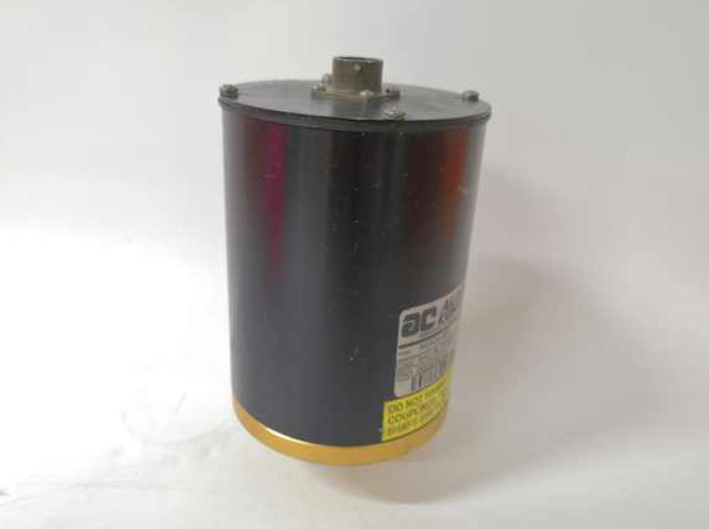

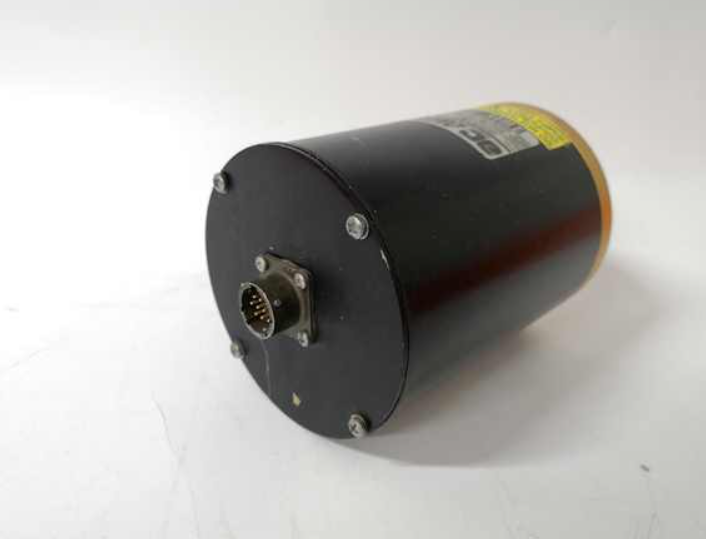

☆型号：SAC-RL100-M11T 解析器 无源换能器
【产品详情】
说明书
解析器
坚固可靠
该解析器是一种高精度、高可靠性的绝对位置轴编码器。解析器有
在航空航天，军事，
在工业上，它们已经使用了几十年位置传感。一些常见的应用是雷达
天线位置传感，导弹制导系统，数控机床机床位置反馈，汽车冲压机，2
片罐制造压力机和包装机。
该解析器设计为在极端高温下可靠运行
恶劣的环境，例如;连续的机械
冲击、振动、极端温度和湿度
变化，油雾，冷却剂和溶剂。
解析器是一个无源换能器。它是一个无刷旋转
有一个转子和两个定子绕组的变压器。绕组的状态与每个绕组在电气上相差0度
其他。当轴转动时，转子的相对位置
定子绕组改变。要么是转子，要么是两个
定子绕组合在一起可以用作无电压变压器的初级绕组，然后次级绕组将产生电压
模拟电压对应轴的位置。
RL100解析器-行业的主力
Autotech的RL100型解决方案是当今行业中最坚固耐用的re解决方案。Autotech有超过25000个
这些解析器在高度可靠的环境中工作
要求苛刻的应用于汽车，罐头制造
以及包装工业。坚固的工业外壳，沉重
责任双列球轴承，和一个内部灵活的couo 连接借给一个非常可靠的设计。
内置齿轮系多转弯应用
Autotech的各种解析器模型都可以使用
内置精密齿轮传动系统。解析器转1次
许多转(见如何订购可用的传动比)
输入轴。
防爆，FM认证
Autotech的E8R系列解决方案已通过FM认证爆炸
符合第1类，Division 1, B, C和D组的要求。
潜水，不锈钢解析器
Autotech的RL101-RM11解析器符合NEMA 6P标准
可在深达100英尺的水下作业。它是
化学上耐各种溶剂，氢化车氢化，水和海水。外壳和所有紧固件都是
316不锈钢。
用于多转应用的双解析器
多轮解析器由耦合到的两个解析器组成
彼此通过齿轮传动。其中一个解析器叫做
精细的分解器，就是这样与机器轴耦合在一起的
它以与机器相同的转速转动，而
另一种解析器称为粗解析器，由
使用的传动比。作为多转解析器的轴
随着机器转动，粗解器保持不变
跟踪转数和精细解析器
在每次旋转中跟踪轴的位置。因此,
两个解析器信号的组合给出了绝对
机的位置。齿轮系采用了一个防侧隙齿轮
消除间隙误差
☆型号：SAC-RL100-M11T 解析器 无源换能器
【英文介绍】
Instruction Manual
Resolvers
Rugged and Reliable
The resolver is a highly accurate and highly dependable device for absolute position shaft encoding. Resolvers have a
reliable track record of applications in aerospace, military,
and industry, where they have been used for decades for position sensing. Some of the common applications are radar
antenna position sensing, missile guidance systems, NC machine position feedback, automotive stamping presses, 2
piece can-manufacturing presses and packaging machines.
The resolver is designed to operate reliable under extremely
hostile environments, such as; continuous mechanical
shock, vibration, extreme temperature and humidity
changes, oil mist, coolants and solvents.
The resolver is a passive transducer. It is a brushless rotary
transformer with one rotor and two stator windings. The stator windings are electrically 0 degrees out of phase with each
other. As the shaft rotates, the relative position of the rotor
and the stator windings change. Either the rotor or the two
stator windings together can be used as the primary of the rotary transformer and the secondary will then produces an
analog voltage corresponding to the shaft position.
RL100 Resolver — The Workhorse of the Industry
Autotech’s Model RL100 resolver is the most rugged resolver in the industry today. Autotech has over 25,000 of
these resolvers operating with extreme reliability in highly
demanding applications in automotive, can-manufacturing
and packing industries. Rugged industrial housing, heavy
duty double row ball bearings, and an internal flexible coupling lend to an extremely reliable design.
Built-in Gear Train for Multi-turn Application
Various resolver models from Autotech are available with a
built-in precision gear train. The resolver makes 1 turn for
many turns (see How to Order for gear ratios available) of
the input shaft.
Explosion Proof, FM Approved
Autotech’s series E8R resolver has FM approved explosion
proof housing and meets the requirements as per Class 1, Division 1, Groups B, C, and D.
Submersible, Stainless Steel Resolver
Autotech’s RL101-RM11 resolver is NEMA 6P compliant
for operation in submersible depths of up to 100 feet. It is
chemically resistant to a wide variety of solvents, hydrocarbons, water, and sea water. The housing and all fasteners are
316 stainless steel.
Dual Resolvers for Multi-Turn Application
A multi-turn resolver consists of two resolvers coupled to
each other through a gear train. One of the resolvers, called
the fine resolver, is coupled to the machine shaft in such a
way that it turns at the same RPM as the machine, while the
other resolver, called the coarse resolver, is geared down by
the gear ratio used. As the shaft of the multi-turn resolver
turns with the machine movement, the coarse resolver keeps
track of the number of revolutions and the fine resolver
keeps track of the shaft position in each revolution. Thus the
combination of the two resolver signals gives the absolute
machine position. The gear train uses an anti-backlash gear
to eliminate backlash errors
