7ML52020EA0 西门子超声波液位计 变送器

【产品详情】

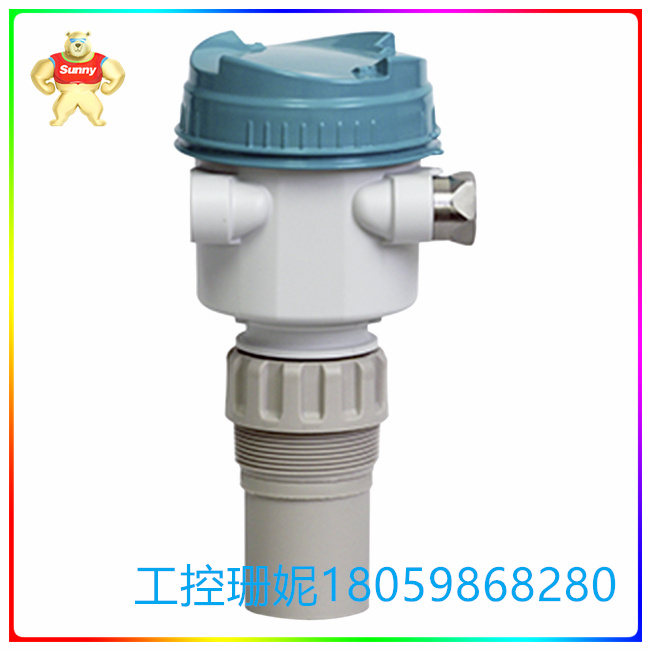

    SITRANS LU180 是一款小量程的一体式超声波物位计. 这款本安型变送器采用 2 线制的 4 到 20 mA 回路进行供电, 是高达 5 米(16.4 ft) 开放式/ 封闭容器内 液体, 浆料和散装物料测量的理想之选.

显著优势

• 易于安装, 编程和维护

• 测量精确, 稳定可靠

• 提供有卫生型产品

• 采用声智能回波处理技术

• 内置温度补偿功能

应用范围

    SITRANS LU180超声波液位传感器,7ML5202-0EA0超声波液位计/物位计基于声智能回波处理算法, 可有效确保物位测量数据的可靠性. 该技术通过滤波功能, 从声电噪音和搅拌器叶片运动所产生的虚假回波中准确地识别出物位的真实回波. 超声波脉冲传送到物料并返回的时间进行温度补偿后, 会转换为距离值进行显示和模拟输出。

• 主要应用领域: 化学品储罐, 滤池, 泥槽, 液体储罐, 食品应用。

SITRANS LU180主要参数

测量原理：超声波物位测量

量程：0.25 ... 5 m (0.8 ... 16.4 英尺)

频率：54 kHz

输出：mA 4 ... 20 mA

供电电压：12 ... 30 V DC, 0.1 A 浪涌

最大功耗0.75 W (25 mA, 24 V DC)

认证证书

CSA:

IS/ Class I, II, III, Div. 1,

组: A, B, C, D, E, F, G T4

FM:

IS/ Class I, II, III, Div. 1,

组: A, B, C, D, E, F, G T4

ATEX:

II 1G Ex ia IIC T4 Ga

IECEx Ex ia IIC T4 Ga精度

• 测量误差测量范围的 0.25 % ( 空气中)

• 分辨率3 mm (0.125 英寸)

• 温度补偿内置

• 回波处理

• 声智能

额定工作条件

• 波束角：12°

• 环境温度

- 标准：-30 ... +60 °C (-22 ... +140 °F)

- 金属安装“”-20 ... +60 °C (-4 ... +140 °F)

• 最大静态工作压力：正常大气压

设计

• 重量：1.3 kg (2.9 磅)

• 物料

- 电子外壳：PBT

- 传感器：PVDF 聚合物

• 防护等级：IP68 / NEMA 6 / TYPE 6

• 过程连接：2" NPT [( 锥形), ANSI/ASMEB1.20.1],R 2" [(BSPT), EN 10226] 或G 2" [(BSPP), EN ISO 228-1]

• 法兰适配器：3" 通用,( 适于 DN 65, PN10 和 3" ASME)4 英寸卫生型

7ML52020EA0 西门子超声波液位计 变送器

【英文介绍】

SITRANS LU180 is an all-in-one ultrasonic level meter with a small range. Powered by a 2-wire 4 to 20 mA loop, this intrinsic safety transmitter is ideal for measuring liquids, slurries and bulk materials in open/closed containers up to 5 m (16.4 ft).

Significant advantage

• Easy to install, program and maintain

• Accurate measurement, stable and reliable

• Provide hygienic products

• Adopt acoustic intelligent echo processing technology

• Built-in temperature compensation function

Scope of application

SITRANS LU180 ultrasonic level sensor,7ML5202-0EA0 ultrasonic level meter/level meter based on acoustic intelligent echo processing algorithm, can effectively ensure the reliability of level measurement data. The technique can accurately identify the true echo of the object level from the false echo generated by the acoustic and electric noise and the movement of the agitator blade through the filtering function. After temperature compensation for the time of ultrasonic pulse transmission to the material and return, it will be converted to the distance value for display and analog output.

• Main application areas: chemical storage tank, filter, mud tank, liquid storage tank, food application.

SITRANS LU180 Specifies the main parameters

Measurement principle: ultrasonic level measurement

Range: 0.25... 5 m (0.8... 16.4 feet)

Frequency: 54 kHz

Output: mA 4... 20 mA

Supply voltage: 12... 30 V DC, 0.1 A surge

Maximum power consumption 0.75W (25 mA, 24 V DC)

Certification certificate

CSA:

IS/ Class I, II, III, Div. 1,

Group: A, B, C, D, E, F, G T4

FM:

IS/ Class I, II, III, Div. 1,

Group: A, B, C, D, E, F, G T4

ATEX:

II 1G Ex ia IIC T4 Ga

IECEx Ex ia IIC T4 Ga accuracy

• Measurement error 0.25% of the measurement range (in air)

• Resolution 3 mm (0.125 in)

• Temperature compensation built in

• Echo processing

• Acoustic intelligence

Rated operating condition

• Beam Angle: 12°

• Ambient temperature

- Standard: -30... +60 °C (-22 ...  +140 °F)

- Metal mounting "-20... +60 °C (-4 ...  +140 °F)

• Maximum static working pressure: normal atmosphere

design

• Weight: 1.3 kg (2.9 lb)

• Materials

- Electronic housing: PBT

- Sensor: PVDF polymer

• Protection level: IP68 / NEMA 6 / TYPE 6

• Process connection: 2" NPT [(tapered), ANSI/ASMEB1.20.1],R 2" [(BSPT), EN 10226] or G 2" [(BSPP), EN ISO 228-1]

• Flange adapter: 3" universal,(for DN 65, PN10 and 3" ASME)4 "sanitary type
