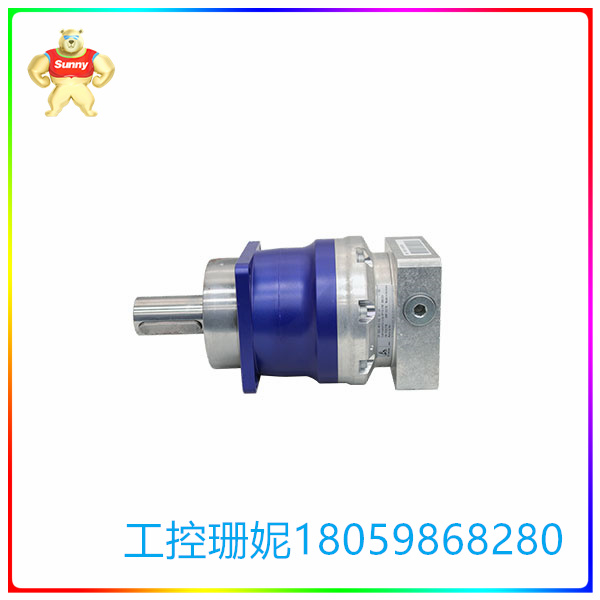

SP060S-MF2-20-1C1-2S 旋转伺服电机用高端齿轮系列

【产品详情】

AG2300 系列的低背隙、高性能行星减速机在所有 14 种传动比中均提供高扭矩、低扭转背隙和非常低的噪音水平。旋转伺服电机的高端减速机具有高功率密度，能够吸收高径向力和轴向力。该斜齿轮减速机系列的高质量和运行平稳性满足了最高的控制质量要求。

MF 标准型号可实现高定位精度和高动态操作周期（占空比 < 60%）。高速 MC 型号适用于在连续运行中以高标称速度进行定位（占空比 > 60%）。

AG2300系列减速机与旋转伺服电机完美匹配。在 TwinCAT 3 Motion Designer 中，可以直接在 TwinCAT 中使用 Motion Designer 方便地计算惯性比、所需的扭矩和合适的电机。此外，该工具只需一步即可检查所选电机是否可以适应减速机。行星减速机在工厂安装到相应的电机上，并作为完整的电机/减速机交付。

特征

配备输出轴

标准型 MF 用于在高动态操作循环中实现高定位质量，高速型 MC 用于在连续运行中实现高速

提供 7 或 6 种尺寸

分子式：SP060 至 SP240

MC：SP075 至 SP240

加速扭矩在 36 至 5400 Nm 之间

高轴向力和径向力

最高效率，最高功率密度

低扭转背隙

采用斜齿轮传动装置，运行噪音低，运行平稳

终身润滑

IP65防护等级;任何安装位置

SP060S-MF2-20-1C1-2S 旋转伺服电机用高端齿轮系列

【英文介绍】

The AG2300 series of low-backlash, high-performance planetary reducers deliver high torque, low torsional backlash and very low noise levels in all 14 transmission ratios. The rotary servo motor's high-end reducer has a high power density and can absorb high radial and axial forces. The high quality and smoothness of the helical gear reducer series meet the highest control quality requirements.

The MF standard model enables high positioning accuracy and high dynamic operating cycles (duty cycle < 60%). The high speed MC model is suitable for positioning at high nominal speeds (duty cycle > 60%) in continuous operation.

The AG2300 series reducer perfectly matches the rotary servo motor. In TwinCAT 3 Motion Designer, you can easily calculate the inertia ratio, desired torque and suitable motor directly in TwinCAT using Motion Designer. In addition, the tool checks in one step whether the selected motor can be adapted to the reducer. The planetary reducer is installed on the corresponding motor at the factory and delivered as a complete motor/reducer.

trait

Equipped with output shaft

The standard MF is used to achieve high positioning quality in highly dynamic operation cycles, and the high-speed MC is used to achieve high speed in continuous operation

Available in 7 or 6 sizes

Molecular formula: SP060 to SP240

MC: SP075 to SP240

Acceleration torque is between 36 and 5400 Nm

High axial and radial forces

Highest efficiency, highest power density

Low torsional back clearance

Bevel gear transmission device, low noise, stable operation

Lifetime lubrication

IP65 protection grade; Any mounting position
