REU615E_D 电压保护测控装置 全面的保护控制功能

【产品详情】

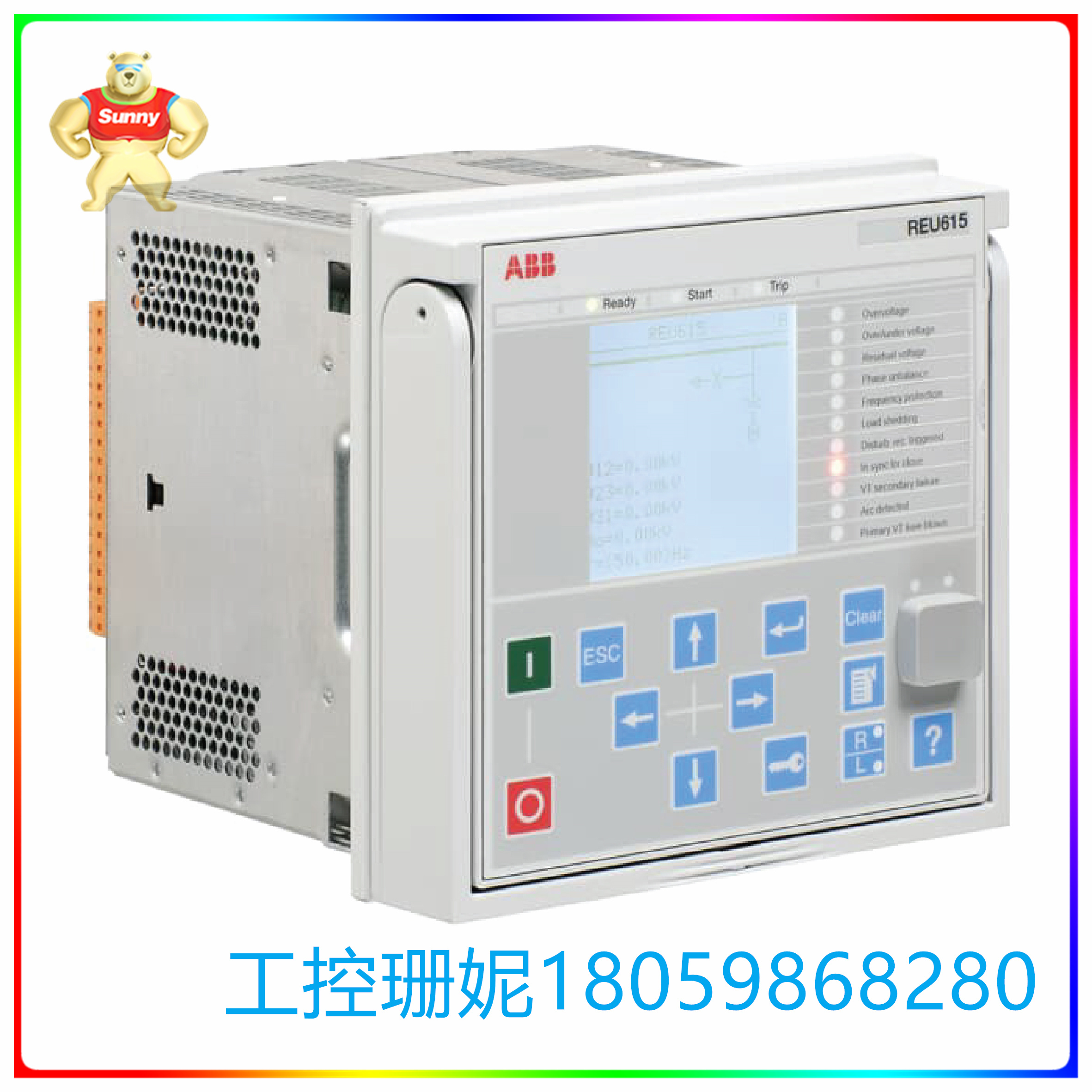

REU615 电压保护测控装置

为电压和频率提供结构紧凑且多功能的解决方案

REU615 电压保护测控装置, 在公用和工业配电系统（包括具有分布式发电的电网）中可以很好地满足电压和频率的保护。REU615 IEC电压保护测控装置也是电压调节的理想装置。

RREU615 电压保护测控装置有两种标准配置方案可选：标准配置 A 和标准配置 B。

标准配置 A 可应用于母线低压和过压监视、甩负荷（切断）及负荷恢复（ 重接）等应用。该配置也可用于发电机和其他交流设备（例如电容器组）的过频和低频保护。在发电机及电动机保护应用中，REU615 还可通过检测频率和电压的偏移来提供辅助保护。集成的检同期功能确保了设备与电网的可靠连接。在具有分布式发电的配电网中，REU615 还可作为单个发电单元的解列保护（LOM－Loss-of-mains）。

标准配置 B 可应用于具有电动有载调压开关变压器的电压手动或自动调节。在只有一个变压器的小型变电站中，REU615 可用于负荷侧电压调节。标准配置 B 也具有保护功能。

REU615 IEC电压保护测控装置是 ABB Relion® 产品家族中的 615 产品系列的成员。

主要优势

带自动有载调压功能的电压和频率保护

自动和手动调压，可用于母线的欠压和过压监控，减载和恢复

具有预配置好的的标准配置，亦可通过功能配置快速简便地满足不同的应用需求

快速安装和测试的可插拔式设计

带可编辑单线图的大液晶显示，可通过本地或基于 Web 浏览器的易于使用的 HMI 来访问

周到的产品全生命周期服务

主要特性

全面的保护控制功能，适用于母线电压监视、负荷减载和恢复，包括高频保护和低频保护功能

具备自动有载调压功能

可选的弧光保护和高速出口（不可和自动调压功能并存）

支持 IEC61850 第一版和第二版，包括冗余HSR和RPR，GOOSE 和 IEC61850-9-2 LE

支持 IEEE 1588 v2 高精密时间协议

支持 MODBUS、DNP3 和 IEC 60870-5-103

REU615E_D 电压保护测控装置 全面的保护控制功能

【英文介绍】

REU615 Voltage protection measurement and control device

Compact and versatile solutions for voltage and frequency

The REU615 voltage protection measurement and control device is well suited for voltage and frequency protection in public and industrial distribution systems, including grids with distributed generation. The REU615 IEC voltage protection measure and control unit is also ideal for voltage regulation.

The RREU615 voltage protection measurement and control device is available in two standard configurations: Standard A and Standard B.

Standard Configuration A can be used in applications such as bus low and overvoltage monitoring, load rejection (cut-off) and load recovery (reconnection). This configuration can also be used for over - and low-frequency protection of generators and other AC equipment, such as capacitor banks. In generator and motor protection applications, the REU615 also provides auxiliary protection by detecting frequency and voltage offsets. The integrated check synchronization function ensures a reliable connection between the equipment and the grid. In distribution networks with distributed generation, the REU615 also acts as a lem-loss-of-mains protection for a single generation unit.

Standard Configuration B can be used for manual or automatic voltage regulation with electric on-load regulator switch transformers. In small substations with only one transformer, the REU615 can be used for load side voltage regulation. Standard configuration B also has protection.

The REU615 IEC Voltage Protection measurement and Control unit is a member of the 615 product family in ABB's Relion® product family.

Major advantage

Voltage and frequency protection with automatic on-load regulation

Automatic and manual voltage regulation can be used for bus undervoltage and overvoltage monitoring, load reduction and recovery

With pre-configured standard configurations, you can also quickly and easily meet different application requirements through functional configuration

Pluggable design for quick installation and testing

Large LCD display with editable single line charts, accessible locally or via an easy-to-use HMI based Web browser

Thoughtful product life cycle service

Main characteristics

Comprehensive protection control functions for bus voltage monitoring, load shedding and recovery, including high frequency protection and low frequency protection functions

With automatic on-load voltage regulation function

Optional arc protection and high speed outlet (not compatible with automatic voltage regulation)

IEC61850 1st and 2nd editions are supported, including redundant HSR and RPR, GOOSE and IEC61850-9-2 LE

Support IEEE 1588 v2 high precision time protocol

Supports MODBUS, DNP3, and IEC 60870-5-103
