V7768-122000  单板计算机 大型黑色端子板

【产品详情】

IS200TRLYH1B在其左边缘包含两(2)个大型黑色端子板。每个接线板都有二十四(24)个银色金属端子。这总共增加了四十八(48)个终端。每一个端子都用白字标在端子板上。四(4)个连接器端口位于is 200 try h1 b的右边界。三(3)个连接器端口在边缘垂直对齐，最后一个与底部的连接器端口平行。在IS200TRLYH1B的中心附近有一长串继电器，它们是白色和黑色的，带有形状像立方体的透明盖子。这些元件用黑线连接到PCB上。每个继电器的两侧是一个黑色的圆形晶体管。与每个晶体管配对的是一个圆形的红色MOV或金属氧化物变阻器。这些继电器中的五(5)个垂直排列在is 200 try h1 b的上半部分。五(5)个额外的继电器排列在PCB的下半部分。

概述

与各种真实世界的外部设备连接

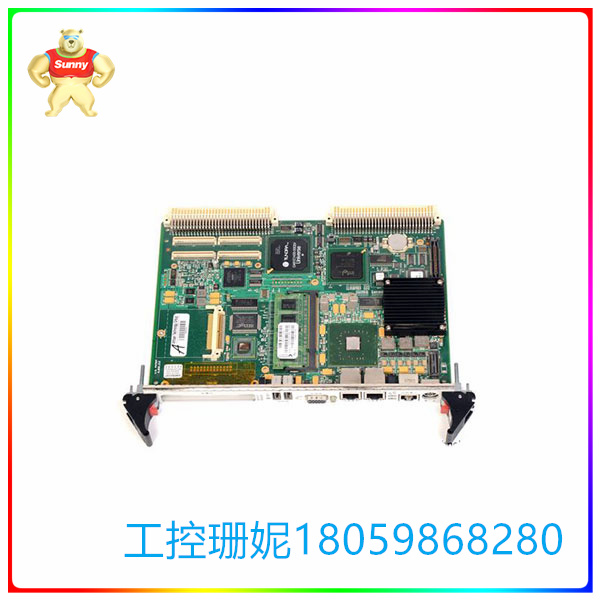

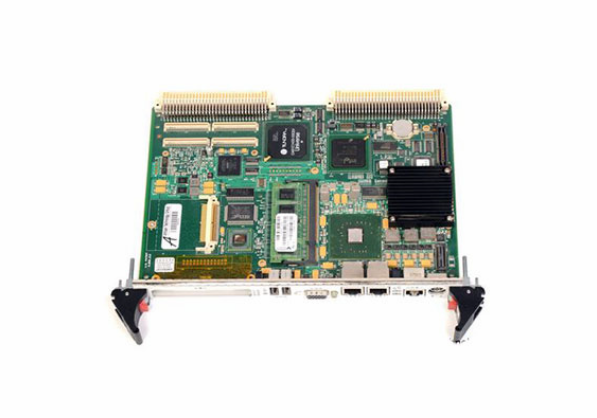

V7768 双插槽 VME 单板计算机 （SBC） 为系统设计人员提供了灵活性，能够经济高效地适应广泛而多样的 I/O 功能，同时提供出色的处理性能。

灵活性和易用性

V7768 是 Abaco Systems 首批利用英特尔双核架构功能的产品之一，通过英特尔酷睿 2 双核处理器、英特尔 945GME 高速芯片组和丰富的 I/O 集提供高达 2.16 GHz 的处理速度。为了简化安装和维护，V7768 集成了 EasyRail PMC 安装系统，允许在只能从外露的“顶部”侧进行访问时安装 PMC 选件板。无需拆卸多槽托架组件即可接触到 PMC 安装螺钉，从而大大缩短了配置时间。

V7768-122000  单板计算机 大型黑色端子板

【英文介绍】

The IS200TRLYH1B contains two (2) large black terminal boards on its left edge. Each patch board has twenty-four (24) silver metal terminals. This adds a total of forty-eight (48) terminals. Each terminal is marked in white on the terminal board. Four (4) connector ports are located on the right border of the is 200 try h1b. Three (3) connector ports are aligned vertically at the edges, with the last one parallel to the connector port at the bottom. Near the center of the IS200TRLYH1B is a long string of relays, which are white and black with transparent LIDS shaped like cubes. These components are connected to the PCB with black wires. Each relay is flanked by a black circular transistor. Paired with each transistor is a round red MOV or metal oxide rheostat. Five (5) of these relays are arranged vertically on the top half of the is 200 try h1b. Five (5) additional relays are arranged on the bottom half of the PCB.

summarize

Connect to a variety of real-world external devices

The V7768 dual-slot VME single-board Computer (SBC) provides system designers with the flexibility to cost-effectively accommodate a wide variety of I/O functions while providing outstanding processing performance.

Flexibility and ease of use

The V7768 is one of Abaco Systems' first products to take advantage of the capabilities of Intel's dual-core architecture, delivering processing speeds of up to 2.16 GHz through an Intel Core 2 Duo processor, Intel 945GME high-speed chipset, and a rich I/O set. To simplify installation and maintenance, the V7768 integrates the EasyRail PMC mounting system, allowing the PMC option board to be installed when accessible only from the exposed "top" side. The PMC mounting screws can be accessed without removing the multi-slot bracket assembly, greatly reducing configuration time.

V7768-122000  单板计算机 大型黑色端子板
