2711-K10G9L1 触摸操作界面终端 监督任何工业应用活动

【产品详情】

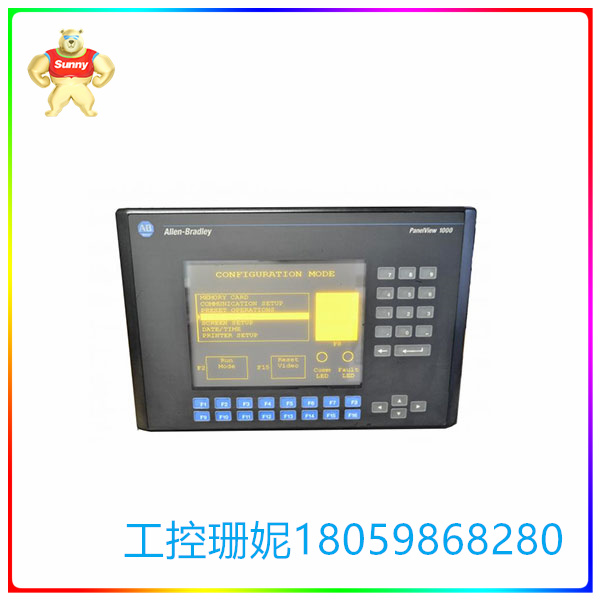

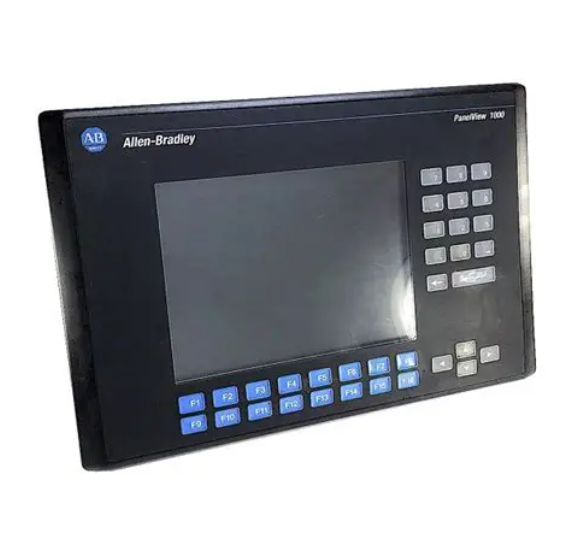

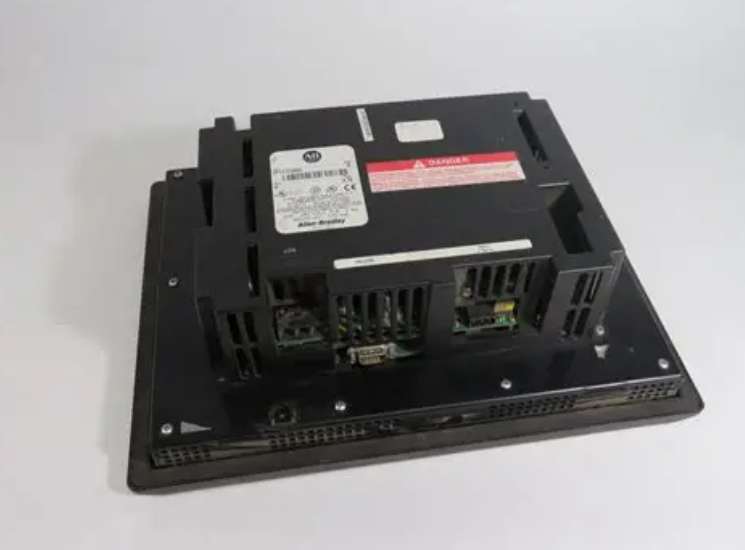

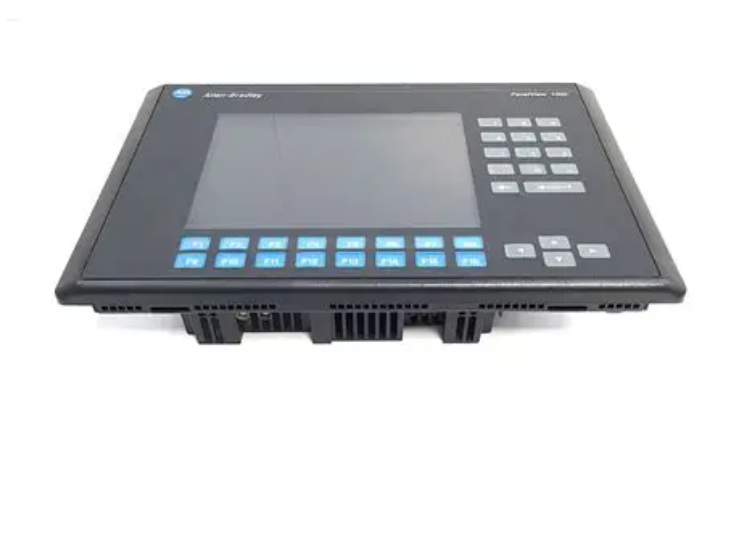

Allen-Bradley 2711-K10G9L1 终端是一款键盘/触摸操作界面终端，属于 PanelView 系列标准终端，特别是 1000 终端子系列，旨在控制和监督任何工业应用活动。该终端向主管提供所有必要的信息，使他们能够检查网络中包含的不同设备的状态，发送和接收数据，并对流程进行即时修改。该装置由 Allen-Bradley 开发。2711-K10G9L1接口终端的主要优点是操作员能够从1个特定位置监视和控制不同的过程，从而节省了旅行时间和库存成本。重要的是，它的安装和编程过程必须由合格的专家执行，以避免在操作过程中出现问题。遵循安装手册中提到的所有步骤也很重要。

Allen-Bradley 2711-K10G9L1 键盘/触摸操作界面终端的键盘采用不锈钢薄膜制造，包括导航键和功能键，所有这些键的驱动额定值为 100 万次按下。需要注意的是，此键盘使监视和插入新变量和数据的过程变得容易。Allen-Bradley 2711-K10G9L1 键盘/触摸操作界面终端的通信选项是 RS-232 （DH-485） 端口，其中包含打印机。它还具有 310 KB 的 RAM 容量和 1008 KB 的非易失性存储器容量。可以通过应用 Allen-Bradley 配件目录中的兼容存储卡来扩展此内存。它配备了一个 10 英寸的屏幕，运输重量约为 7.2 磅。

2711-K10G9L1 触摸操作界面终端 监督任何工业应用活动

【英文介绍】

The Allen-Bradley 2711-K10G9L1 terminal is a keyboard/touch interface terminal that belongs to the PanelView family of standard terminals, specifically the 1000 Terminal sub-family, designed to control and supervise any industrial application activity. The terminal provides supervisors with all the necessary information to enable them to check the status of different devices contained in the network, send and receive data, and make instant modifications to processes. The device was developed by Allen-Bradley. The main advantage of the 2711-K10G9L1 interface terminal is the operator's ability to monitor and control different processes from one specific location, thus saving travel time and inventory costs. It is important that its installation and programming process be carried out by qualified experts to avoid problems during operation. It is also important to follow all the steps mentioned in the installation manual.

The Allen-Bradley 2711-K10G9L1 keyboard/touch-operated interface terminal's keyboard is made of stainless steel film and includes navigation and function keys, all of which have a drive rating of 1 million presses. It should be noted that this keyboard makes the process of monitoring and inserting new variables and data easy. The communication option for the Allen-Bradley 2711-K10G9L1 keyboard/touch-operated interface terminal is the RS-232 (DH-485) port, which contains the printer. It also has 310 KB of RAM capacity and 1008 KB of non-volatile memory capacity. This memory can be extended by applying compatible memory cards from the Allen-Bradley Accessories catalog. It comes with a 10-inch screen and has a shipping weight of about 7.2 pounds.

2711-K10G9L1 触摸操作界面终端 监督任何工业应用活动
