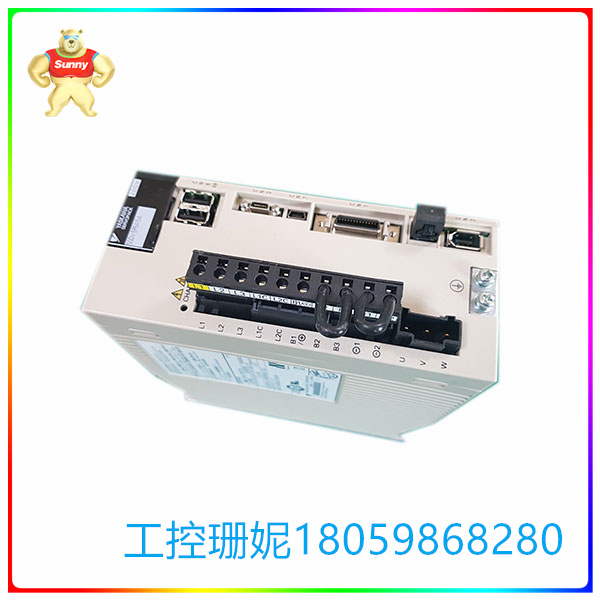

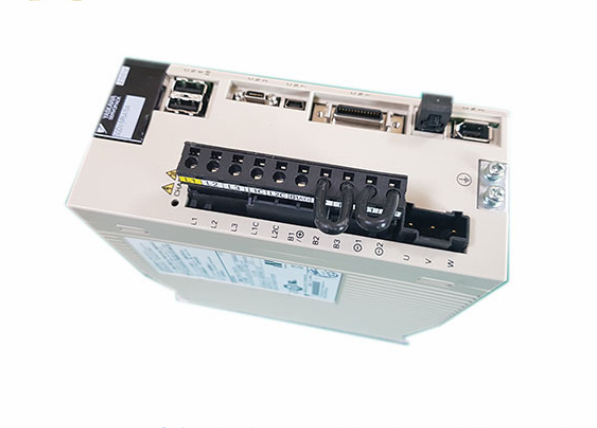

SGDV-3R5D21A 伺服驱动器 实现实时通信

【产品详情】

SGDV3R5D21A

伺服驱动

阿兹。SIGMA5

400伏

1.0千瓦ML3 ROT

大适用电机容量：1kw。

电源电压：三相AC400V。

设计顺序：A型。

接口：MECHATROLINK-Ⅲ通信指令型（旋转型伺服电机用）。

选配（硬件）：基座安装型（标准）。

实现实时通信

以大的传送速度100Mbps和可设定的通信周期125s～4ms，实现了多62站的高速控制。

通过通信速度的高速化，可实时收发各种控制用信息。

为节省成本做贡献

条通信线路多可连接62站，可大幅削减配线成本和时间。

上位控制器的指令连接器仅需1个，

而且无需速度/转矩指令用D/A转换器或位置指令用脉冲发生器。

实现了的运动控制

除了转矩、位置和速度控制，还可实现精度要求极高的同步相位控制。

由于可在线切换控制模式，因此可更有效、平滑地实现复杂的机械动作。

SGDV-3R5D21A 伺服驱动器 实现实时通信

【英文介绍】

SGDV3R5D21A

Servo drive

Az. SIGMA5

400 volts

1.0 kW ML3 ROT

Large motor capacity: 1kw.

Power supply voltage: three-phase AC400V.

Design sequence: Type A.

Interface: MECHATROLINK-Ⅲ communication instruction type (for rotary servo motor).

Optional (hardware) : Pedestal mount (standard).

Realize real-time communication

With a large transmission speed of 100Mbps and a configurable communication cycle of 125s ~ 4ms, the high-speed control of more than 62 stations is realized.

Through the high communication speed, various control information can be sent and received in real time.

Contribute to cost savings

One communication line can connect 62 stations, which can greatly reduce the wiring cost and time.

The upper controller requires only 1 command connector,

And no D/A converters for speed/torque instructions or pulse generators for position instructions.

Achieved motion control

In addition to torque, position and speed control, synchronous phase control with high precision is also possible.

Because control modes can be switched online, complex mechanical actions can be realized more efficiently and smoothly.
