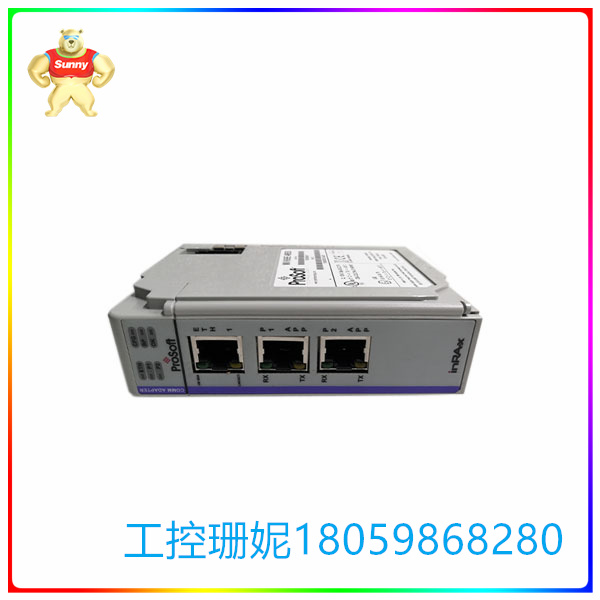

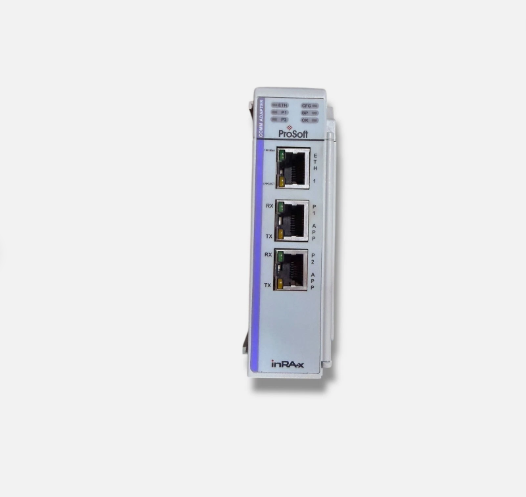

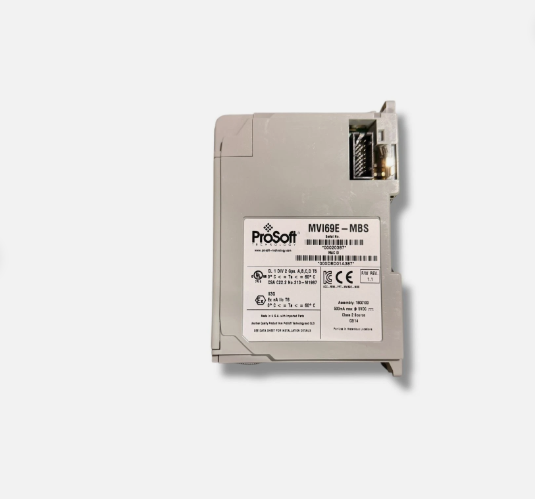

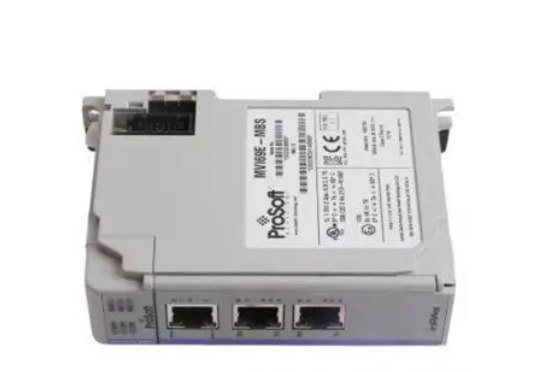

MVI69E-MBS 串行增强型通信模块

【产品详情】

Modbus 串行增强型通信模块

MVI69E-MBS

用于 CompactLogix™ 的 MVI69E-MBS Modbus 串行模块设计用于所有具有 Modbus 串行连接要求的应用。

该模块配有附加配置文件和附加指令，从而缩短调试时间。

MVI69E-MBS 有两个串行端口，可支持主站和/或从站连接至各种使用 Modbus 协议的设备。

特性 优势

用户自定义标签UDT，为 I/O、模块状态和控制数据提供逻辑定义。

附加配置文件支持 RSLogix 5000，改进 CompactLogix 系统的集成

RSLogix 5000 控制器标签中包含诊断数据，可根据节点工作状况作出决策

CompactLogix 项目中备份模块配置 (ACD 文件)

模块作为协作处理器，无需占用CPU资源减少对 PLC 扫描时间的影响

数据存储区可达10000个字

每个Modbus端口最多可支持 250 条 命令

每个Modbus端口可以分别配置为 Modbus 主站或 Modbus 从站设备

支持 Enron 和 Daniel 式浮点数据实现

适用于 SCADA 和各类Modbus现场设备接口应用

支持具有 1769 I/O 总线能力的 CompactLogix 处理器 (不支持 MicroLogix 1500)

MVI69E-MBS 串行增强型通信模块

【英文介绍】

Modbus Serial enhanced communication module

MVI69E-MBS

The MVI69E-MBS Modbus Serial module for CompactLogix™ is designed for all applications with Modbus serial connectivity requirements.

The module comes with additional configuration files and additional instructions to reduce debugging time.

The MVI69E-MBS has two serial ports that enable master and/or slave station connections to various devices using the Modbus protocol.

Characteristic advantage

User-defined label UDTs that provide logical definitions for I/O, module status, and control data.

Additional profile support for RSLogix 5000 improves integration of CompactLogix systems

The RSLogix 5000 controller label contains diagnostic data to make decisions based on node health

Backup module configuration in the CompactLogix project (ACD file)

As a cooperative processor, the module does not need to occupy CPU resources to reduce the impact on PLC scan time

Data storage area up to 10,000 words

Each Modbus port supports a maximum of 250 commands

Each Modbus port can be configured as a Modbus master or Modbus slave device, respectively

Support Enron and Daniel floating-point data implementation

Suitable for SCADA and various Modbus field device interface applications

Support for CompactLogix processors with 1769 I/O bus capability (MicroLogix 1500 not supported)
