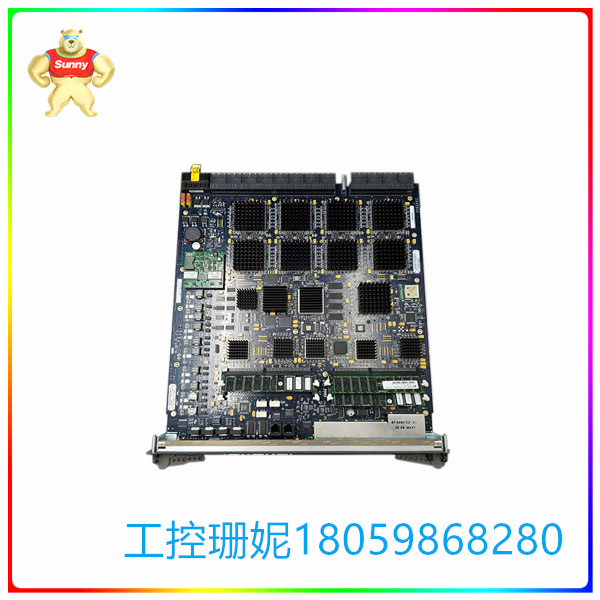

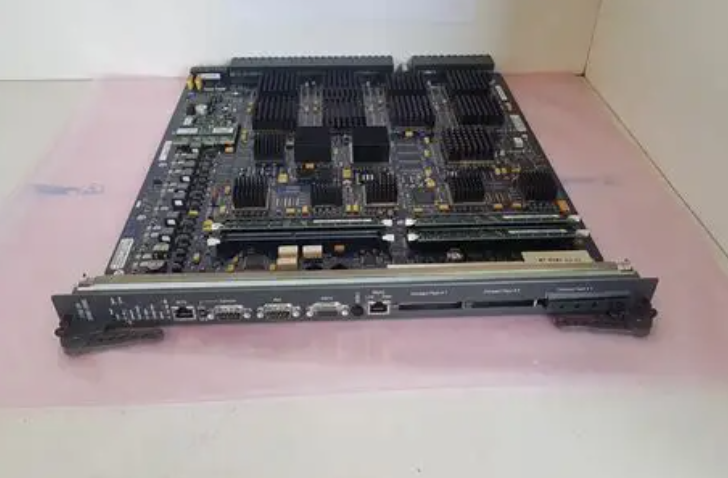

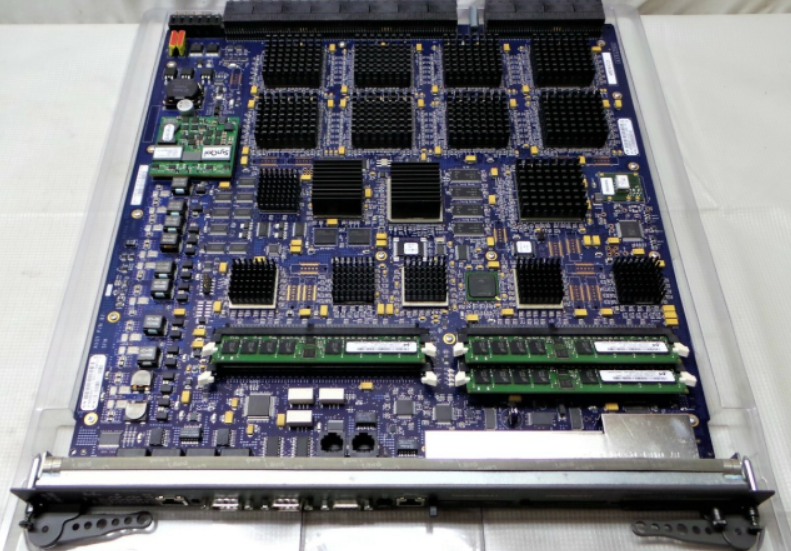

SFM2-200G I/O系统和模块 高级模块兼容

【产品详情】

I/O系统和模块，旨在满足灵活的工业解决方案的需求。除此之外，它还配备32KB的用户内存、4K I/O、8个机架和0.22msec/K的逻辑执行。它与以太网、各种总线模块和控制等高级模块兼容。该模块采用单一整体结构设计，非常适合数千种应用，如复杂的运动控制、采矿、水处理、电梯控制、高速包装、注塑、材料处理、食品加工、连续排放监测等。通过只配置所需的系统，可以节省关键空间并降。此外，他还可以适应的应用，例如：数字接口（用于按钮、开关、接近传感器、继电器、接触器和许多其他设备）、模拟模块（对于流量、温度或压力应用具有不同的分辨率），直接连接接线或远程终端以及本地或远程I/O系统。

总线交换是最古老的一种数据交换方式，这种方式的主要特点是没有专门的交换网芯片，通过共享背板总线进行各线卡之间的数据传递，各线卡分时占用背板总线，共享总线不可避免内部冲突；结构和技术比较简单，但交换容量受背板总线带宽限制，无法构建大容量系统，并且随着背板总线带宽的增加，码流的同步控制也成为一大瓶颈；目前采用这种交换方式的系统交换容量一般小于32G，并且一般都是有阻塞的系统。这种交换形式在一些老机型上仍有使用，新的系统不会采用这种交换形式。这种交换形式将逐渐被淘汰。

SFM2-200G I/O系统和模块 高级模块兼容

【英文介绍】

I/O systems and modules designed to meet the needs of flexible industrial solutions. In addition to this, it comes with 32KB of user memory, 4K I/O, 8 racks, and 0.22msec/K logic execution. It is compatible with advanced modules such as Ethernet, various bus modules and controls. With a single integrated structural design, the module is ideal for thousands of applications such as complex motion control, mining, water treatment, elevator control, high-speed packaging, injection molding, material handling, food processing, continuous emission monitoring, and more. By configuring only the required systems, critical space can be saved and reduced. In addition, it can be adapted to applications such as: digital interfaces (for buttons, switches, proximity sensors, relays, contactors and many other devices), analog modules (with different resolutions for flow, temperature or pressure applications), direct connection wiring or remote terminals, and local or remote I/O systems.

Bus switching is the oldest method of data exchange. The main feature of this method is that there is no special switching network chip, and the data is transferred between each line card through the shared backplane bus. Each line card occupies the backplane bus at a time. The structure and technology are relatively simple, but the switching capacity is limited by the bandwidth of the backplane bus, which makes it impossible to build a large-capacity system. With the increase of the bandwidth of the backplane bus, the synchronization control of the stream becomes a bottleneck. At present, the exchange capacity of the system using this switching mode is generally less than 32G, and it is generally a blocked system. This form of exchange is still used on some older models, and new systems will not use this form of exchange. This form of exchange will gradually be phased out.

SFM2-200G I/O系统和模块 高级模块兼容
