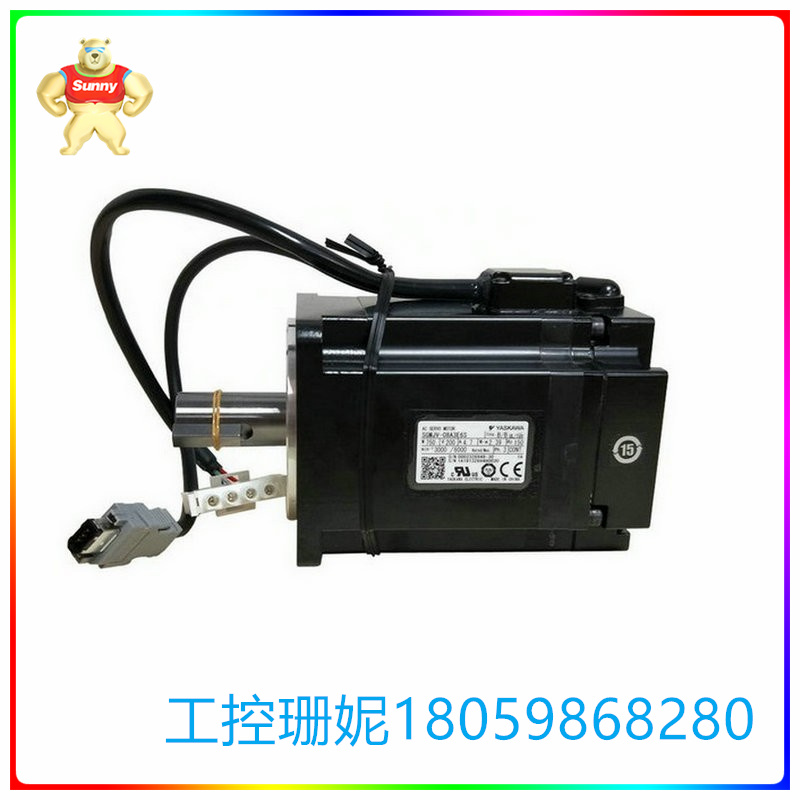

SGM7J-04AFA21 Σ-7J型伺服电机模拟电压脉冲序列指令型

【产品详情】

伺服性能有助于实现超高速和超精密控制。 最大限度地提高设备性能并解决问题。

【特点】

・体积小（与传统型号相比约80%）。

- 配备高分辨率 24 位编码器（1677 万脉冲/转）。

・最大扭矩：350%（小容量）。

・通过优化磁路，提高电机效率，实现低发热。

SGM7J 旨在最大限度地提高精确负载匹配至关重要的应用的响应能力。该系列中惯量旋转伺服电机专为低容量应用而设计，但当应用需要时，可以响应额定转速至 3000 rpm 和扭矩额定值高达 2.39 N-m （21 in-lb）。24 位编码器分辨率可在任何工作条件下保持行业领先的定位精度。

24 位编码器分辨率

比其他具有类似额定值的电机更紧凑，更适合狭小空间

与Sigma-7舵机完全兼容

具有高磁通密度的钕铁硼永磁体可减小转子尺寸

先进的磁路和优化的绕组几何形状可提供非常低的齿槽转矩

安全等级为 SIL 3 （IEC 61508）

IP67 防尘、防水等级

在高于 60oC 的温度、高于 2000 英尺的海拔高度下工作。

峰值加速扭矩高达额定扭矩的300%

峰值扭矩可保持长达三秒

额定转速 3,000 rpm，最高转速 6,000 rpm

运行温度比上一代产品低 20%

提供抱闸和轴封选项

SGM7J-04AFA21 Σ-7J型伺服电机模拟电压脉冲序列指令型

【英文介绍】

Servo performance facilitates ultra-high speed and ultra-precision control. Maximize equipment performance and resolve problems.

【 Feature 】

· Small size (about 80% compared to traditional models).

- High resolution 24-bit encoder (16.77 million pulses/RPM).

· Maximum torque: 350% (small capacity).

· Improve motor efficiency and achieve low heating by optimizing magnetic circuit.

The SGM7J is designed to maximize responsiveness for applications where accurate load matching is critical. The inertia rotary servo motors in this series are designed for low capacity applications, but can respond to speed ratings up to 3000 rpm and torque ratings up to 2.39 N-m (21 in-lb) when the application requires it. 24-bit encoder resolution maintains industry-leading positioning accuracy under any operating conditions.

24 bit encoder resolution

More compact than other motors with similar ratings and better suited for tight Spaces

Fully compatible with Sigma-7 steering gear

Ndfeb permanent magnets with high flux density can reduce the rotor size

Advanced magnetic circuits and optimized winding geometry provide very low slot torques

Safety level SIL 3 (IEC 61508)

IP67 dustproof, waterproof rating

Working at temperatures above 60 ° C and altitudes above 2,000 feet.

Peak acceleration torque up to 300% of rated torque

Peak torque can be maintained for up to three seconds

Rated speed 3,000 rpm, maximum speed 6,000 rpm

The operating temperature is 20% lower than the previous generation

Lock and shaft seal options available
