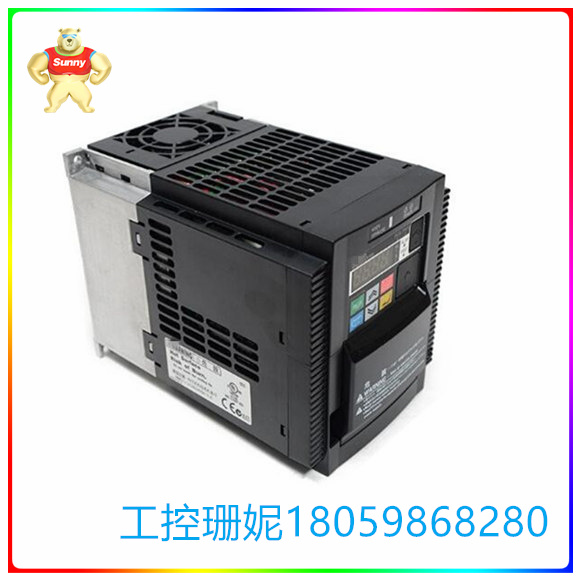

3G3MX2-A4040-ZV1 协调一致的电机和机器控制 支持开放式网络

【产品详情】

信息更新: 2015年7月30日

有反馈功能的简易位置控制

位置控制可通过接受编码器发出的反馈脉冲加以实现。
除了最多可在变频器中设置8个位置外，还能够减少定位传感器和限位开关的数量。

网络整合

可选装EthereCAT、CompoNet或DeviceNet等标准工业网络。
借助Sysmac系列，高速EthereCAT能够为整个系统(从输入到输出)提供整套解决方案。
内置RS-485 Modbus通信功能。

编程方式灵活方便

Drive编程工具可使客户根据自己的机器量身定制相应的程序(如方卷应用场合)。
最多允许1000行代码和5个任务在2种编程模式下并行运行。
(需CX-Drive 2.80版或更高版本。)

电机控制
永磁同步电机

可对具备高效磁性的永磁电机进行控制。
永磁电机能够进一步提高节能效果，从而使机器控制更为环保。

转矩传感器

由于MX2具备近乎静止(0.5Hz)的200%起动转矩，并且可在开环模式下实现转矩控制操作，因而也可以用于以前使用闭环矢量控制的一下场合。

内置安全装置

无需利用接触器使电机停止运转，而且可完全与欧姆龙安全控制器组合使用。
EN ISO13849-1：2008(Cat.3/PLd)
IEC60204-1 停止等级0

3G3MX2-A4040-ZV1 协调一致的电机和机器控制 支持开放式网络

【英文介绍】

Last updated: July 30, 2015

Simple position control with feedback

3G3MX2-ZV1 features 1

Position control can be achieved by receiving feedback pulses from the encoder.

In addition to setting up to 8 positions in the inverter, the number of positioning sensors and limit switches can be reduced.

Network integration

3G3MX2-ZV1 features 2

Standard industrial networks such as EthereCAT, CompoNet or DeviceNet are optional.

With the Sysmac family, high-speed EthereCAT provides a complete solution for the entire system, from input to output.

Built-in RS-485 Modbus communication function.

The programming method is flexible and convenient

3G3MX2-ZV1 Features 3

The Drive programming tool allows customers to tailor the program to their machine (for example, in a volume application).

Allows up to 1000 lines of code and 5 tasks to run in parallel in 2 programming modes.

(Requires CX-Drive version 2.80 or later.)

Motor control

Permanent magnet synchronous motor

3G3MX2-ZV1 features 4

It can control permanent magnet motors with high efficiency magnetism.

The permanent magnet motor can further improve the energy saving effect, thus making the machine control more environmentally friendly.

Torque sensor

3G3MX2-ZV1 features 5

Because the MX2 has a near-stationary (0.5Hz) starting torque of 200% and can be operated in open loop mode, it can also be used in situations where closed-loop vector control was previously used.

Built-in safety device

3G3MX2-ZV1 Features 6

There is no need to use a contactor to stop the motor and it can be fully integrated with the Omron safety controller.

EN ISO13849-1:2008 (Cat.3/PLd)

IEC60204-1 Stop level 0
