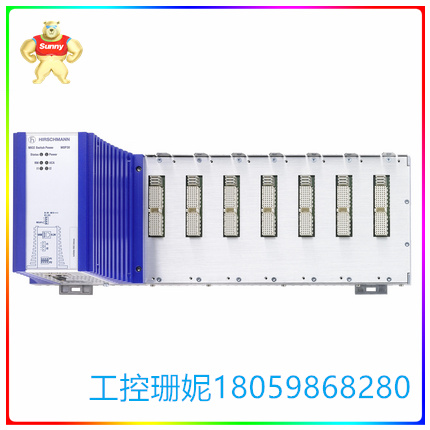

MS20-1600SAAEHC 快速以太网交换机 DIN轨道
【产品详情】
可用性可用
产品描述
16端口快速以太网交换机,管理,软件第2层增强,DIN轨道存储和前向交换,无风扇设计
端口类型及数量快速以太网端口总数:16个;千兆以太网端口:0
ms20 - 1600 saaehh08.0类型。
订单编号943 435-003
多个接口
电源/信令接点2 ×插件端子排,4针
V.24接口1 × RJ11插座
USB接口1 × USB连接AutoConfiguration Adapter ACA21-USB
网络大小-可级联性
线/星型拓扑任意
环结构(HIPER-Ring)数量开关50个(重新配置时间< 0.3秒)
功率要求
工作电压24v DC (18 ~ 32) V
24v直流500ma电流消耗
48伏直流电流消耗325毫安
输出功率为Btu (IT) h 41.0
软件。
管理串口,web接口,SNMP V1/V2, HiVision文件传输SW HTTP/TFTP
诊断led,日志文件,继电器触点,RMON,端口镜像1:1,拓扑发现802.1AB,地址冲突检测,网络错误检测,SFP诊断
[温度,光输入和输出功率(µW和dBm)],配置保存和更改Trap,双工失配检测,禁用学习。
配置命令行接口(CLI), TELNET, BootP, DHCP, DHCP选项82,hiddiscovery,轻松的设备交换与自动配置适配器ACA21-USB(自动
软件和/或配置上传),自动无效配置撤销,配置签名(水印)
安全端口多地址安全(IP和MAC), SNMP V3(不加密)
冗余功能HIPER-ring(环形结构),MRP (IEC-ring功能),RSTP 802.1D-2004,冗余网络/环耦合,MRP和RSTP并行,冗余24v电源
供应
过滤QoS 4类,端口优先级(IEEE 802.1D/p), VLAN (IEEE 802.1Q),共享VLAN学习,组播(IGMP Snooping/Querier),组播检测未知
多播,广播限制器,快速老化
工业配置文件以太网/IP和PROFINET (2.2 PDEV, GSDML独立发生器,自动设备交换)配置文件包括,配置和诊断通过自动化
软件工具,如STEP7或Control logic
时间同步SNTP服务器,PTP / IEEE 1588
流量控制流量控制802.3x,端口优先级802.1D/p,优先级(TOS/DIFFSERV)
MS20-1600SAAEHC 快速以太网交换机 DIN轨道
【英文介绍】
availability
Product description
16-port fast Ethernet switch, management, software Layer 2 enhancement, DIN track storage and forward switching, fanless design
Port Type and Quantity Fast Ethernet ports :16; Gigabit Ethernet port :0
Type ms20-1600 saaehh08.0.
Order No. 943 435-003
Multiple interface
Power/signaling contact 2 x plug-in terminal block, 4 pins
V.24 Port 1 x RJ11 socket
USB port 1 x USB Connects to the AutoConfiguration Adapter ACA21-USB
Network size - Cascading
Line/star topology is arbitrary
Number of HIPER-Ring switches 50 (reconfiguration time < 0.3 SEC)
Power requirement
Working voltage 24v DC (18 ~ 32) V
24v DC 500ma current consumption
A 48-volt DC current consumes 325 mA
The output power is Btu (IT) h 41.0
Software.
Management serial port, web interface, SNMP V1/V2, HiVision file transfer SW HTTP/TFTP
Diagnostics led, log files, relay contacts, RMON, Port mirroring 1:1, topology discovery 802.1AB, address conflict detection, network error detection, SFP diagnosis
[Temperature, optical input and output power (µW and dBm)], configure save and change Trap, duplex mismatch detection, disable learning.
Configure Command line Interface (CLI), TELNET, BootP, DHCP, DHCP option 82,hiddiscovery, easy device exchange with auto configuration adapter ACA21-USB(auto
Software and/or configuration upload), automatic invalid configuration undo, configuration signature (watermark)
Secure port Multi-Address security (IP and MAC), SNMP V3(unencrypted)
Redundancy functions HIPER-ring(ring structure), MRP (IEC-ring function), RSTP 802.1D-2004, redundant network/ring coupling, MRP and RSTP parallel, redundant 24v power supply
supply
Filter QoS Category 4, Port priority (IEEE 802.1D/p), VLAN (IEEE 802.1Q), shared VLAN learning, multicast (IGMP Snooping/Querier), multicast detection unknown
Multicast, broadcast limiter, fast aging
Industrial profile Ethernet /IP and PROFINET (2.2 PDEV, GSDML stand-alone Generator, Automatic Device Switching) profile includes, configuration and diagnostics through automation
Software tools such as STEP7 or Control logic
Time synchronization SNTP server, PTP/IEEE 1588
Traffic control Traffic control 802.3x, port priority 802.1D/p, priority (TOS/DIFFSERV)
