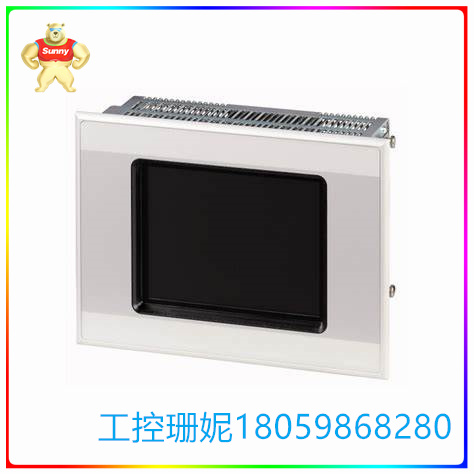

XVH-330-57MPI-1-10 触摸屏  图形面板

【产品详情】

 用户界面，XVH300，功能:HMI，显示类型:彩色显示，CSTN，触摸技术:电阻式触摸，颜色数量:256色，分辨率:320 x 240像素，纵向格式:是，屏幕对角线:5.7英寸，金属外壳和前面板，操作系统:Windows CE(需要许可证)，PLC-许可证:不可能有PLC功能，板载接口许可证证书:可根据需要扩展，请参见附件-%3E许可证产品证书，内置接口:1个以太网100base-TX/10base 用途:嵌入式安装，插槽:用于Compact-FlashTM卡:1，存储卡自动化:必需，见附件-%3E存储卡，可插拔通信卡(可选):否，散热:19.2 W，防护等级(IEC/EN 60529，EN50178，VBG 4): IP65(前面)，IP20(后面) [ 交付程序 产品范围 XVH300 功能 皇家督学 显示类型 彩色显示器，CSTN 触摸技术 电阻式触摸 颜色数量 256色 解决 320 x 240像素 纵向格式 是 屏幕对角线 5.7英寸 模型 金属外壳和前板 操作系统 Windows CE(需要许可证) PLC-许可证 不可能有PLC功能 机载接口的许可证书 可根据需要扩展，见附件-%3E许可证产品证书 内置接口 1个以太网100base-TX/10base-T 1个USB设备 正面型 带有标准薄膜的标准正面(完全层压) 利用 嵌入式安装 时间 对于紧凑型闪光灯 TM- 卡片:1张 存储卡自动化 要求，见附件-%3E存储卡 可插拔通信卡(可选) 不 热消散 19.2瓦 , 技术数据 显示 显示类型 彩色显示器，CSTN 屏幕对角线 5.7英寸 解决 320 x 240像素 可视屏幕区域 115 x 86毫米 颜色数量 256色 对比度(正常) 通常为35:1 聪明 通常为150 cd/m 2 背光照明 1个CCFL 可通过软件调光 背光的使用寿命 通常为50000小时 电阻触摸保护屏 触摸传感器(带箔的玻璃) 操作 技术 电阻式触摸 4线 系统 处理器 RISC CPU，32位，200 MHz 内存储器 DRAM(操作系统、程序和数据存储器):64兆字节 闪存(可用于数据备份):大约。1.5兆字节可用 外部存储器 CF-Slot: 1个compact flash I/II型卡，用于操作系统、程序和数据 实时时钟的备份 电池(使用寿命) 不可更换，CR2032焊接 实时时钟的备份 备用(零电压时间) 通常是10年 操作系统 Windows CE(需要许可证) 工程 可视化软件 伽利略/EPAM 接口，通信 内置接口 1个以太网100base-TX/10base-T 1个USB设备 PLC-许可证 不可能有PLC功能 USB设备 USB 1.1，非电流隔离 过程现场总线（process field bus的缩写） PROFIBUS电流隔离，最大值。1.5兆位/秒(子D插座9极，UNC) 时间 对于紧凑型闪光灯 TM- 卡片:1张

XVH-330-57MPI-1-10 触摸屏  图形面板

【英文介绍】

 User interface, XVH300, Functions :HMI, Display type: Color display, CSTN, Touch Technology: Resistive touch, Number of colors :256 colors, resolution :320 x 240 pixels, Portrait format: Yes, screen diagonal :5.7 inches, Metal housing and front panel, Operating system :Windows CE(license required), PLC-license: PLC function is not possible, on-board interface license certificate: can be expanded as needed, please see the attachment -%3E license product certificate, built-in interface :1 Ethernet 100base-TX/10base Usage: embedded installation, Slot: for Compact FlashTM card :1, Memory card automation: required, see attachment -%3E Memory card, pluggable communication card (optional): No, Heat dissipation: 19.2W, protection level (IEC/EN 60529, EN50178, VBG 4): IP65(front), IP20(back) [Delivery program Product Range XVH300 Features Royal Inspector Display Type Color Display, CSTN Touch Technology Resistive Touch Color Quantity 256 Color Solution 320 x 240 pixels Portrait format is screen diagonal 5.7 inch model Metal housing and front plate Operating system Windows CE(license required) PLC- License cannot have PLC functionality The license certificate for the onboard interface can be extended as needed, See attachment -%3E License Product Certificate Built-in interface 1 Ethernet 100base-TX/10base-T 1 USB device Front type Standard front with standard film (fully laminated) Take advantage of embedded installation time for compact flash TM- card :1 memory card automation requirements, See attachment -%3E Memory card Pluggable Communication card (optional) No heat dissipation 19.2 watts, technical data display Display type Color display, CSTN Screen Diagonal 5.7 "solution 320 x 240 pixel viewable screen area 115 x 86 mm color number 256 color contrast (normal) usually 35:1 Smart usually 150 cd/ m2 backlight lighting 1 CCFL can be dimmable by software for backlight life Typically 50,000 hours Resistive touch protection screen Touch Sensor (glass with foil) Operation technology Resistive Touch 4-wire system processor RISC CPU, 32-bit, 200 MHz internal memory DRAM(operating system, program, and data storage):64 megabytes flash memory (available for data backup): approx. 1.5 megabytes available External memory CF-Slot: 1 compact flash I/II card, used to backup the operating system, programs and data real-time clock battery (service life) is not replaceable, CR2032 Welding real-time clock backup backup (zero voltage time) is usually 10 years operating system Windows CE(license required) engineering visualization software Galileo /EPAM interface, Communication built-in interface 1 Ethernet 100base-TX/10base-T 1 USB device PLC- License cannot have PLC function USB device USB 1.1, Non-current Isolated process Fieldbus (short for process field bus) PROFIBUS current isolated, Max. 1.5 megabits/s (sub D socket 9 poles, UNC) Time for compact flash TM- card :1

XVH-330-57MPI-1-10 触摸屏  图形面板
