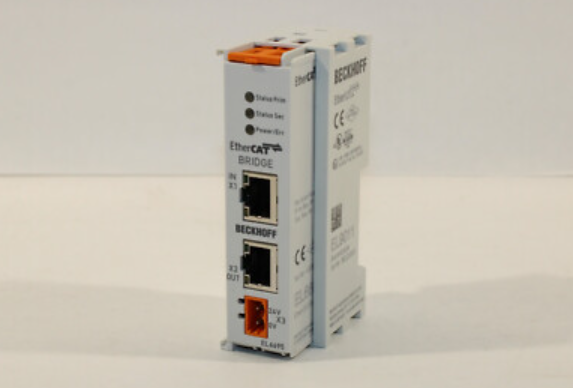

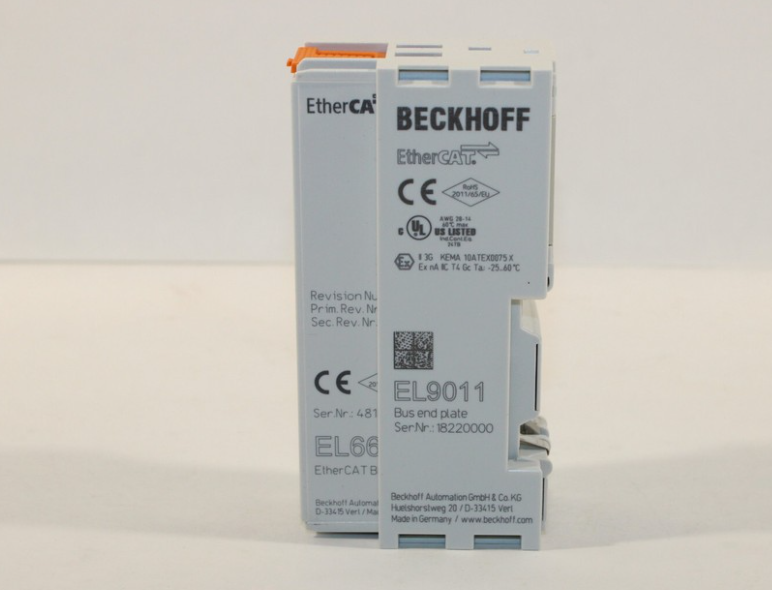

EL6695 端子模块，通信接口，EtherCAT桥接器

【产品详情】

EL6695 EtherCAT 桥接模块可在 EtherCAT 端子模块与不同主站之间实现实时数据交换。还支持通过 AoE、FoE、EoE、NPI 等进行异步通信。分布式时钟可以在两个方向上同步。EL6695 与 EL6692（将继续提供）的不同之处在于灵活的 CoE 配置、器件仿真选项和数据吞吐量的显著提高。与 EL6692 一样，TwinCAT System Manager 中提供了方便的组态界面。次级侧 （RJ45） 的电源通过外部连接，初级侧通过 E-bus 供电。桥接端子还可用于将下属 PC 系统集成为 EtherCAT 从站。

倍福组件可以通过多种方式实现 EtherCAT 网络之间的数据交换，以满足不同的系统要求。因此，还应使用下面列出的“类似产品”、FCxxxx 现场总线卡或各种 CX 嵌入式 PC 上的 B110 接口来检查可能性。

技术数据 EL6695系列

科技 初级侧：E-bus（端子线），次级侧：2 x 100 Mbit/s 以太网，RJ45，输入/输出

港口 初级：E-bus，次级：2 x RJ45 EtherCAT 输入/输出

功能 EtherCAT分布式时钟同步、数据交换

电缆长度 100 m 100BASE-TX，辅助端口

硬件诊断 状态 LED 指示灯

电源 初级：通过 E-bus，次级：通过连接器，24 V

分布式时钟 是的

电气隔离 500 V （E-bus/次级侧）

消耗电流 初级：E-bus 400 mA;次级：70 mA/24 V

EL6695 端子模块，通信接口，EtherCAT桥接器

【英文介绍】

The EL6695 EtherCAT bridge module enables real-time data exchange between the EtherCAT terminal module and different master stations. It also supports asynchronous communication through AoE, FoE, EoE, NPI, etc. Distributed clocks can be synchronized in both directions. The EL6695 differs from the EL6692 (which will continue to be offered) in flexible CoE configurations, device simulation options, and significantly improved data throughput. Like the EL6692, a convenient configuration interface is available in TwinCAT System Manager. The secondary side (RJ45) is powered by an external connection, and the primary side is powered by an E-bus. Bridging terminals can also be used to integrate subordinate PC systems as EtherCAT slaves.

Beckhoff components can exchange data between EtherCAT networks in a variety of ways to meet different system requirements. Therefore, you should also use the "similar products" listed below, the FCxxxx fieldbus card, or the B110 interface on various CX embedded PCS to check the possibilities.

Technical data EL6695 series

Technology Primary side: E-bus (terminal line), secondary side: 2 x 100 Mbit/s Ethernet, RJ45, input/output

Port primary: E-bus, secondary: 2 x RJ45 EtherCAT input/output

Function EtherCAT Distributed clock synchronization and data exchange

Cable length 100 m 100BASE-TX, auxiliary port

Hardware diagnostic status LED indicator

Power supply primary: via E-bus, secondary: via connector, 24 V

Distributed clock Yes

Electrical isolation 500 V (E-bus/ secondary side)

Current consumption primary: E-bus 400 mA; Secondary: 70 mA/24 V

EL6695 端子模块，通信接口，EtherCAT桥接器
