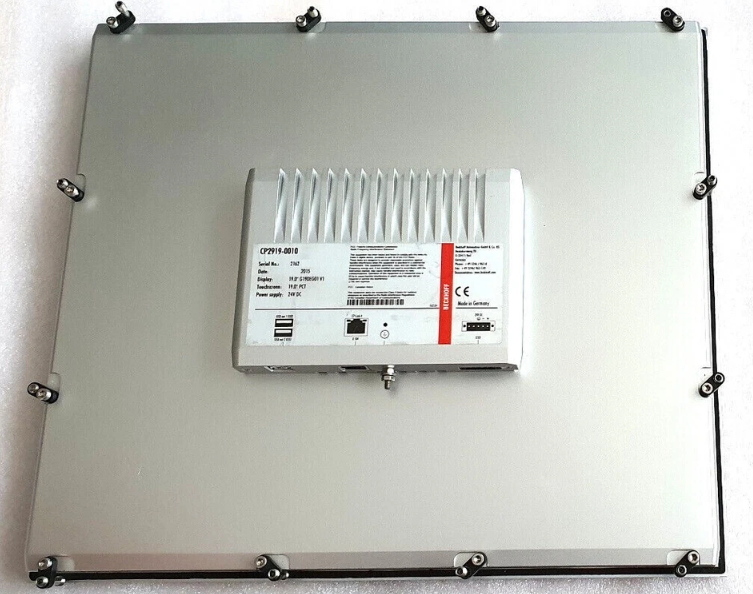

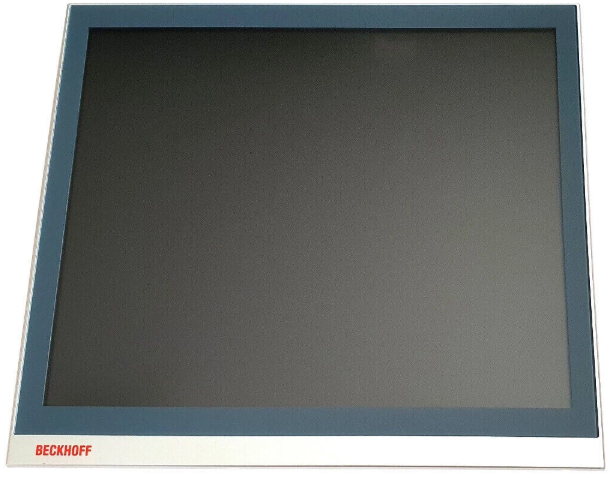

CP2919-0010 多点触控内置控制面板 带DVI/USB扩展接口

【产品详情】

在最新的 PC 技术和控制组件的长期可用性之间取得平衡

现代控制面板技术并不止于触摸技术的选择，触摸技术构成了机器或工厂运行的基础。图像和触摸信号的传输，结合电源或其他数字信号，必须在工业环境中以机械和电气方式完美、连续地工作，并长距离工作。为了可靠地确保这一点，倍福在位于 Verl 的生产基地安装了自己开发和制造的面板电子元件。

坚固的外壳技术，现代和高级设计

作为基于 PC 的自动化领域的先驱，倍福对其产品质量和现代设计提出了最高要求。为了将两者协调一致，倍福自 1990 年代以来一直使用实心铝作为其控制面板外壳的原材料。铝具有非常好的机械、电气和热性能。其加工的简单性也允许小批量生产，并能够根据客户的具体情况进行调整。阳极氧化可产生高质量和耐用的表面。除铝外，不锈钢也被用作某些行业的基础材料。

高级多点触控操作场景

在普遍数字化的进程中，先进的多点触控操作场景已成为工业应用中不可或缺的一部分。机器操作员理所当然地期望他们的机器或系统具有与智能手机和平板电脑相同的用户友好性。2012 年底，倍福率先完善了先进的多点触控技术，适用于恶劣的工业环境，并将其安装在 CP29xx 内置控制面板系列和 CP39xx 系列中，防护等级为 IP65。通过将 CP29xx 面板安装在控制柜的前面，倍福客户可以使用各种不同的设备型号：

对角线从 7 到 24 英寸

4：3 或宽屏格式

各种连接技术：DVI/USB，用于 PC 和控制面板之间最远 50 m 的距离;CP-Link 4 和单电缆技术，传输距离可达 100 m

标准版或定制版

铝制或不锈钢外壳

多点触控技术

倍福使用专门制造的多点触控传感器，以满足机械稳定性、恶劣工业环境条件、精确操作和优雅设计方面的高要求。除了现代宽屏格式外，4：3 格式的经典对角线也可长期使用。这确保了对用户的高度投资保护。所有必要的控制器板均由倍福自行开发并制造。其结果是一个非常坚固的整体系统，即使在恶劣的机器环境中也能实现最先进的操作舒适性。

完美匹配的控制面板硬件

无论是作为显示设备 （HMI） 还是作为完整的控制面板 PC 应用，倍福都依靠自己的专业知识，在内部开发和制造主板。通过这种方式，用户可以从灵活、高性能的硬件平台中受益，并保证长期可用性。内部硬件开发由内部 BIOS 开发、Microsoft 操作系统领域的全面专业知识和超紧凑的倍福 TwinCAT/BSD 操作系统完善。

控制面板产品组合由 TwinCAT HMI 补充。可视化软件以最佳方式集成到 TwinCAT 环境中，通过现代编程和参数设置，为各种用例提供倍福控制面板的技术支持。

倍福提供以下显示屏尺寸：

宽屏

7 英寸，分辨率 800 x 480 （5：3）

12.1 英寸，分辨率 1280 x 800 （16：10）

15.6 英寸，分辨率 1366 x 768 （16：9）

18.5 英寸，分辨率 1366 x 768 （16：9）

21.5 英寸，全高清分辨率 1920 x 1080 （16：9）

24 英寸，全高清分辨率 1920 x 1080 （16：9）

更多显示尺寸

12 英寸，分辨率 800 x 600 （4：3）

15 英寸，分辨率 1024 x 768 （4：3）

19 英寸，分辨率 1280 x 1024 （5：4）

CP2919-0010 多点触控内置控制面板 带DVI/USB扩展接口

【英文介绍】

Balance the latest PC technology with the long-term availability of control components

Modern control panel technology does not stop at the choice of touch technology, which forms the basis for the operation of a machine or factory. The transmission of images and touch signals, combined with power or other digital signals, must work perfectly, continuously, mechanically and electrically in an industrial environment, and over long distances. To ensure this reliably, Beckhoff installed its own developed and manufactured panel electronics at its production site in Verl.

Rugged housing technology, modern and premium design

As a pioneer in PC-based automation, Beckhoff places the highest demands on the quality and modern design of its products. To harmonize the two, Beckhoff has been using solid aluminum as a raw material for its control panel housings since the 1990s. Aluminum has very good mechanical, electrical and thermal properties. The simplicity of its processing also allows for small batch production and the ability to adapt to the specific situation of the customer. Anodizing produces a high-quality and durable surface. In addition to aluminum, stainless steel is also used as a base material in some industries.

Advanced multi-touch operation scenario

In the process of universal digitization, advanced multi-touch operation scenarios have become an integral part of industrial applications. Machine operators rightfully expect their machines or systems to have the same user-friendliness as smartphones and tablets. At the end of 2012, Beckford took the lead in perfecting advanced multi-touch technology for harsh industrial environments and installed it in the CP29xx built-in control panel series and the CP39xx series with IP65 protection. By mounting the CP29xx panel on the front of the control cabinet, Beckhoff customers have access to a variety of different equipment models:

Diagonal from 7 to 24 inches

4:3 or widescreen format

Various connection technologies: DVI/USB for up to 50 m distance between PC and control panel; CP-Link 4 and single cable technology for transmission distances up to 100 m

Standard edition or custom edition

Aluminum or stainless steel housing

Multi-touch technology

Beckhoff uses specially manufactured multi-touch sensors to meet the high requirements of mechanical stability, harsh industrial environmental conditions, precise operation and elegant design. In addition to the modern widescreen format, the classic diagonal in the 4:3 format is also available for long-term use. This ensures a high level of investment protection for users. All necessary controller boards are developed and manufactured by Beckhoff itself. The result is a very robust overall system that enables state-of-the-art operating comfort even in harsh machine environments.

Perfectly matched control panel hardware

Whether as a display device (HMI) or as a full control panel PC application, Beckhoff relies on its own expertise to develop and manufacture motherboards in-house. In this way, users can benefit from a flexible, high-performance hardware platform with guaranteed long-term availability. In-house hardware development is complemented by in-house BIOS development, comprehensive expertise in the field of Microsoft operating systems and the ultra-compact Beckhoff TwinCAT/BSD operating system.

The control panel portfolio is complemented by TwinCAT HMI. The visualization software is optimally integrated into the TwinCAT environment, providing technical support for Beckhoff control panels for a variety of use cases with modern programming and parameter Settings.

Beckhoff offers the following display sizes:

widescreen

7 inches, 800 x 480 resolution (5:3)

12.1 inches, 1280 x 800 resolution (16:10)

15.6 inches, 1366 x 768 resolution (16:9)

18.5 inches, 1366 x 768 resolution (16:9)

21.5-inch, full HD resolution 1920 x 1080 (16:9)

24 inches, full HD resolution 1920 x 1080 (16:9)

More display sizes

12 inches, 800 x 600 resolution (4:3)

15 inches, 1024 x 768 resolution (4:3)

19 inches, 1280 x 1024 resolution (5:4)
