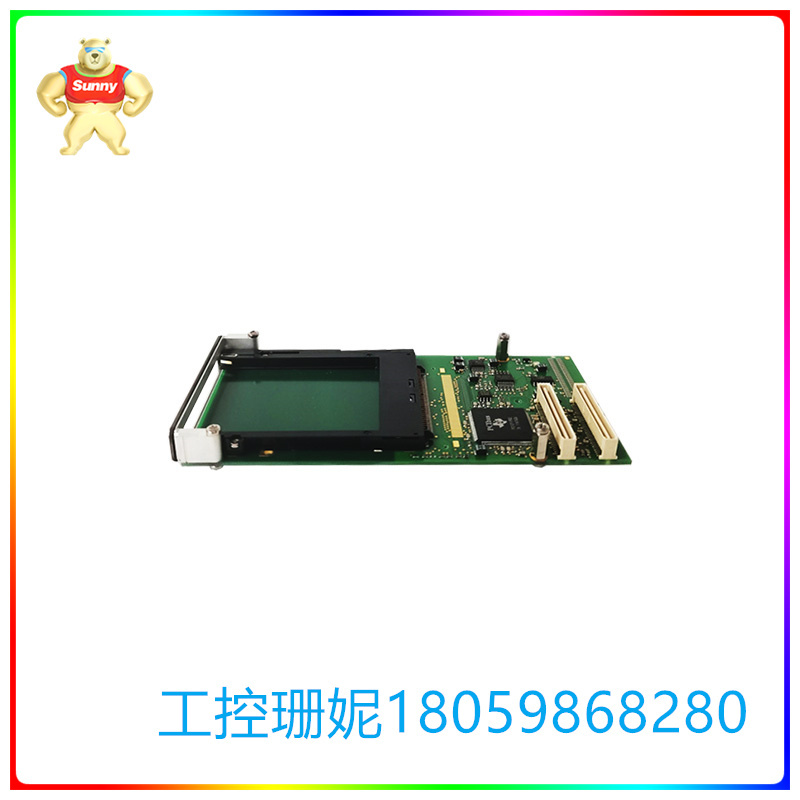

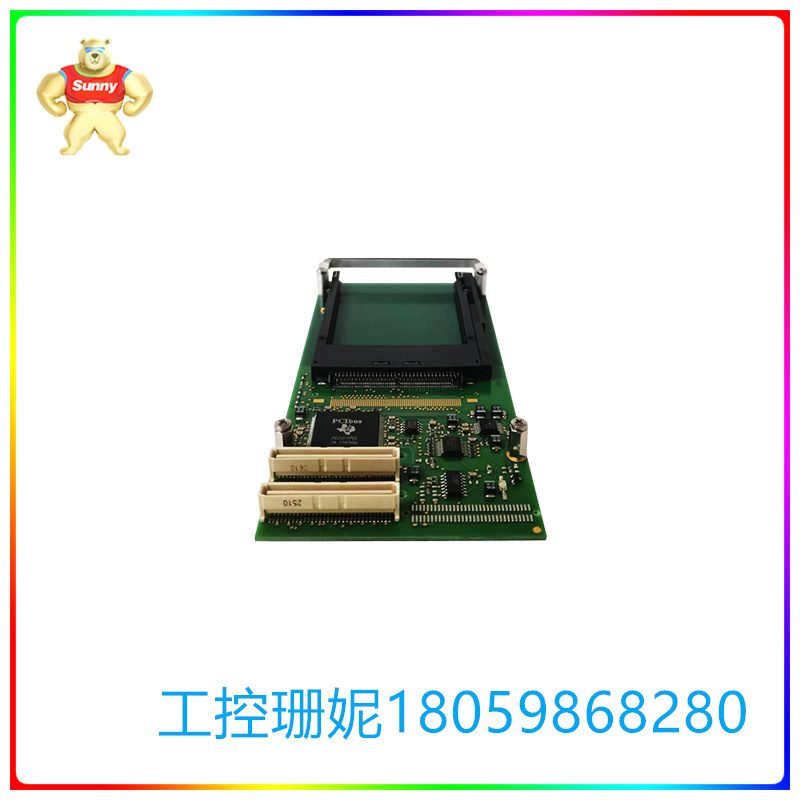

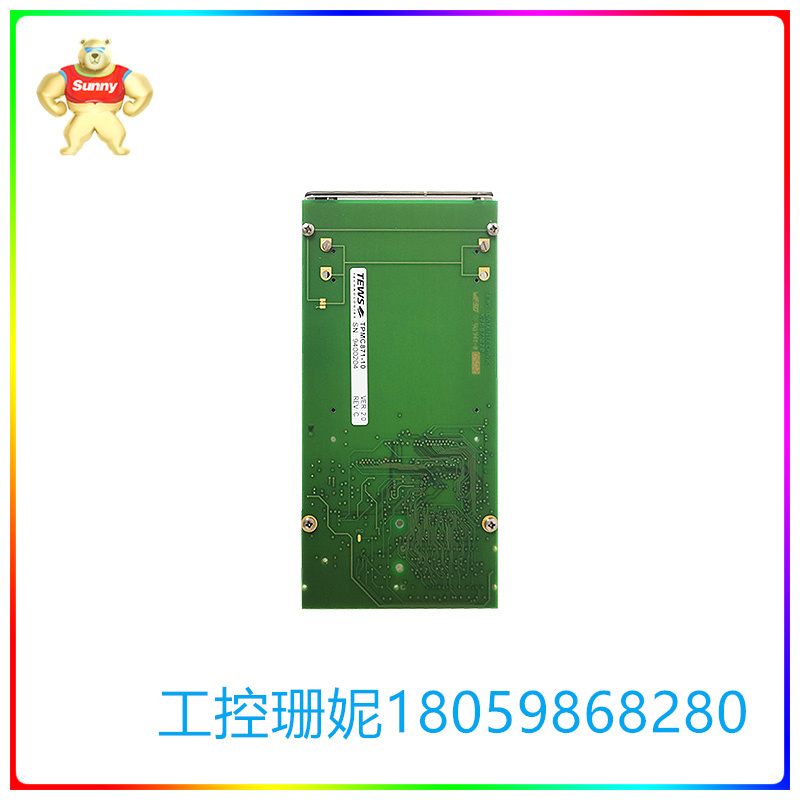

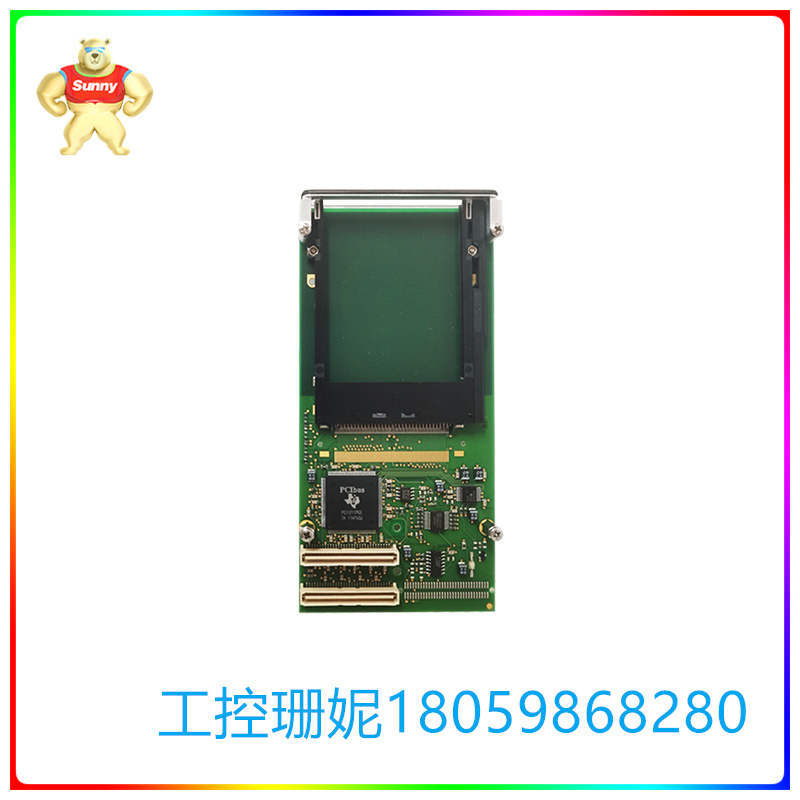

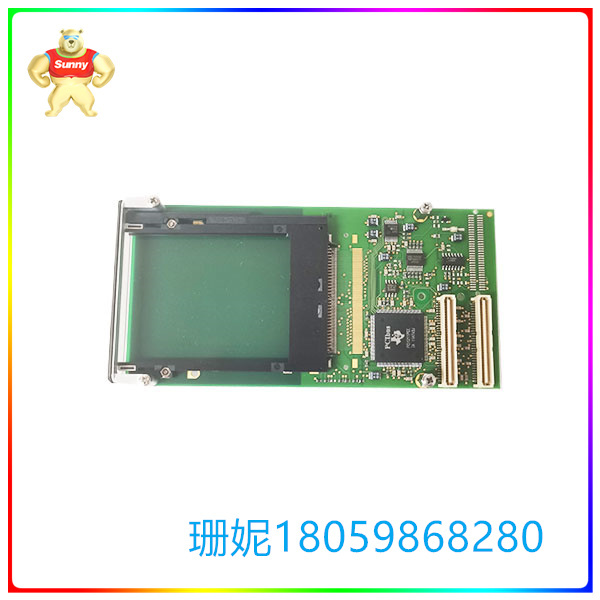

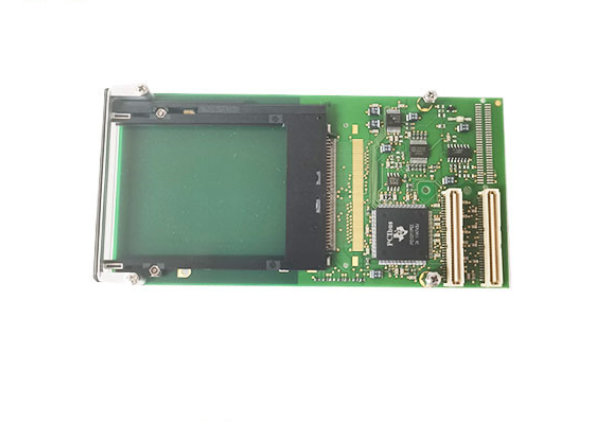

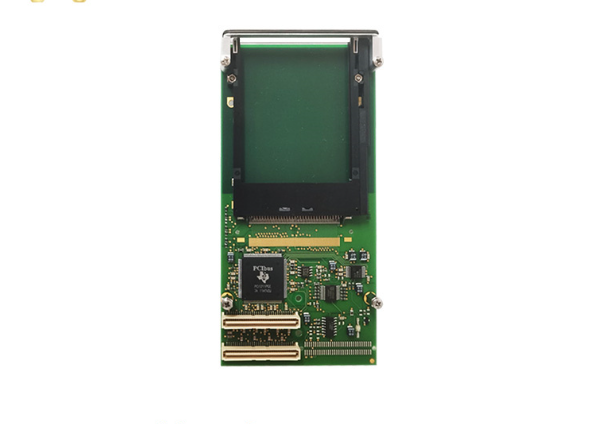

TPMC871-10 标准的单宽度32位PMC模块

【产品详情】

TPMC871是一个标准的单宽度32位PMC模块与一个接口的16位PC卡或32位CardBus卡采用PC卡控制器和电源管理单位。PC卡的寄存器映射

控制器是英特尔82365-DF兼容。电源管理模块提供3.3V或5.0V供电

PC卡电源和3.3V, 5.0V或12V PC卡编程电压。由于短路和热电源管理单元无外部保护模块上需要保险丝。TPMC871提供完整的ExCA寄存器实现一个16位PC卡兼容pcmcia2.1 /JEIDA4.2标准。支持内存卡和I/O卡。

最多五个内存窗口和最多两个I/O窗口可用于PC卡16访问。用于32位CardBus两个内存窗口和两个I/O窗口控制器是否支持。卡状态信息可在五个CardBus插槽中访问可以映射到主机内存空间的寄存器。

软件支持:

o驱动程序支持(TPMC871-SW-xx)不同

操作系统可用。

o TPMC871直接支持Windows操作系统

和Linux。

o有关其他操作系统，请与TEWS联系。

技术信息

符合标准单宽32位PMC模块

符合IEEE P1386.1

PCI 2.1兼容接口

3.3V和5V PCI信令电压

单板尺寸:149mm × 74mm

1具有热插入和移除的PC卡插槽

支持I、II类内存卡和I/O卡

注意:PC卡组件有一个最大值

组件高度5.6mm即0.9mm以上

指定组件高度(4.7mm)根据

IEEE1386.1

TEWS技术有限公司保留更改技术规格的权利，恕不另行通知

TPMC871-10 标准的单宽度32位PMC模块

【英文介绍】

TPMC871 is a standard single-width 32-bit PMC module with an interface to a 16-bit PC card or 32-bit CardBus card using a PC card controller and power management unit. Register map of PC card

The controller is Intel 82365-DF compatible. The power management module provides 3.3V or 5.0V power supply

PC card power supply and 3.3V, 5.0V or 12V PC card programming voltage. Due to short circuit and hot power management unit no external protection is required on the module fuse. TPMC871 provides full ExCA register implementation for a 16-bit PC card compatible with PCMCIA 2.1 /JEIDA4.2 standards. Supports memory cards and I/O cards.

Up to five memory Windows and up to two I/O Windows are available for PC card 16 access. Support for 32-bit CardBus controller with two memory Windows and two I/O Windows. Card status information is accessible in five CardBus slots to registers that can be mapped to the host memory space.

Software support:

o Driver support (TPMC871-SW-xx) is different

The operating system is available.

o TPMC871 directly supports Windows operating systems

And Linux.

o For other operating systems, contact TEWS.

Technical information

 conforms to the standard single-width 32-bit PMC module

Complies with IEEE P1386.1

PCI 2.1 Compatible interface

3.3V and 5V PCI signaling voltage

 Dimensions :149mm x 74mm

1 Has hot insert and remove PC card slots

 Supports Class I and II memory cards and I/O cards

Note :PC card components have a maximum value

The height of the component is above 5.6mm (0.9mm)

Specify component height (4.7mm) according to

IEEE1386.1

TEWS Technologies Ltd. reserves the right to change the technical specifications without prior notice
