TPMC871-50 ARCNET接口模块 提供隔离RS485

【产品详情】

应用程序信息

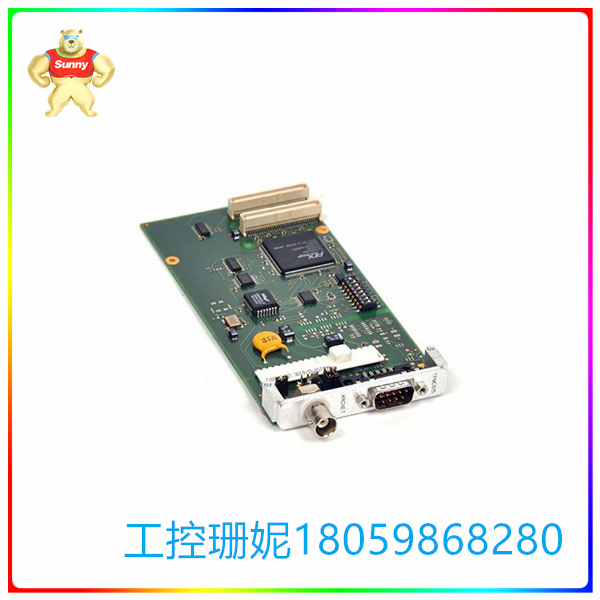

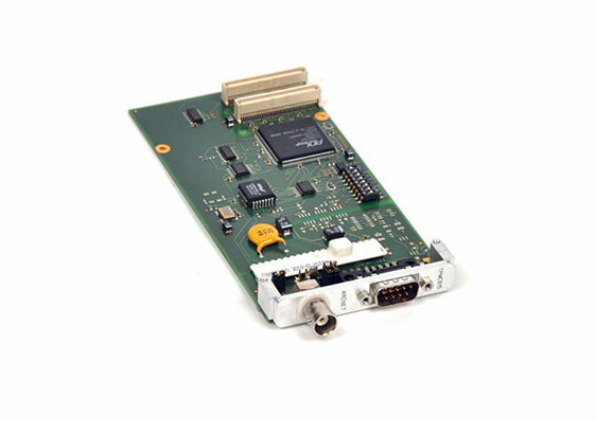

TPMC815是一个标准的单宽度32位PMC模块具有完整的ARCNET接口使用

控制器COM20020。COM20020包含带有收发器和双端口RAM的ARCNET控制器。TPMC815-21R提供隔离RS485

差分驱动接口。TPMC815-21R的最大速度为5.0 Mbps。

该模块非常适合工业/工厂自动化和汽车应用。

软件支持(TDRV007-SW-xx)不同的操作系统。Tews Technologies TPMC815 ARCNET 接口模块是标准的单宽 32 位 PMC 模块。该装置使用控制器COM20020提供完整的 ARCNET 接口。该模块有两种接口类型：TPMC815-11 提供传统的隔离式混合接口，TPMC815-21 提供隔离式 RS485 差分驱动器接口。该TPMC815非常适合工业/工厂自动化和汽车应用。

技术信息

符合标准单宽32位PMC模块符合IEEE P1386.1

PCI 2.1兼容接口

单板尺寸:149mm × 74mm

基于COM20020的ARCNET接口完整的ARCNET控制器与收发器和双端口RAM

工业/工厂自动化的理想选择汽车应用程序

确定性5 Mbps令牌传递协议

改进的诊断

隔离的RS485差分驱动接口带on板DC/DC变换器

工作温度范围-40℃~ +85℃

TPMC871-50 ARCNET接口模块 提供隔离RS485

【英文介绍】

Application information

TPMC815 is a standard single-width 32-bit PMC module with a full ARCNET interface to use

Controller COM20020. The COM20020 includes an ARCNET controller with transceiver and dual-port RAM. TPMC815-21R provides isolated RS485

Differential driver interface. The TPMC815-21R has a maximum speed of 5.0 Mbps.

The module is ideal for industrial/factory automation and automotive applications.

Software support (TDRV007-SW-xx) different operating systems. Tews Technologies TPMC815 ARCNET interface module is a standard single-width 32-bit PMC module. The device uses the controller COM20020 to provide a complete ARCNET interface. The module is available in two interface types: TPMC815-11 provides a traditional isolated hybrid interface, and TPMC815-21 provides an isolated RS485 differential driver interface. The TPMC815 is ideal for industrial/factory automation and automotive applications.

Technical information

 Compliant Single-width 32-bit PMC module complies with IEEE P1386.1

PCI 2.1 Compatible interface

 Dimensions :149mm x 74mm

 ARCNET interface based on COM20020 Complete ARCNET controller with transceiver and dual port RAM

 The ideal automotive application for industrial/factory automation

 Deterministic 5 Mbps token passing protocol

 Improved diagnostics

 Isolated RS485 differential driver interface with ON-board DC/DC converter

 The operating temperature ranges from -40℃ to +85℃

TPMC871-50 ARCNET接口模块 提供隔离RS485
