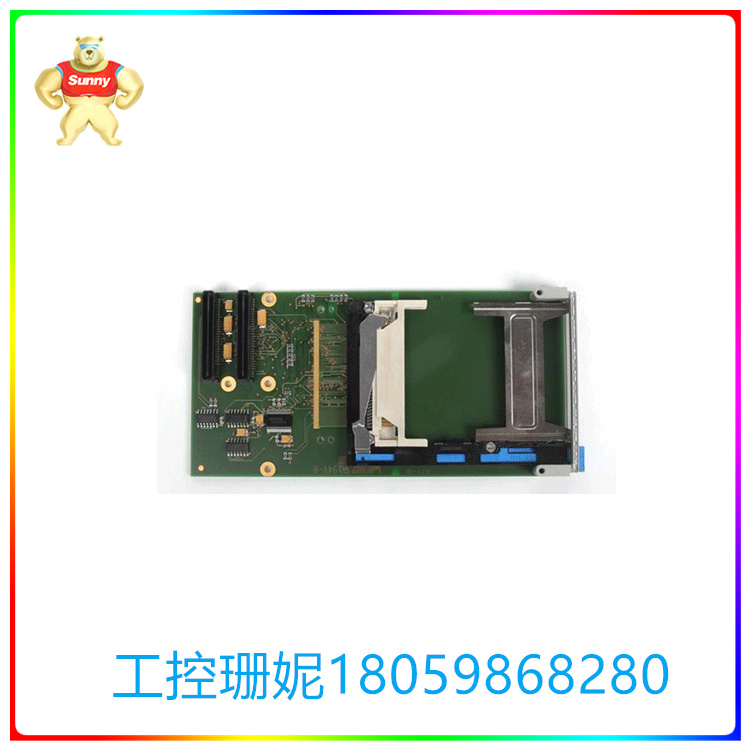

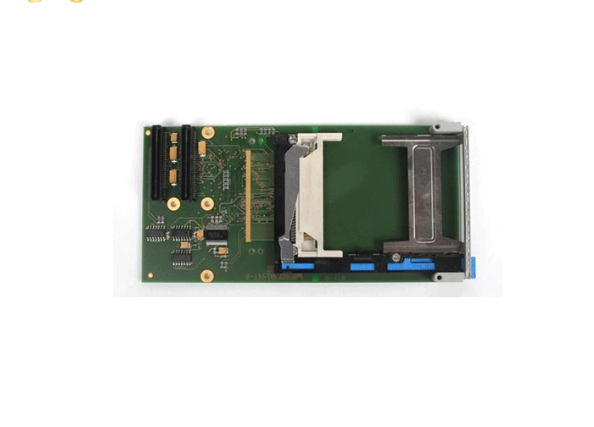

TPMC871-50 PMC接口模块 具有一个接口
【产品详情】
特征:
标准单宽 32 位 PMC 模块,符合 IEEE P1386.1
PCI 2.1 兼容接口
电路板尺寸:149mm x 74mm
1 个 PC 卡插槽,带热插拔功能
支持 I 型和 II 型内存和 I/O 卡
Tews Technologies TPMC871 是一款标准的单宽 32 位 PMC 模块,具有一个接口,用于 16 位 PC 卡或 32 位 Cardbus 卡,使用 PC 卡控制器和电源管理单元。PC 卡控制器的寄存器映射与 Intel 82365-DF 兼容。
电源管理单元提供 3.3V 或 5.0V PC 卡电源和 3.3V、5.0V 或 12V PC 卡编程电压。由于电源管理单元具有短路和热保护功能,因此模块上不需要外部保险丝。
该TPMC871提供与PCMCIA 2.1/JEIDA 4.2标准兼容的16位PC卡的完整ExCA寄存器实现。支持内存卡和 I/O 卡。多达 5 个内存窗口和 2 个 I/O 窗口可用于 PC Card 16 访问。对于 32 位 Cardbus 卡,控制器支持两个内存窗口和两个 I/O 窗口。Cardbus 卡状态信息可以在 5 个 Cardbus 套接字寄存器中访问,这些寄存器可以映射到主机内存空间中。
应用程序信息
TPMC871是一个标准的单宽度32位PMC模块与一个接口的16位PC卡或32位卡总线卡使用一个PC卡控制器和一个电源管理单位。PC卡的寄存器映射
控制器是英特尔82365-DF兼容。电源管理模块提供3.3V或5.0V供电
PC卡电源和3.3V, 5.0V或12V PC卡编程电压。由于短路和热
电源管理单元无外部保护模块上需要保险丝。
TPMC871提供完整的ExCA寄存器实现
一个16位PC卡兼容pcmcia2.1 /JEIDA4.2标准。支持内存卡和I/O卡。
最多五个内存窗口和最多两个I/O窗口可用于PC卡16访问。用于32位卡总线
两个内存窗口和两个I/O窗口控制器是否支持。卡状态信息可在五个Cardbus插槽中访问可以映射到主机内存空间的寄存器。
对于第一次使用的用户,工程文档推荐使用TPMC871-ED。工程
文档包括TPMC871-DOC,原理图和数据表。
TPMC871-50 PMC接口模块 具有一个接口
【英文介绍】
Features:
Standard single-width 32-bit PMC module, compliant with IEEE P1386.1
PCI 2.1 compatible interface
Board size: 149mm x 74mm
One PC card slot with hot swap function
Supports Type I and Type II memory and I/O cards
Tews Technologies TPMC871 is a standard single-width 32-bit PMC module with one interface for 16-bit PC cards or 32-bit Cardbus cards, using a PC card controller and power management unit. The PC card controller's register map is compatible with Intel 82365-DF.
The power management unit provides 3.3V or 5.0V PC card power supply and 3.3V, 5.0V or 12V PC card programming voltage. Since the power management unit has short circuit and thermal protection, no external fuse is required on the module.
The TPMC871 provides a full ExCA register implementation for 16-bit PC cards compatible with the PCMCIA 2.1/JEIDA 4.2 standard. Supports memory cards and I/O cards. Up to 5 memory Windows and 2 I/O Windows are available for PC Card 16 access. For 32-bit Cardbus cards, the controller supports two memory Windows and two I/O Windows. Cardbus card status information can be accessed in five Cardbus socket registers that can be mapped to the host memory space.
Application information
TPMC871 is a standard single-width 32-bit PMC module with an interface to a 16-bit PC card or 32-bit card bus card using a PC card controller and a power management unit. Register map of PC card
The controller is Intel 82365-DF compatible. The power management module provides 3.3V or 5.0V power supply
PC card power supply and 3.3V, 5.0V or 12V PC card programming voltage. Due to short circuit and heat
The power management unit does not have external protection. Fuses are required for the power management unit.
The TPMC871 provides a complete ExCA register implementation
A 16-bit PC card compatible with PCMCIA 2.1 /JEIDA4.2 standards. Supports memory cards and I/O cards.
Up to five memory Windows and up to two I/O Windows are available for PC card 16 access. For 32-bit card bus
Whether the controller supports two memory Windows and two I/O Windows. Card status information is accessible in five Cardbus slots to registers that can be mapped to the host memory space.
For first-time users, the engineering documentation recommends TPMC871-ED. ENGINEERING
Documentation includes TPMC871-DOC, schematics, and data sheets.
