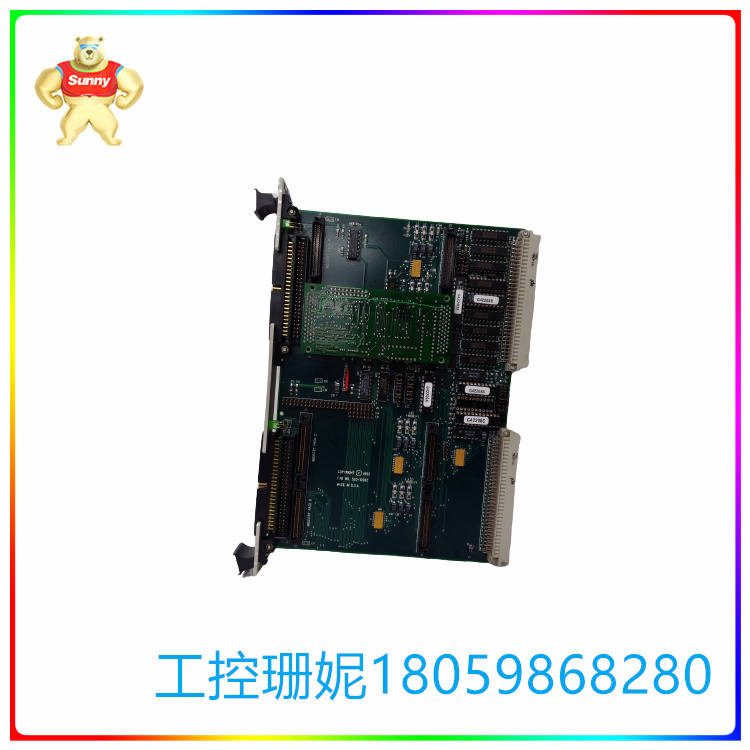

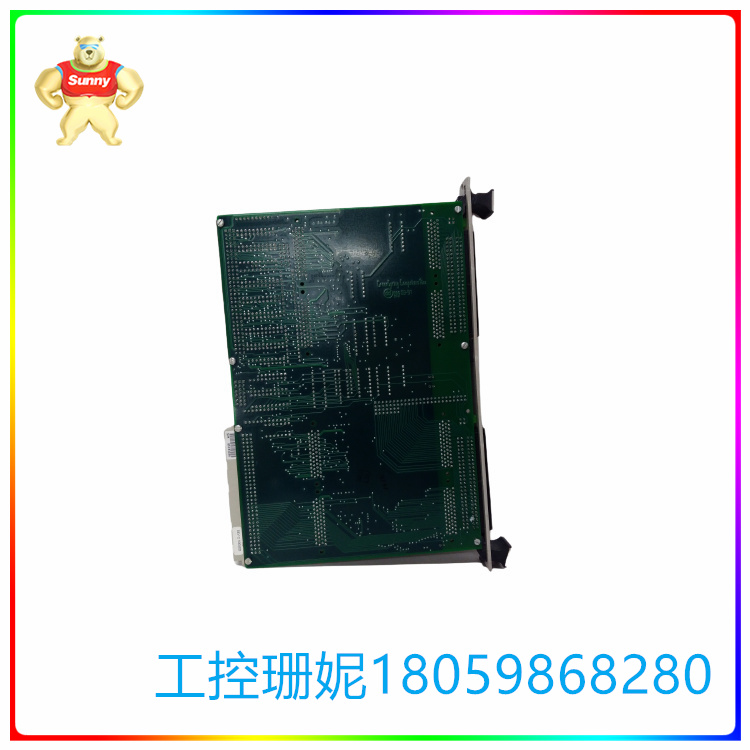

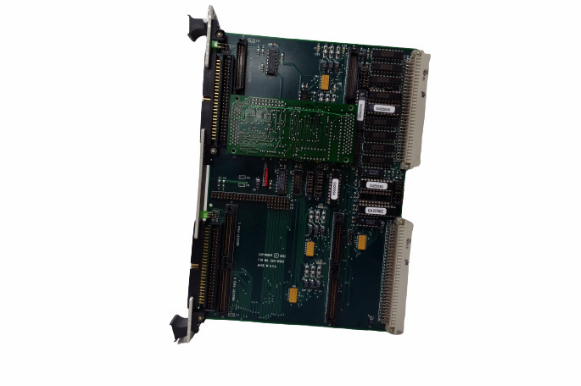

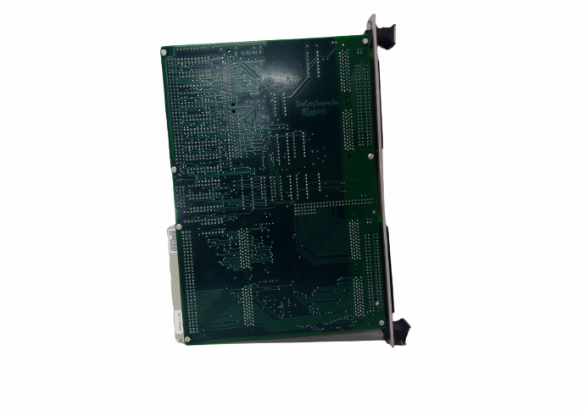

320-1026C 提供机械支持和电气接口

【产品详情】

特征：

• 每个 IndustryPack 两次中断

• 前面板指示灯

• 板载备用电池

IndustryPack 模块化 I/O 组件系列的一部分。作为载板，该VIPC610为四个单高工业包或两个双高IP提供机械支持和电气接口。支持输入/输出、存储和中断功能。船上提供备用电池。每个 IndustryPack 都与一个 50 引脚扁平电缆接头连接，可通过VIPC610的前面板访问。这四个 IP 位置通常称为插槽，由字母 A、B、C 和 D 标识。A 和 C 电池组的接口与直式插座连接器配接;B 和 D 包的接口与直角连接器配接。这种布置提供了固有的应力消除。接口连接器直接安装在VME板上（而不是IP上），提供模块化和可靠的布线系统。可以在不从 VME 机箱上卸下VIPC610的情况下插入或拔出接口电缆。IP 可以卡入或卡出，而不会干扰 I/O 布线。

320-1026C 提供机械支持和电气接口

【英文介绍】

Features:

Each IndustryPack is interrupted twice

Front panel indicator

Onboard backup battery

IndustryPack Part of a series of modular I/O components. As a carrier board, the VIPC610 provides mechanical support and electrical interfaces for four single-height industrial packages or two dual-height ips. Support input/output, storage and interrupt functions. Spare batteries are provided on board. Each IndustryPack is connected to a 50-pin flat cable connector that is accessible through the front panel of the VIPC610. These four IP locations are commonly referred to as slots and are identified by the letters A, B, C, and D. The A and C battery pack interfaces are fitted with straight socket connectors; The interfaces of packages B and D are fitted with right-angle connectors. This arrangement provides inherent stress relief. The interface connectors are mounted directly on the VME board (rather than the IP), providing a modular and reliable cabling system. You can insert or remove the interface cable without removing the VIPC610 from the VME chassis. IP can be plugged in or out without interfering with I/O wiring.

320-1026C 提供机械支持和电气接口
