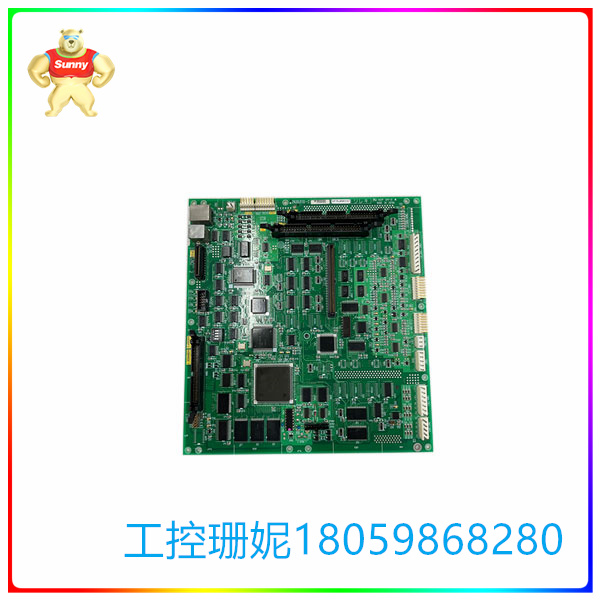

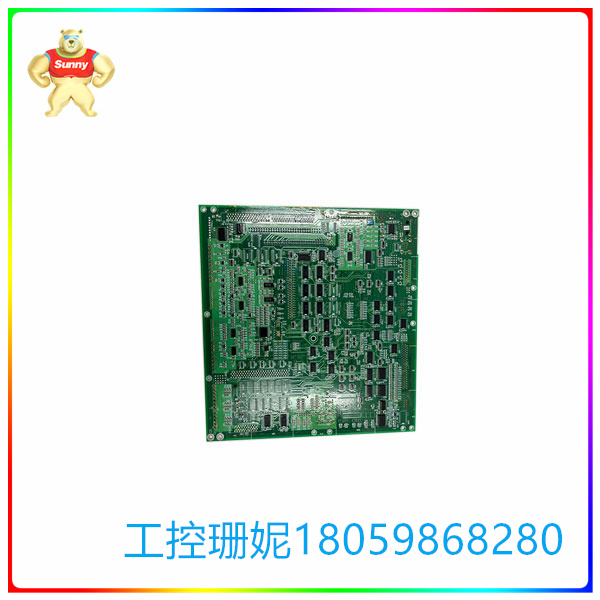

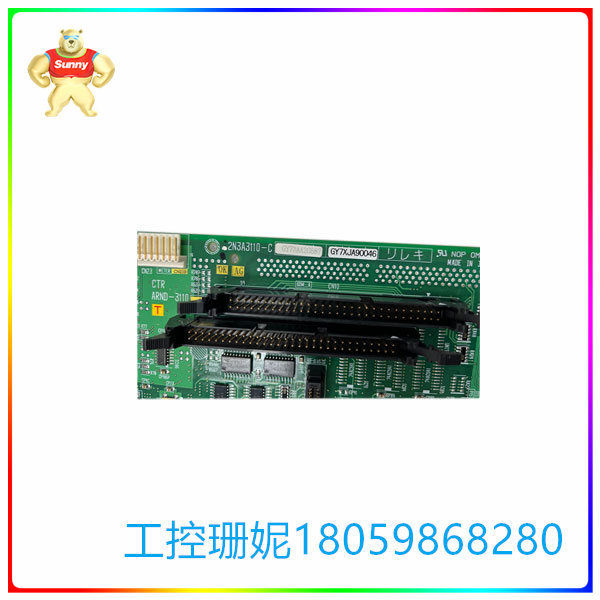

Toshiba 2N3A3110-C  装配控制器板

【产品详情】

厂商：TOSHIBA

型号：2N3A3110-C

封装：SOP8

输入电压范围：4.5V-18V

输出电压范围：0.8V-16V

输出电流：3A

开关频率：500kHz

工作温度范围：-40°C至+85°C

东芝模块TOSHIBA 2N3A3110-C 安装调试

2N3A3110-C

.确保2N3A3110-C 在设定地址前完成电力排线

.2N3A3110-C 先送内机电源再送外机电源，如果在开启室内机之前开启室外机，外机P.C.板上7段显示码会显示E19，直至开启室内机电源。

.自动寻址可能会花费十分钟时间（正常为5分钟）

.自动寻址要求在室外机操作。（仅打开电源不能自动寻址。）

.自动寻址会使用到室外机P.C.板界面上的SW15按键

1.首先送上室内机电源，然后再送室外机电源。

2.电源送上后确认室外主机P.C.板界面上7段显示板显示 U.1.L08(此时U.1.闪烁)

3.按下SW15（7段显示板有了变化松开，正常3秒左右）开始自动寻址(通常为5分钟)。

4.7段显示指示Auto1然后Auto2到Auto3

指示 U.1.—(U.1. 闪烁)开始在显示器上闪烁后。闪烁停止显示器显示 U.1.—(U.1.灯常亮)，设定完成。

Toshiba 2N3A3110-C  装配控制器板

【英文介绍】

Manufacturer: TOSHIBA

Model: 2N3A3110-C

Package: SOP8

Input voltage range: 4.5V-18V

Output voltage range: 0.8V-16V

Output current: 3A

Switching frequency: 500kHz

Operating temperature range: -40°C to +85°C

Installation and commissioning of TOSHIBA module Toshiba 2N3A3110-C

2N3A3110-C

Make sure 2N3A3110-C is wired before setting the address

2N3A3110-C Sends the internal power supply before the external power supply. If the outdoor power supply is started before the indoor power supply, the external power supply is P.C. The seven-segment display code on the board displays E19 until the indoor unit is powered on.

Auto addressing may take up to 10 minutes (normal is 5 minutes)

Automatic addressing requires outdoor unit operation. (Power on alone does not automatically address.)

Automatic addressing uses the SW15 button on the outdoor unit P.C. board interface

1. Send the power supply to the indoor unit first, and then to the outdoor unit.

2. After the power supply is sent, ensure that the seven-segment display board on the outdoor host P.C. board displays U.1.L08(U.1). Blink)

3. Press SW15 (7 segment display board has a change release, normal 3 seconds or so) to start automatic addressing (usually 5 minutes).

Segment 4.7 shows instructions Auto1 then Auto2 to Auto3

Indicator U.1. - (U.1. Blinking) After it begins to blink on the display. Blinking Stop display U.1. - (U.1. Light is on), setting is complete.
