MS-NAE5510 网络控制器 江森自控

【产品详情】

制造商：江森自控

系列： 梅塔西斯 MS

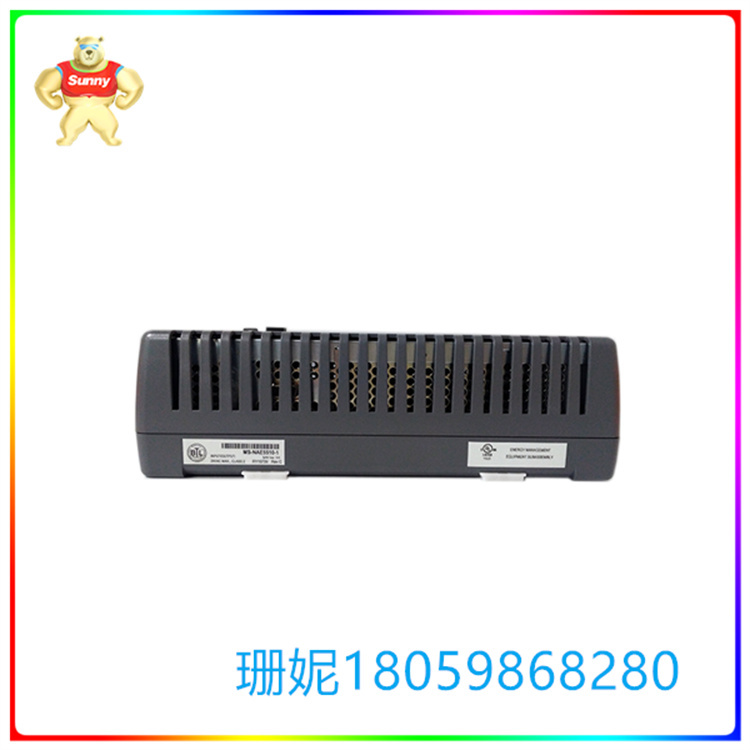

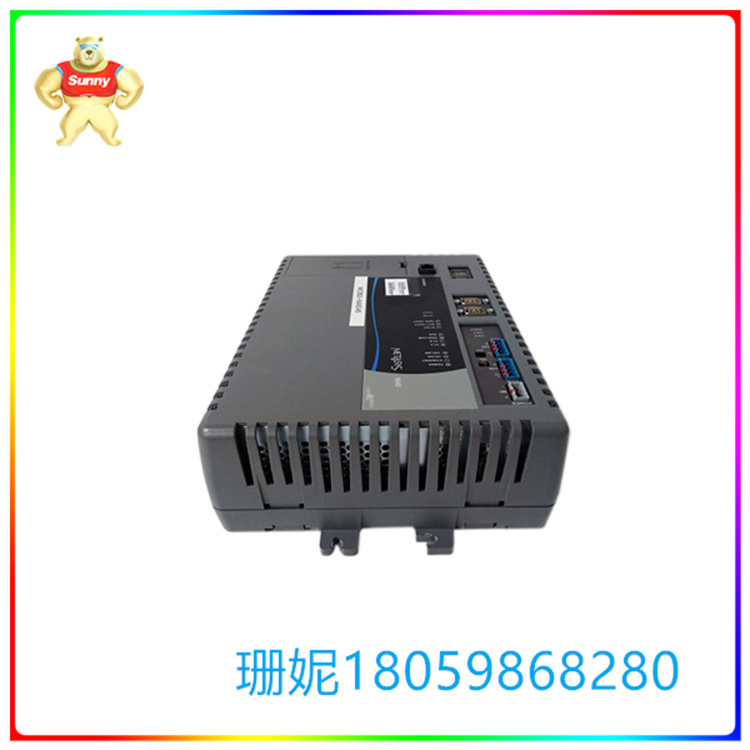

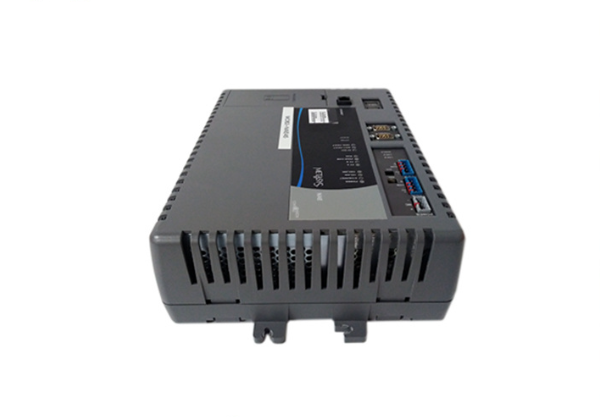

江森自控 MS-NAE5510-2 （MSNAE55102） 是一款带 N2 总线的 Metasys MS 系列网络控制器。电压的功率一般为24VAC，但它能够在20至30VAC的电压范围内工作，而互补频率为标准的50/60Hz。MS-NAE5510-2网络控制器的功耗为50VA。闪存为4GB，SDRAM为1GB。

允许与其他系统链接的 MS-NAE5510-2 网络控制器的端口包括：以太网、RS-485、RS-232 和 USB。以太网端口可以链接到正确的电缆，该电缆的末端有此连接器RJ-45，这是一个八针连接器，波特率为10Mbps，也可以是100Mbps甚至1，000Mbps。MS-NAE5510-2网络控制器有六个串行端口，其中两个是RS-485，两个是RS-232-C，最后两个是USB。RS-485端口有四种不同的波特率，范围从9.6k到76.8k。RS-232-C 端口需要一根合适的电缆和具有九个引脚的连接器。然后，MS-NAE5510-2 终端控制器上的 USB 端口必须使用适用于 USB 的连接器。

MS-NAE5510-2 网络控制器可以通过螺钉安装或放置在 DIN 导轨上安装在正在使用它的设施的墙壁上。要将 MS-NAE5510-2 终端控制器放置在 DIN 导轨上，必须首先将导轨水平放置在墙上，然后才能将本产品滑到上面。

MS-NAE5510 网络控制器 江森自控

【英文介绍】

Manufacturer: Johnson Controls

Series: Metaxis MS

Johnson Controls MS-NAE5510-2 (MSNAE55102) is a Metasys MS series network controller with N2 bus. The power of the voltage is generally 24VAC, but it is capable of operating in the voltage range of 20 to 30VAC, while the complementary frequency is standard 50/60Hz. The power consumption of the MS-NAE5510-2 network controller is 50VA. The flash memory is 4GB and the SDRAM is 1GB.

Ports for the MS-NAE5510-2 network controller that allow links to other systems include Ethernet, RS-485, RS-232, and USB. The Ethernet port can be linked to the right cable, and at the end of that cable is this connector RJ-45, which is an eight-pin connector with a baud rate of 10Mbps, or it can be 100Mbps or even 1,000 Mbps. The MS-NAE5510-2 network controller has six serial ports, two of which are RS-485, two are RS-232-C, and the last two are USB. The RS-485 port has four different baud rates ranging from 9.6k to 76.8k. The RS-232-C port requires a suitable cable and a connector with nine pins. Then, the USB port on the MS-NAE5510-2 terminal controller must use a connector suitable for USB.

The MS-NAE5510-2 network controller can be mounted by screws or placed on a DIN rail on the wall of the facility where it is being used. To place the MS-NAE5510-2 terminal controller on a DIN rail, the rail must first be placed horizontally on the wall before this product can be slid onto it.

MS-NAE5510 网络控制器 江森自控
