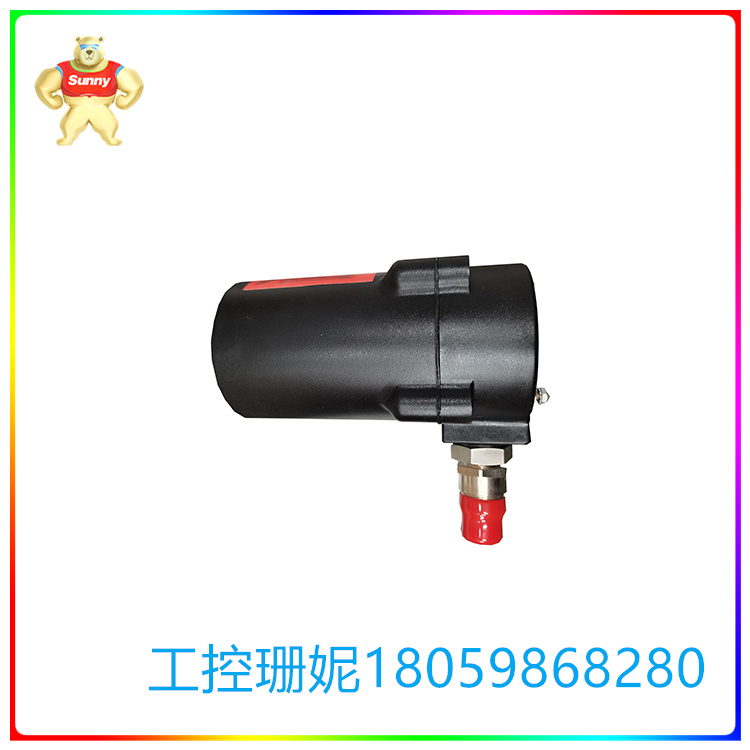

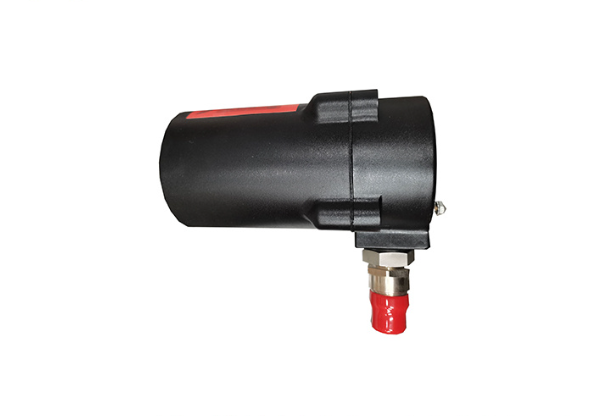

85UVF1-1QD 带有内部继电器的 一体化火焰检测器

【产品详情】

Fireye生产的Phoenix 85UVF/IRF系列火焰检测器是应用了固态火焰检测传感器的微处理器设备。

它设有一个可以自动设定ON/OFF （有火/无火）门槛值的内部继电器，因此可以取消远程放大器

或者火焰开关。

Phoenix火检探头检测目标火焰产生的调制振幅（即火焰闪烁特性），以检测宽广的频率。在探头

的设定程序中，目标火焰的振幅将会与最佳的ON/OFF值一起被自动储存。相应适合的传感器增

益也将被自动选取。探头兼有全部自诊断和电子自检功能。

Phoenix 85UVF/IRF因为检测元件和适用危险区不同级别的认证不同而分成多种型号。请参看第3

页上Table 1总览表格和产品认证。

Phoenix 85UVF/IRF火焰探头需24Vdc供电，通过8针电气快拆接头与电缆连接（QD型号）。还有

标准4-20mA火焰强度信号输出。

注意: QD型号的接线形式改为电气快拆接头连接，替代了原有的自带3米长电缆的探头型

号。QD探头（相应电缆型号为59-546-X）可直接应用于Class I Division 2危险区。因而取消

了“EX”型号，应用于Ex II 2 G/D 类危险区的“CEX”型号保留不变。

Phoenix 85UVF 自检探头可检测295-340nm波长的紫外线。Phoenix 85UVF1-1QDK3和85UVF1-1CEXK3火检探头是标准的Phoenix产品的衍生，使用先进的光学滤镜。该滤镜调节了光学灵敏度，可

探测310nm到500nm波长的可见光。

典型应用: 烟道补燃器、工业燃气燃烧器、炼油设备、低NOx燃烧器、废气处理装置以及焚烧炉。

K3系列火检探头特别适合检测钢铁厂的可见光射线，例如高炉煤气和焦炉煤气的的燃烧。

Phoenix 85IRF自检探头可检测830-1100nm波长的红外线。适用于烟道补燃器、工业燃气燃烧器、

炼油设备的点火系统、低NOx的检测系统，以及连续运行和非连续运行的燃烧器。

典型应用: 烟道补燃器、工业燃油燃烧器，炼油设备，费油回收装置和焚烧炉。

注意: 因本系列探头都配有固态传感器，所以针对多种燃料火焰都有很好的性能。例如UV型的应

用在气体火焰工况下，但也可以用于油火焰包括重油火焰。当然，为求得100%满意的效果还需经

过试验才可。

85UVF1-1QD 带有内部继电器的 一体化火焰检测器

【英文介绍】

Fireye's Phoenix 85UVF/IRF series flame detectors are microprocessor devices with solid-state flame detection sensors.

It has an internal relay that automatically sets the ON/OFF (fire/no fire) threshold, so the remote amplifier can be cancelled

Or a flame switch.

The Phoenix fire detector detects the modulated amplitude (i.e. flame flicker characteristics) generated by the target flame to detect a wide range of frequencies. In-process probe

The amplitude of the target flame will be automatically stored along with the optimal ON/OFF value. Appropriate sensors are added

Benefits will also be automatically selected. The probe has full self-diagnostic and electronic self-test functions.

The Phoenix 85UVF/IRF is divided into different models due to different levels of certification for detection components and applicable hazard areas. Please refer to number 3

Table 1 on the page summarizes the form and product certification.

The Phoenix 85UVF/IRF flame probe requires 24Vdc power and is connected to a cable via an 8-pin electrical quick-release connector (QD model). In addition

Standard 4-20mA flame intensity signal output.

Note: The wiring form of the QD model is changed to an electrical quick-release connector connection, replacing the original probe type with a 3-meter long cable

number The QD probe (corresponding cable model 59-546-X) can be directly applied to Class I Division 2 danger areas. Thus cancelled

With the "EX" model, the "CEX" model used in the Ex II 2 G/D danger zone remains unchanged.

The Phoenix 85UVF self-test probe detects ultraviolet light at wavelengths from 295-340nm. The Phoenix 85UVF1-1QDK3 and 85UVF1-1CEXK3 fire detectors are variants of the standard Phoenix products and use advanced optical filters. The filter adjusts the optical sensitivity to be

Detection of visible light at wavelengths from 310nm to 500nm.

Typical applications: flue burners, industrial gas burners, oil refining equipment, low NOx burners, waste gas treatment units, and incinerators.

The K3 series probes are particularly suitable for detecting visible light rays in steel plants, such as the combustion of blast furnace gas and coke oven gas.

The Phoenix 85IRF self-test probe can detect infrared at wavelengths of 830-1100nm. Suitable for flue filler burner, industrial gas burner,

Ignition systems for refining equipment, low NOx detection systems, and burners for continuous and non-continuous operation.

Typical applications: flue burners, industrial fuel burners, refining equipment, waste oil recovery units and incinerators.

Note: Because this series of probes are equipped with solid state sensors, they have good performance against a variety of fuel flames. Such as UV type response

Used in gas flame conditions, but can also be used for oil flame including heavy oil flame. Of course, to get 100% satisfactory results still need to go through

Only after testing.
