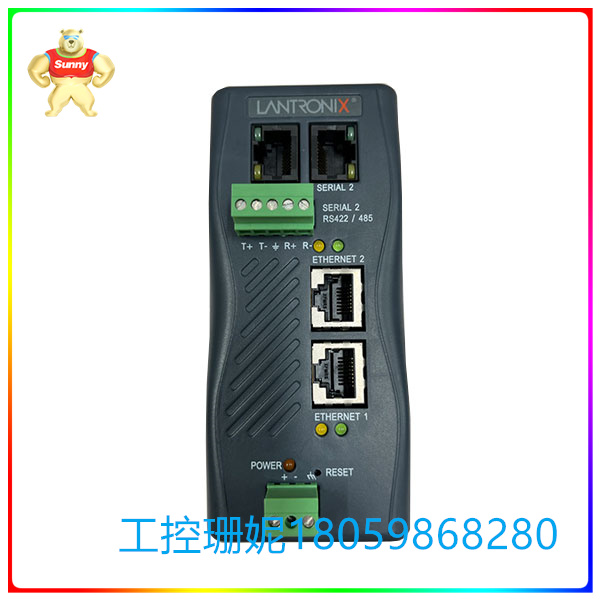

080-332-000-R 以太网工业设备服务器

【产品详情】

DIN导轨安装外形规格串行到以太网工业设备服务器，具有工业协议

将企业（ERP，MES）系统连接到工厂车间设备，而不会干扰现有的控制网络

允许远程固件升级，节省手动升级的资金和时间

IAP版本支持可安装的工业通信协议

可配置串行接口支持 RS-232、RS-422 或 RS-485

10 基本 T/100 基本 TX 以太网 （RJ45）

隔离的串行和以太网端口

符合 RoHS 标准

XPress DR 和 XPress™ DR-IAP 设备服务器几乎允许任何串行设备连接到新的或现有的以太网网络。

通过封装串行数据并通过以太网传输，XPress DR/DR-IAP允许通过以太网建立虚拟串行链路。通过使用这些装置，现在可以在工厂内、整个设施或整个全球企业中扩展有限距离、点对点和直接串行连接。

当与OPC服务器结合使用时，大多数基于Windows的HMI，SCADA和基于PC的控制应用程序都可以完全访问所连接设备中的信息。现有的基于 COM 端口的 Windows 应用程序可以使用我们的 Com 端口重定向器软件访问支持网络的设备。重定向器软件允许创建虚拟串行端口，这些端口可以通过以太网映射到远程设备服务器，并连接到XPress DR和XPress DR-IAP。®®

XPress DR-IAP可安装的通信驱动程序允许对各种工业通信协议的特定支持。借助对这些协议的本机支持，以前只允许一个连接的设备现在可以同时支持多个连接。

灵活的配置选项允许使用串行端口在本地设置设备，或使用Telnet或通用Web浏览器通过以太网远程设置设备。设备安装程序™1，一个基于 Windows 的配置软件，简化了安装和配置，允许访问 Web 管理器和 Telnet 通信，并通过网络 ping 连接的设备。闪存提供免维护的非易失性存储，并允许将来进行系统升级。®

XPress DR 和 XPress DR-IAP 采用坚固的 DIN 导轨安装外壳封装，具有 2000V 电气隔离、1500V 以太网隔离、0° 至 60°C 宽工作范围和 9-30VDC/9-24VAC 电源输入，几乎是任何工业应用的理想选择。

1DeviceInstaller可免费下载。

080-332-000-R 以太网工业设备服务器

【英文介绍】

DIN Rail mount profile specifications serial to Ethernet industrial equipment server, with industrial protocol

Connect enterprise (ERP, MES) systems to plant floor equipment without interfering with existing control networks

Allows remote firmware upgrades, saving money and time for manual upgrades

The IAP version supports installable industrial communication protocols

Configurable serial interface support RS-232, RS-422 or RS-485

10 Basic T/100 Basic TX Ethernet (RJ45)

Isolated serial and Ethernet ports

Comply with RoHS standards

XPress DR And XPress™ DR-IAP device servers allow virtually any serial device to connect to a new or existing Ethernet network.

By encapsulating serial data and transmitting it over Ethernet, XPress DR/DR-IAP allows a virtual serial link to be established over Ethernet. By using these devices, it is now possible to extend limited-distance, point-to-point, and direct serial connections within the factory, throughout the facility, or throughout the global enterprise.

When used in conjunction with an OPC server, most Windows-based HMI, SCADA, and PC-based control applications have full access to information in the connected device. Existing COM port-based Windows applications can access network-enabled devices using our Com port Redirector software. The redirector software allows the creation of virtual serial ports that can be mapped over Ethernet to remote device servers and connected to XPress DR And XPress DR-IAP. ® ®

The XPress DR-IAP installable communication drivers allow specific support for various industrial communication protocols. With native support for these protocols, devices that previously allowed only one connection can now support multiple connections simultaneously.

Flexible configuration options allow the device to be set up locally using a serial port, or remotely over Ethernet using Telnet or a universal Web browser. Device Installer ™1, a Windows-based configuration software that simplifies installation and configuration, allows access to Web manager and Telnet communication, and ping connected devices over a network. Flash provides maintenance-free, non-volatile storage and allows for future system upgrades. ®

The XPress DR And XPress DR-IAP are packed in rugged DIN rail mounting housing with 2000V electrical isolation, 1500V Ethernet isolation, a wide operating range of 0° to 60°C, and 9-30VDC/9-24VAC power inputs. Ideal for almost any industrial application.

1DeviceInstaller can be downloaded for free.
