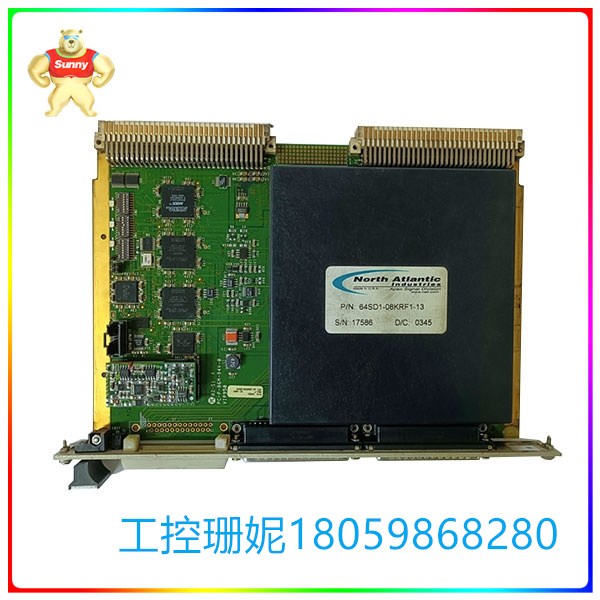

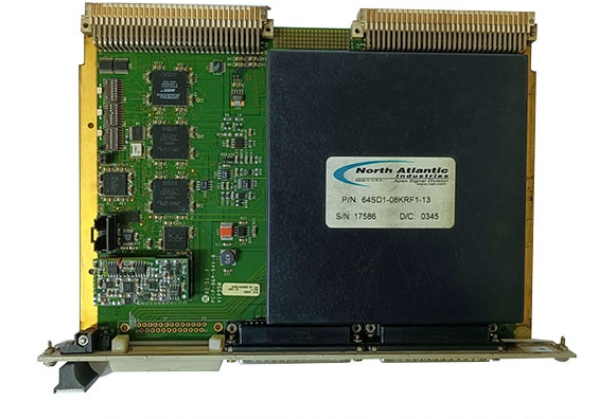

64SD1-08KRF1-13 直流接收器

【产品详情】

品牌:NAI

型号:64SD1-08KRF1-13

产地:USA

特征源和汇各在标称12至24伏电压下运行直流接收器版本也与5伏TTL兼容 32个可配置输入/输出电路、输入和输出可以混合在区块上可复位自保护电路软件可配置高级诊断这些模块有32个相同的离散输入/输出电路，每个电路都很容易配置为输入、输出或带反馈的输出。这灵活性提供了最大的设计和应用效率。当用作输出时，每个电路都包含内置保护，在允许短时浪涌的同时保护驾驶员。它还可以保护防止接线错误引起的短路负载。块LED验证块操作和CPU通信是否正确。逻辑侧的单个电路LED指示灯指示上存在电压输入和输出：本数据表总结了有关块安装的信息，配置和诊断。您的主要参考应该是离散和模拟块用户的手册它包括块安装和安装的详细说明配置有关系统和通信的更多信息，包括总线规格，请参阅输入/输出系统和通信手册。这些模块与手持式显示器型号兼容仅限IC66*HHM501。请注意，手持式显示器IC66*HHM501版本A（旧版本）仅在以下情况下显示32电路块的所有参考：它被制成“活动块”。对于IC600系列PLC，总线控制器可以是模型IC66*CBB902或CBB 903，任何版本；或型号IC66*CBB900或CBB901 1.3版或更高版本。如果用于控制总线交换模块的操作，BSM需要IC66*BSM021。挡块必须在18伏或以上电压下工作。

64SD1-08KRF1-13 直流接收器

【英文介绍】

Brand :NAI

Model :64SD1-08KRF1-13

Origin :USA

Feature source and sink each operate at nominal 12 to 24 volts DC receiver versions are also compatible with 5-volt TTL 32 configurable input/output circuits, inputs and outputs can be mixed on blocks reconfigurable self-protection circuit software configurable advanced diagnostics These modules have 32 identical discrete input/output circuits, Each circuit is easily configured as an input, output, or output with feedback. This flexibility provides maximum design and application efficiency. When used as an output, each circuit contains built-in protection that protects the driver while allowing short surges. It also protects against short-circuit loads caused by wiring errors. The block LED verifies that the block operation and CPU communication are correct. A single circuit LED indicator on the logical side indicates the presence of voltage input and output: this data sheet summarizes information about block installation, configuration and diagnosis. Your primary reference should be the manual for discrete and analog block users, which includes detailed instructions for block installation and installation configuration For more information about the system and communications, including bus specifications, see the Input/Output System and Communications Manual. These modules are compatible with handheld display models IC66*HHM501 only. Please note that the handheld display IC66*HHM501 version A (older version) only displays all references to the 32 circuit block if it is made into an "active block". For IC600 series PLC, the bus controller can be model IC66*CBB902 or CBB 903, any version; Or model IC66*CBB900 or CBB901 version 1.3 or later. If used to control the operation of the bus switch module, the BSM requires IC66*BSM021. The stop must operate at 18 volts or more.

64SD1-08KRF1-13 直流接收器
