61C350 直流模拟电源轨模块 Reliance Electric  I/O模块

【产品详情】

61C350是信实电气创建的I/O模块。它也可能与Asea Brown Boveri或Baldor Reliance一起生产，具体取决于其生产日期。这些公司不再维护此模块，但AX Control试图保留它们的库存。

61C350 是一款 0-10 伏直流模拟电源轨模块，专为 AutoMax DCS 生产。该型号配有端子条，不会导致现场接线问题。

61C350的面板具有许多功能。它有一个 12 点公输入连接。它有两个标记为 PWR OK 和 COM OK 的 LED。它具有 2 通道输入和 2 通道输出模拟 I/O，具有 12 个连接。这些连接分为 3 个组，并以数字标记为 1-12。这些数字标签旁边是单词 V-IN 或 Common。3、6、9 和 12 空格中的公共资源没有用单词标记。它有一个标有 DC+ DC- 24VDC 和 L2 L1 120VAC 的输入电源连接。有一个 250 保险丝类型，旁边有一个盒子，告诉用户使用 75mA 和 24VDC 和 25mA 和 120 VAC。

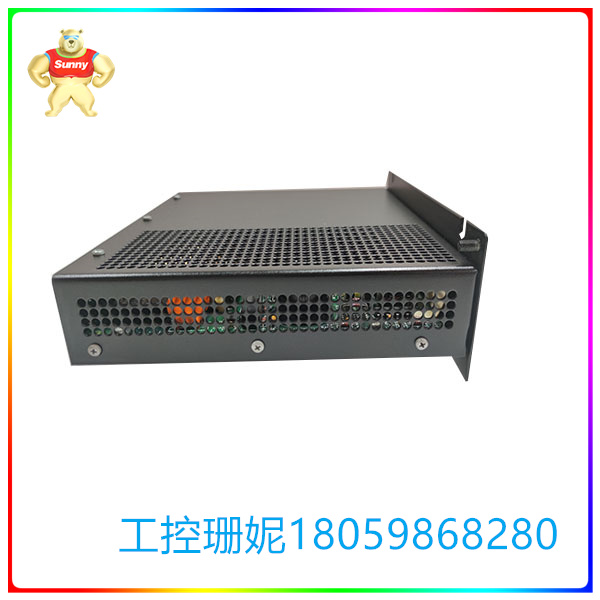

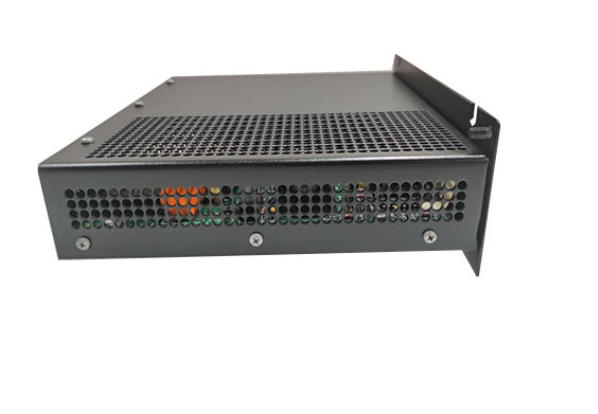

该模块的背面有一个大的安装支架，可以使用四个螺钉将其安装到位。61C350 底部还有工厂钻孔，用于促进气流流向设备的内部电路。

关于 61C350 的常见问题

我可以在 61C350 手册中找到什么？

61C350 的手册是 2 进/2 出 0-10 伏模拟轨道模块手册，手册 J-3672。在手册中，您将找到 61C350 的机械和电气说明、如何安装 61C350、对 Reliance 61C350 进行编程以及诊断和排除 Reliance 61C350 的故障。如需手册副本，请索取 61C350 手册的链接。

61C350与什么一起使用？

61C350通常与几件事一起使用。61C350使用电位计，阀门执行器，压力或流量传感器以及仪表。61C350 在驱动控制和过程控制系统中都与它们一起使用。

61C350上的模拟输入通道有什么作用？

61C350 具有两个模拟输入通道，可将 0-10V 模拟输入信号转换为 0 到 4095 之间的比例值，相当于 12 位数字数据。

61C350 上的最大源 KVA 是多少？

61C350的最大KVA为10。

61C350 直流模拟电源轨模块 Reliance Electric  I/O模块

【英文介绍】

61C350 is an I/O module created by Reliance Electric. It may also be produced with Asea Brown Boveri or Baldor Reliance, depending on its production date. These companies no longer maintain this module, but AX Control tries to keep their inventory.

The 61C350 is a 0-10 volt DC analog power rail module specifically produced for AutoMax DCS. This model is equipped with terminal strips that do not cause field wiring problems.

The 61C350 panel has many features. It has a 12-point public input connection. It has two leds labeled PWR OK and COM OK. It has 2-channel input and 2-channel output analog I/O with 12 connections. These connections are divided into 3 groups and are numerically labeled 1-12. Next to these number labels is the word V-IN or Common. Public resources in Spaces 3, 6, 9, and 12 are not marked with words. It has an input power connection labeled DC+ DC-24VDC and L2 L1 120VAC. There is a 250 fuse type with a box next to it that tells the user to use 75mA and 24VDC and 25mA and 120 VAC.

The back of the module has a large mounting bracket that can be mounted in place using four screws. The 61C350 also has factory holes in the bottom to facilitate airflow to the device's internal circuitry.

Faqs about 61C350

What can I find in the 61C350 manual?

The 61C350 manual is the 2-in / 2-out 0-10 Volt Analog Track Module manual, Manual J-3672. In the manual, you will find mechanical and electrical instructions for the 61C350, how to install the 61C350, program the Reliance 61C350 and diagnose and troubleshoot the Reliance 61C350. For a copy of the manual, please request the link to the 61C350 manual.

What is 61C350 used with?

61C350 is often used in conjunction with several things. 61C350 uses potentiometers, valve actuators, pressure or flow sensors, and gauges. 61C350 is used with them in both drive control and process control systems.

What does the analog input channel on 61C350 do?

The 61C350 features two analog input channels that convert 0-10V analog input signals to a scale value between 0 and 4095, equivalent to 12 bits of digital data.

What is the maximum source KVA on 61C350?

The maximum KVA of 61C350 is 10.
