61C22A Reliance 轨道 I/O 系统

【产品详情】

61C22是信实电气制造的本地I/O头。

61C22 是专为 AutoMax DCS 上的轨道 I/O 系统创建的轨道安装式数字本地磁头。当在轨道式 I/O 系统中使用时，允许定制以满足系统要求。四个不同的数字 I/O 能够与设备上的单个 I/O 端口通信。然后，可以连接到远程I/O头的数字I/O数量可以从64个增加到256个。该模块还预装了自己的电源，能够为四个数字I/O模块的总电源轨供电。

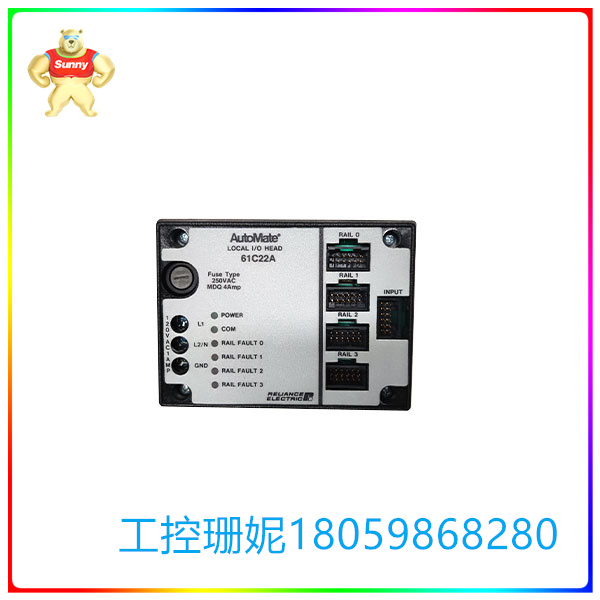

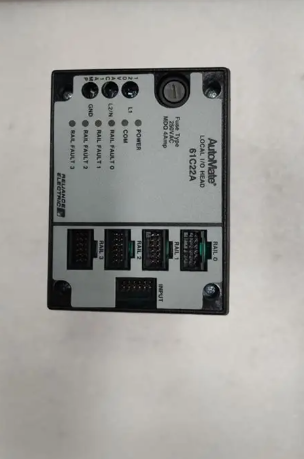

61C22的面板上有很多组件。它有一个 250VAC MDQ 4 安培可更换保险丝室。它有一组 LED 指示灯，标记为电源、COM、轨道故障 0、轨道故障 1、轨道故障 2 和轨道故障 3。有五个 12 点公头端口标记为 RAIL 0、RAIL 1、RAIL 2、RAIL 3 和 INPUT。其中四个端口是 I/O 通信端口，最后一个是远程磁头通信端口。

61C22 的背面有一个安装支架，可用于将模块放在机架组件上。该模块的顶部和侧面都有工厂钻孔。这些孔对模块至关重要，因为它们允许空气流入模块的内部电路。

关于 61C22 的常见问题

61C22使用什么系统？

61C22 使用 AutoMate 20/20E I/O 系统。61C22 围绕定制 LSI 芯片构建，以确保可靠性和提高速度。

61C22有什么作用？

61C22 是一款通信多路复用器，允许四个输入/输出与 20C20 的 AutoMate 61/22E 处理器单元上的 I/O 通信端口通信。

当 Reliance 61C22 上的“COM”LED 亮起时，这意味着什么？

当“COM”指示灯亮起时，处理器和61C22上的本地磁头之间正在进行通信。

61C22A Reliance 轨道 I/O 系统

【英文介绍】

61C22 is a local I/O head manufactured by Reliance Electric. It may also have been sold by Asea Brown Boveri and Baldor Reliance.

The 61C22 is a track-mounted digital local head created specifically for track I/O systems on AutoMax DCS. When used in orbital I/O systems, customization is allowed to meet system requirements. Four different digital I/ OS are able to communicate with a single I/O port on the device. The number of digital I/ OS that can be connected to remote I/O headers can then be increased from 64 to 256. The module also comes pre-installed with its own power supply, capable of powering the main power rail of the four digital I/O modules.

There are many components on the 61C22 panel. It has a 250VAC MDQ 4 amp replaceable fuse room. It has a set of LED indicators labeled Power, COM, Track failure 0, track failure 1, track failure 2, and track failure 3. There are five 12-point male ports labeled RAIL 0, RAIL 1, RAIL 2, RAIL 3, and INPUT. Four of the ports are I/O communication ports, and the last one is remote head communication port.

The back of the 61C22 has a mounting bracket that can be used to place the module on the rack assembly. The module has factory drill holes on the top and sides. These holes are crucial to the module because they allow air to flow into the module's internal circuitry.

Faqs about 61C22

What system does 61C22 use?

61C22 uses the AutoMate 20/20E I/O system. The 61C22 is built around custom LSI chips to ensure reliability and increase speed.

What does 61C22 do?

The 61C22 is a communications multiplexer that allows four inputs/outputs to communicate with the I/O communication port on the 20C20's AutoMate 61/22E processor unit.

What does it mean when the "COM" LED lights up on Reliance 61C22?

When the "COM" indicator lights up, there is a communication between the processor and the local head on the 61C22.
