6DD1642-0BC0 输出模拟电压信号 输出模拟电压信号  Siemens

【产品详情】

商品编号(市售编号) 6DD1642-0BC0

产品说明 ***备件*** SIMADYN D Ausgabe-Modul EA12 模拟,8AA

产品家族 未提供

产品生命周期 (PLM) PM500:产品已完全退市

概述

特征：

在 SIMADYN D 系统中用于输出模拟电压信号

（8） 通道

输出可加载高达 10 mA 的电流

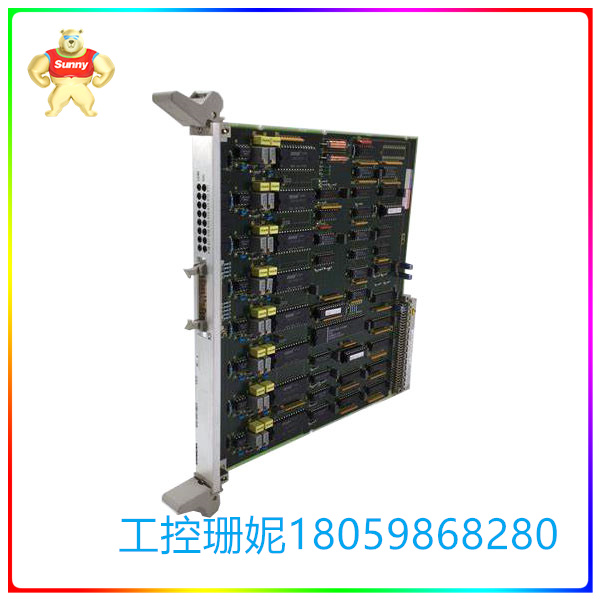

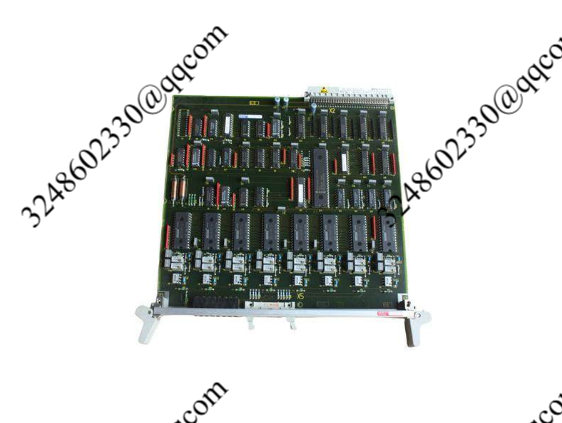

西门子 6DD1642-0BC0 EA12 模拟输出模块用于 SIMADYN D 系统，用于输出模拟电压信号（-10 至 +10V，精度：14 位或 1mV）。

这些模拟输出的地址由取决于插槽的可编程地址解码器分配。

EA12 模块有 8 个通道。信号输出路由到 20 路带状电缆连接器 X5。除了 8 个信号外，每个信号还有一个接地端子，此外还有两个接地引脚和两个屏蔽引脚。

信号也可以在双测试插座（直径 = 2.3 mm，信号和接地各一个插座）上分接，例如在系统启动时。

输出可加载高达 10 mA 的电流，并可在长达 120 秒的时间内防止短路。 注意：连接器 X5 和相关的双测试插座的总信号负载不得超过 10 mA。

可以配置各个通道的输出格式。这是通过指定一个以 2 的幂为单位的乘法因子（每个通道都有额外的）来完成的。

50 针带状电缆连接器 X6 可以忽略（如果前面板上有的话）。

6DD1642-0BC0 输出模拟电压信号 输出模拟电压信号  Siemens

【英文介绍】

Product Number (market number) 6DD1642-0BC0

Product Description *** Spare Parts *** SIMADYN D Ausgabe-Modul EA12 simulation,8AA

Product family not available

Product Life Cycle (PLM) PM500: The product has been completely removed from the market

summarize

Features:

It is used to output analog voltage signals in SIMADYN D systems

(8) Channel

The output can load up to 10 mA of current

The Siemens 6DD1642-0BC0 EA12 analog output module is used for SIMADYN D systems to output analog voltage signals (-10 to +10V, accuracy: 14 bits or 1mV).

The address of these analog outputs is assigned by a programmable address decoder depending on the slot.

The EA12 module has eight channels. The signal output is routed to the 20-way ribbon cable connector X5. In addition to the eight signals, each signal has a ground terminal, in addition to two ground pins and two shielding pins.

Signals can also be tapped in dual test sockets (diameter = 2.3 mm, one for signal and one for ground), for example during system start-up.

The output can load up to 10 mA of current and prevent short circuits for up to 120 seconds. Note: The total signal load of connector X5 and associated dual test sockets must not exceed 10 mA.

The output format of each channel can be configured. This is done by specifying a multiplication factor in a power of two (there are additional for each channel).

The 50-pin ribbon cable connector X6 can be ignored (if there is one on the front panel).
