0-60023-5 交流电源技术模块 Reliance

【产品详情】

0-60023-5 交流电源技术模块

0-60023-5是信实电气的模块，用于公司的驱动系统。这是一个信实组件。但是，由于公司结构的变化，您当前的模块最初可能是从Baldor-Reliance或Asea Brown Boveri发货的。

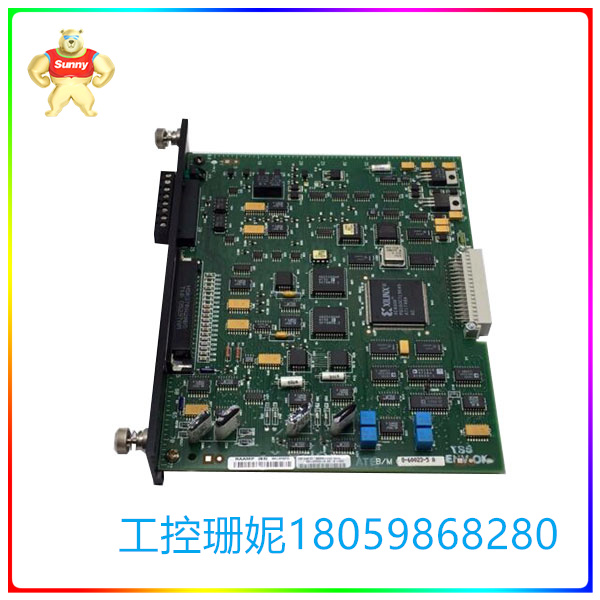

0-60023-5用作交流电源技术模块。它由一个矩形电路板组成，其组件安装在连接到面板的电路板两侧.该模块的面板部分有两个固定螺钉，一旦安装在机架系统中，就可以将其锁定到位。它有一个母电源模块接口连接器、一个绿色的“OK”LED 指示灯以及进出同步传输 COM 端口。

0-60023-5 的电路板部分包括齐纳二极管、陶瓷电容器、聚酯乙烯基电容器、高压薄膜电容器、晶体管和电阻器等组件。 它有<>多个集成电路，包括现场可编程门阵列和振荡芯片。电路板的背面主要由电阻器和电容器组成。电路板的后边缘有一个直角接口公连接器，通过两个螺钉连接。该板经过钻孔以允许在每个角处提供安装选项，并沿两个边缘标有编号的网格图案。

0-60023-5 交流电源技术模块 Reliance

【英文介绍】

0-60023-5 AC power technical module

0-60023-5 is a Reliance Electric module used in the company's drive systems. This is a reliance component. However, due to a change in corporate structure, your current module may have originally shipped from Baldor-Reliance or Asea Brown Boveri.

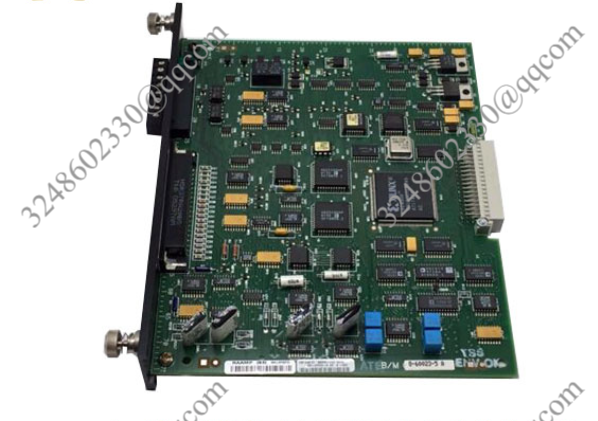

0-60023-5 Used as an AC power module. It consists of a rectangular circuit board with components mounted on both sides of the board attached to the panel. The panel portion of the module has two holding screws that lock it into place once installed in the rack system. It has a female power module interface connector, a green "OK" LED indicator, and COM ports for in-and-out synchronous transmission.

The board portion of the 0-60023-5 includes components such as Zener diodes, ceramic capacitors, polyester vinyl capacitors, high voltage film capacitors, transistors and resistors. It has <> multiple integrated circuits, including field programmable gate arrays and oscillating chips. The back of the circuit board is mainly composed of resistors and capacitors. The back edge of the board has a right Angle interface male connector, which is connected by two screws. The board is drilled to allow for installation options at each corner and is marked with a numbered grid pattern along both edges.

0-60023-5 交流电源技术模块 Reliance
