0-60007-2  驱动电源模块 具有分布式电源系统

【产品详情】

0-60007-2 驱动电源模块

Reliance 0-60007-2 是一个驱动电源模块。 这通常用于具有分布式电源系统的大功率SA3000模块。0-60007-2 的额定值为 115 VAC。通常，这被标记为Reliance组件，但也可能标有Baldor-Reliance或Asea Brown Boveri名称和/或徽标。部件号将始终反映 60007-2。

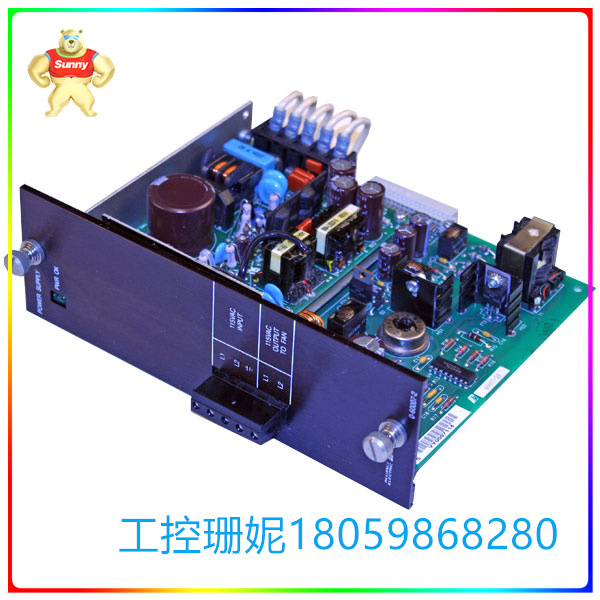

0-60007-2 的前面板连接到模块的电路板部分。面板为双宽，左上角安装有绿色 LED 指示灯。 左下边缘由带有自己盖子的四位端子条填充。小指示灯 LED 位于此组件上方。条带上的端子标记为 L1/L2 115 VAC 输入和 L1/L2 115 VAC 输出到风扇。

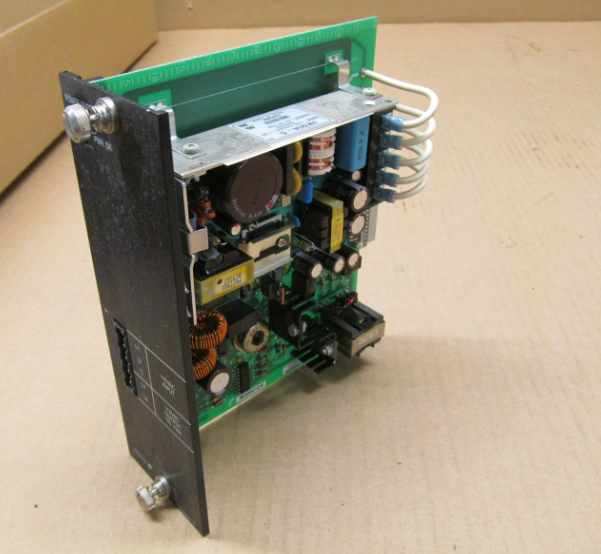

在电路板的右侧，0-60007-2由五个电感线圈、两个散热器、一个变压器以及电阻器、二极管、晶体管和电容器组成。它还可以作为额定值为 50 FPM 的 SAF 系列空气速度开关。 左侧由金属载体填充，该载体由两个变压器、电感线圈、晶体管、使用几种不同材料的高压电容器、磁盘电容器、晶体管和电阻器组成。该托架还具有一个五位连接器，其有线连接穿过电路板背面。直角连接器位于电路板的后边缘。

0-60007-2  驱动电源模块 具有分布式电源系统

【英文介绍】

0-60007-2 Drive power module

Reliance 0-60007-2 is a drive power module. This is typically used for high-power SA3000 modules with distributed power systems. The 0-60007-2 is rated at 115 VAC. Typically, this is labeled as a Reliance component, but may also be labeled with the Baldor-Reliance or Asea Brown Boveri name and/or logo. The part number will always reflect 60007-2.

The front panel of the 0-60007-2 is connected to the circuit board portion of the module. The panel is double wide with a green LED indicator in the upper left corner. The lower left edge is filled by a four-point terminal strip with its own cover. The small indicator LED is located above this component. The terminals on the strip are labeled L1/L2 115 VAC input and L1/L2 115 VAC output to the fan.

On the right side of the board, the 0-60007-2 consists of five inductors, two heat sinks, a transformer, as well as resistors, diodes, transistors, and capacitors. It can also be used as a SAF series air speed switch rated at 50 FPM. The left side is filled with a metal carrier consisting of two transformers, inductors, transistors, high-voltage capacitors using several different materials, disk capacitors, transistors, and resistors. The bracket also has a five-piece connector with a wired connection running through the back of the board. Right Angle connectors are located on the back edge of the board.

0-60007-2  驱动电源模块 具有分布式电源系统
